Furman P-2400AR Prestige Series 20A Voltage Regulator/Power Conditioner
The Furman P-2400AR is a voltage regulator for 120 (Volts) supplies. It carries 14 outlets: All 14 outlets regulated and conditioned - 12 on the rear panel and 2 on the front. AC protection is True RMS Voltage Regulation, Extreme Voltage Shutdown, Non-sacrificial protection with zero ground contamination. Maximum current rating is 20 Amps.
Filtration uses LiFT, rated 10 dB @ 10kHz, 40 dB @ 100kHz, 50 dB @ 500kHz. Voltage regulation: Regulation capture range: 97 VAC to 137 VAC. Front panel metering: LED voltmeter/ammeter displays incoming voltage and input current draw. Control is by front panel On/Off switch, Voltage meter dimmer button. It racks up with the rack ears in the box. Published dimensions are 19" W x 12" D x 3.5" H at 39 lbs. Power consumption is 13 Watts. Compliance: cETLus.
| Family | Prestige Series |
|---|---|
| Line Voltage | 120 (Volts) |
| Maximum Current Rating | 20 Amps |
| Number of Outlets | 14 |
| Number of Isolated Banks | 2 |

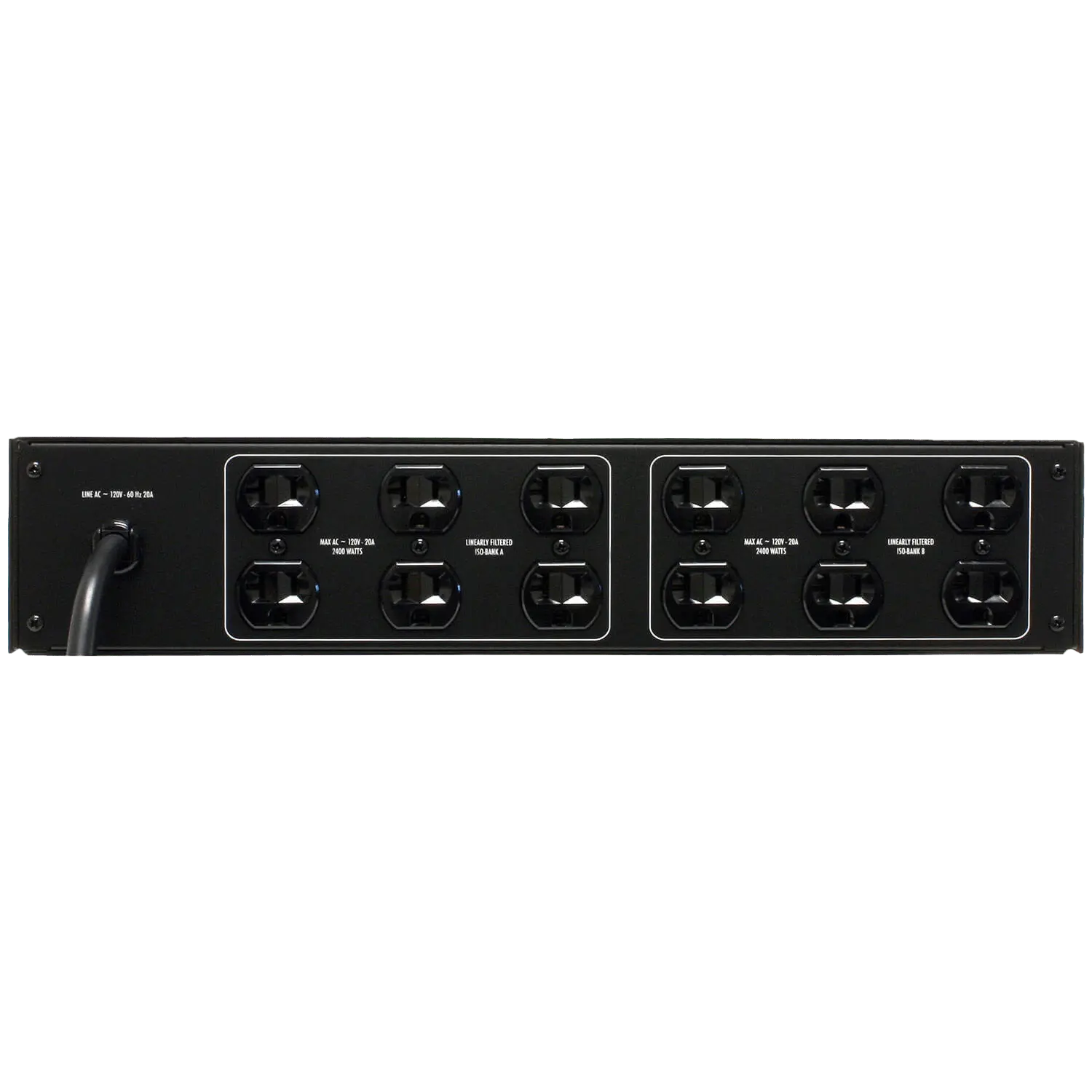

| Outlet Description | All 14 outlets regulated and conditioned - 12 on the rear panel and 2 on the front |
| AC Protection Technology | True RMS Voltage Regulation, Extreme Voltage Shutdown, Non-sacrificial protection with zero ground contamination |
| Over-Voltage Shutoff | 145 VAC |
