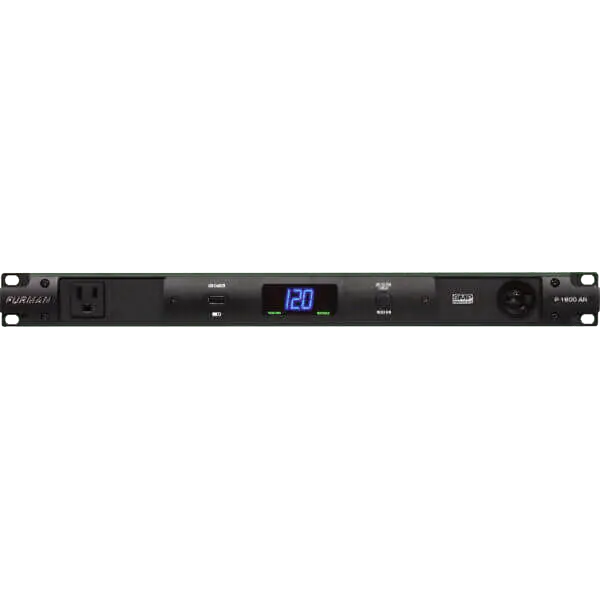

Furman P-1800 AR Prestige Series 15A Voltage Regulator/Power Conditioner
The Furman P-1800 AR is a voltage regulator for 120 (Volts) supplies. It carries 9 outlets: All 9 outlets regulated and conditioned - 8 on the rear panel and 1 on the front. AC protection is True RMS Voltage Regulation, Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination. Maximum current rating is 15 Amps.
Filtration uses LiFT, rated 10 dB @ 10kHz, 40 dB @ 100kHz, 50 dB @ 500kHz. Voltage regulation: Regulation capture range: 97 VAC to 137 VAC. Front panel metering: LED voltmeter/ammeter displays incoming voltage and output current draw. Control is by front panel On/Off switch, Voltage meter dimmer button. It racks up with the rack ears in the box. Published dimensions are 19″ W x 12.0″ D x 1.75″ H at 15 lbs. Power consumption is 5 Watts. Compliance: cETLus.
| Family | Prestige Series |
|---|---|
| Line Voltage | 120 (Volts) |
| Maximum Current Rating | 15 Amps |
| Number of Outlets | 9 |
| Number of Isolated Banks | 2 |
| Outlet Description | All 9 outlets regulated and conditioned - 8 on the rear panel and 1 on the front |
| AC Protection Technology | True RMS Voltage Regulation, Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination |
| Over-Voltage Shutoff | 140 VAC |
