FSR DV-HDA4K 4K HDMI Distribution Amplifiers
Both of these do the same job at two sizes: take one 4K HDMI source and put it on every display in the room at once. HDMI 2.0b, HDCP 2.2, 18 Gbps and 4K 4:4:4 with HDR mean the signal is not quietly downgraded on the way through.
The useful part is what happens when the displays do not match. Each output can be set to bypass or to downscale 4K to 1080p, and EDID management stops one older screen from dragging the whole system down to its resolution. Both extract audio from the HDMI source to S/PDIF and analogue outputs. Order the -12AUD for two displays, the -14AUD for four.
- ResolutionUp to 4K x 2K at 50/60Hz 4:4:4 with HDR
- Product Type4K HDMI distribution amplifier

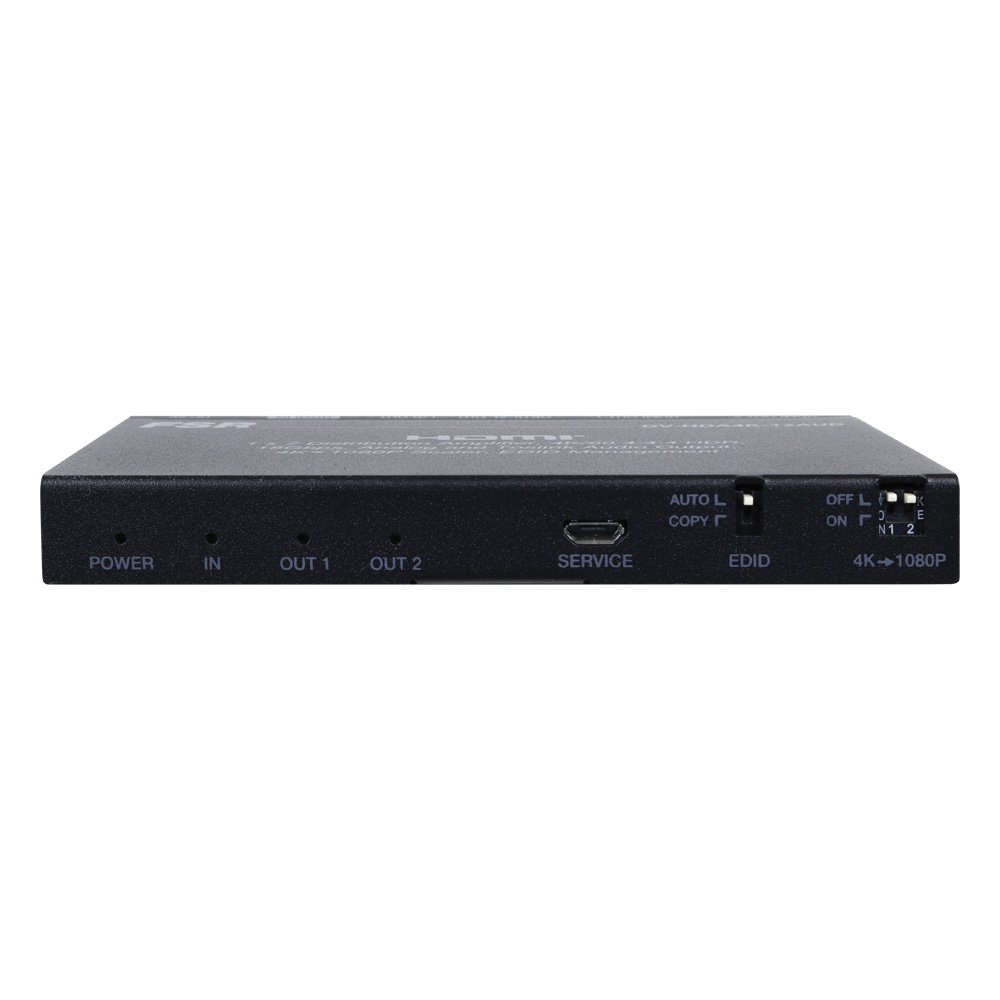

- DV-HDA4K-12AUD1 in, 2 out

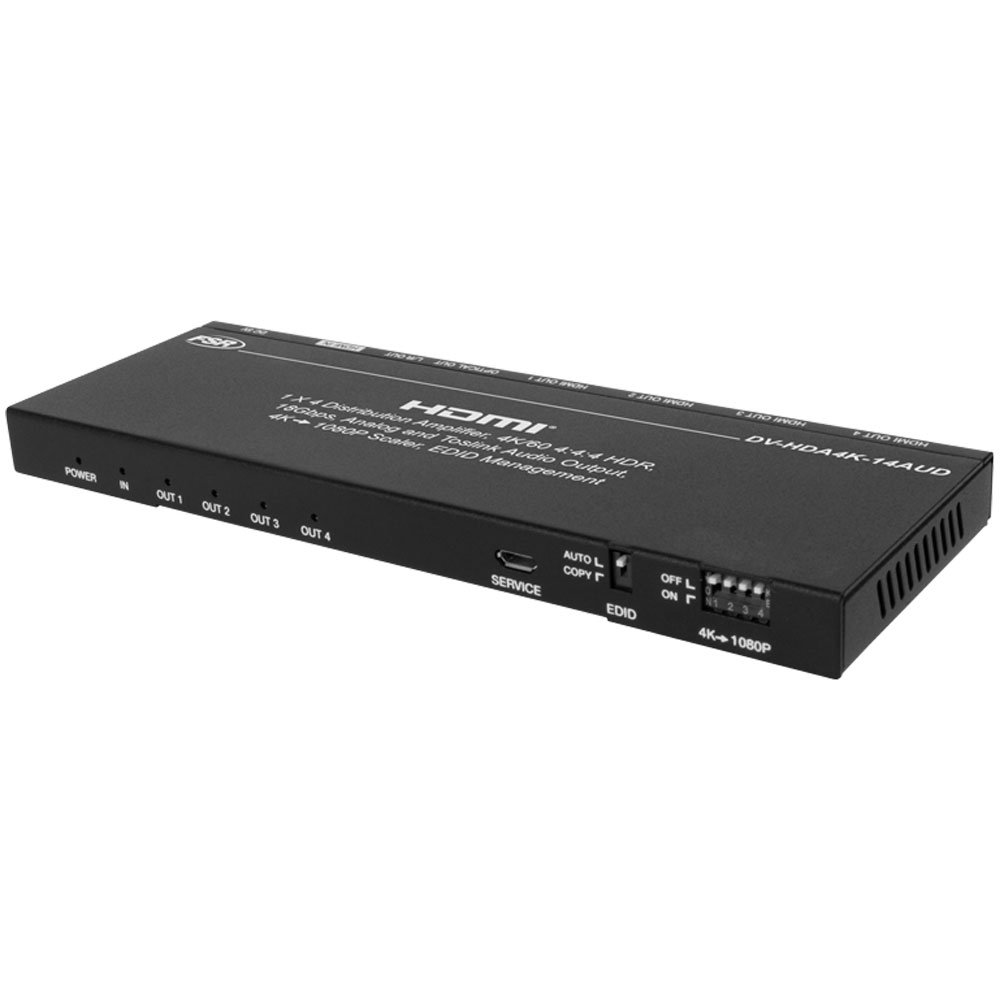

- DV-HDA4K-14AUD1 in, 4 out
- StandardsHDMI 2.0b, HDCP 2.2 and HDCP 1.4
| Product Type | 4K distribution amplifier |
|---|---|
| DV-HDA4K-12AUD | 1 in, 2 out |
| DV-HDA4K-14AUD | 1 in, 4 out |
| Standards | HDMI 2.0b, HDCP 2.2 and HDCP 1.4 |
| Bandwidth | 18 Gbps |
| Resolution | Up to 4K x 2K at 50/60Hz 4:4:4 with HDR |
| Audio | S/PDIF digital and analogue audio extraction from the HDMI source |
| Scaling | Per-output bypass or 4K to 1080p downscaling |
| EDID | EDID management for mixed-capability displays |
