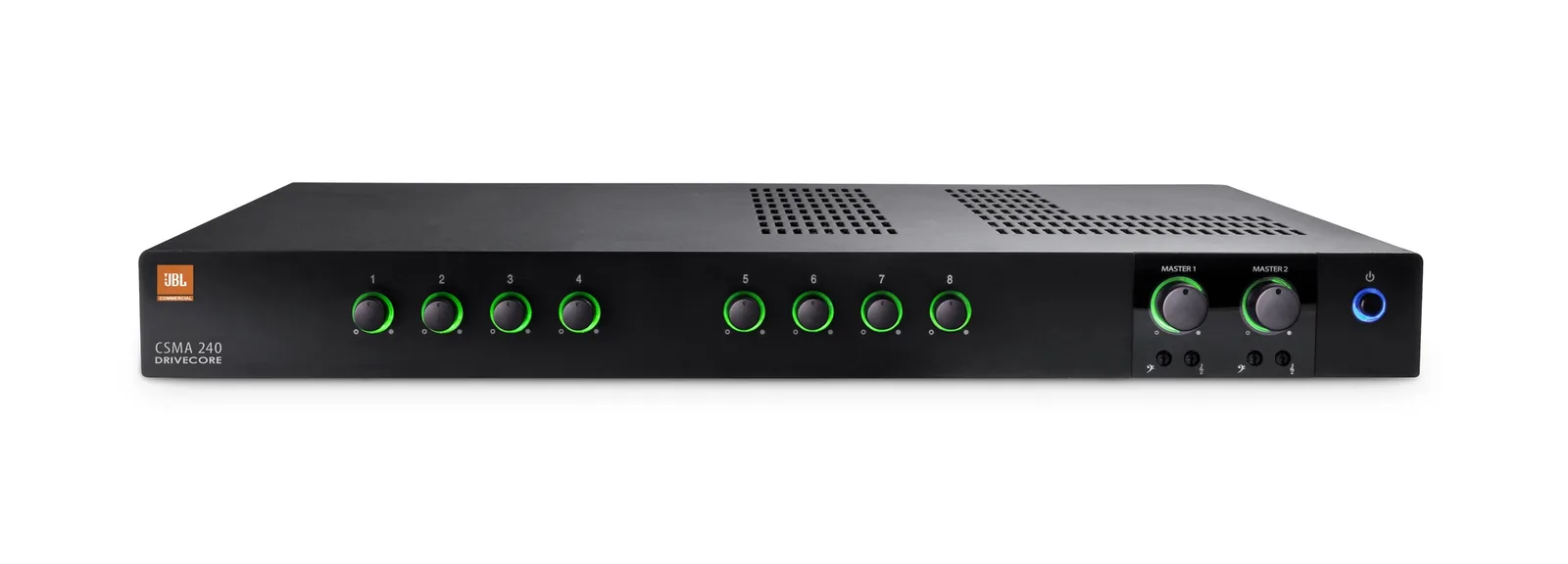

JBL CSMA 240/280/2120 Commercial Mixer/Amplifier

The CSMA 240/280/2120 is a commercial Mixer/Amplifier, from JBL's Commercial Series electronics range. Frequency range is +/- 1dB (@1W into 4 or 8 Ohms). Sensitivity is 1.4Vrms.

It measures 1.7" x 17.2" x 11.9" (43.3 mm x 436.9 mm x 303.4 mm). Ordering covers CSMA240, CSMA280 and CSMA2120; pick the one you need above and the SKU and price follow your choice. 8 inputs with 2 outputs of 40,80, 120-watts of power.

Type	Commercial Mixer/Amplifier
Output	120W @ 4/8 Ohms (1kHz Power, THD+N<0.5%)
Frequency Response	+/- 1dB (@1W into 4 or 8 Ohms)
Load Impedance	Stable from 2 - 16 Ohms
Sensitivity	1.4Vrms
Signal to Noise Ratio	-weighted
Input Impedance	Balanced 20K Ohms/Unbalanced 10K Ohms
Max Input	+20dBu Typical
Dimensions	1.7" x 17.2" x 11.9" (43.3 mm x 436.9 mm x 303.4 mm)
