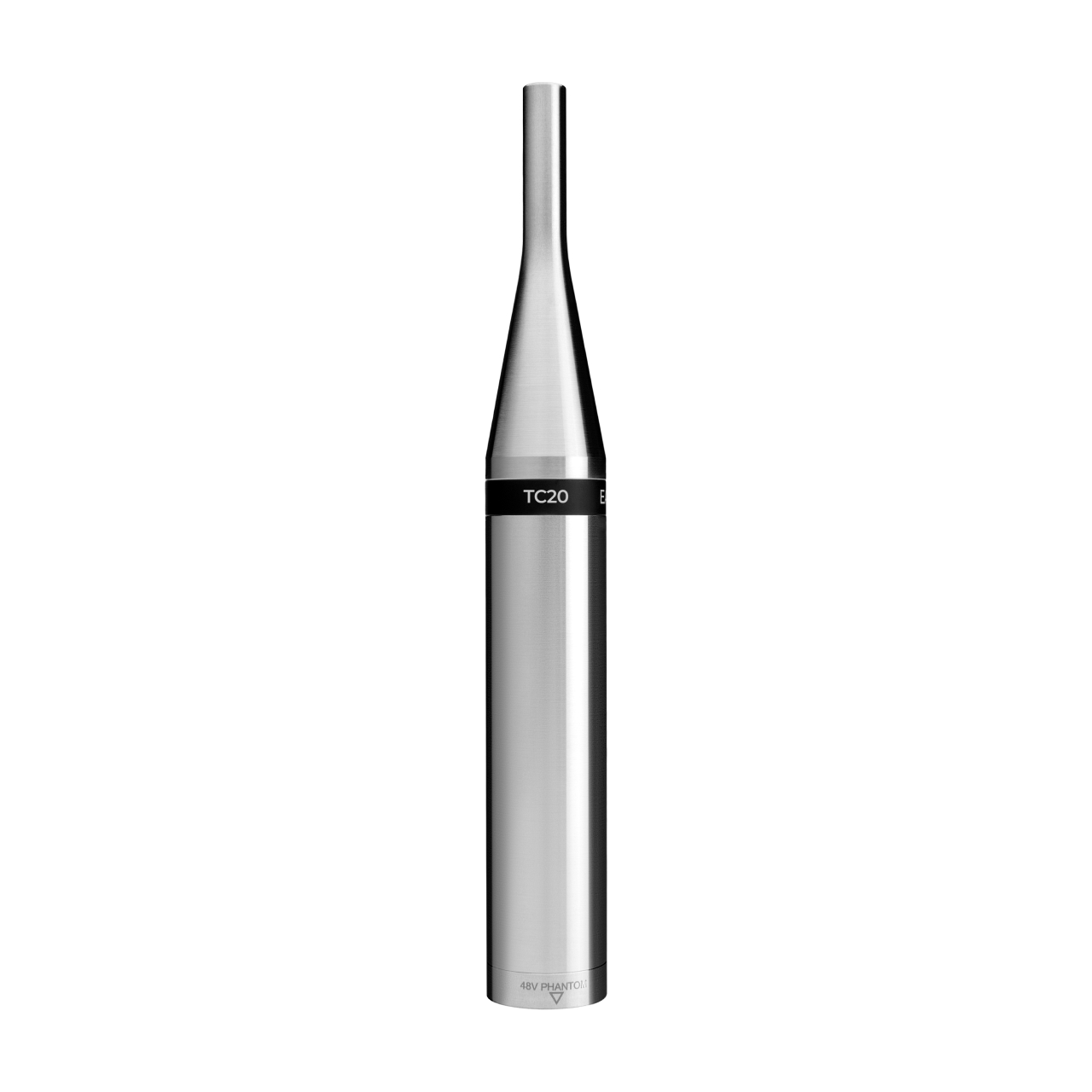

Earthworks TC20 Omnidirectional Condenser Microphone

The TC20 is a compact omnidirectional condenser that gives Earthworks accuracy in a small, affordable package. Its ruler-flat 9 Hz to 20 kHz response and ultra-fast transient handling deliver a truer representation of the original sound than a typical small-diaphragm mic, which makes it a favorite for acoustic instruments, room capture, and drum overheads.

With a very high 150 dB maximum SPL it takes loud sources without strain, and it runs on 24 to 48 V phantom over XLR. Available as a single mic or a factory-matched pair for stereo work where two microphones must behave identically - select above.

  • Power / Connector24 - 48 V phantom (10 mA); XLR
  • ConnectorXLR (pin 2+)
  • Polar PatternOmnidirectional
  • Frequency Response9 Hz - 20 kHz, +1/-3 dB
  • Sensitivity8 mV/Pa (-42 dBV/Pa)
Transducer Type
Polar PatternOmnidirectional
Frequency Response9 Hz - 20 kHz, +1/-3 dB
Sensitivity8 mV/Pa (-42 dBV/Pa)
Self-Noise26 dB SPL (A-weighted)
Maximum SPL150 dB
Power / Connector24 - 48 V phantom (10 mA);
Impedance65Ω balanced (between pins 2 & 3)
Weight.35 lb. (160g)
Power24-48V Phantom, 10mA
ConnectorXLR (pin 2+)
