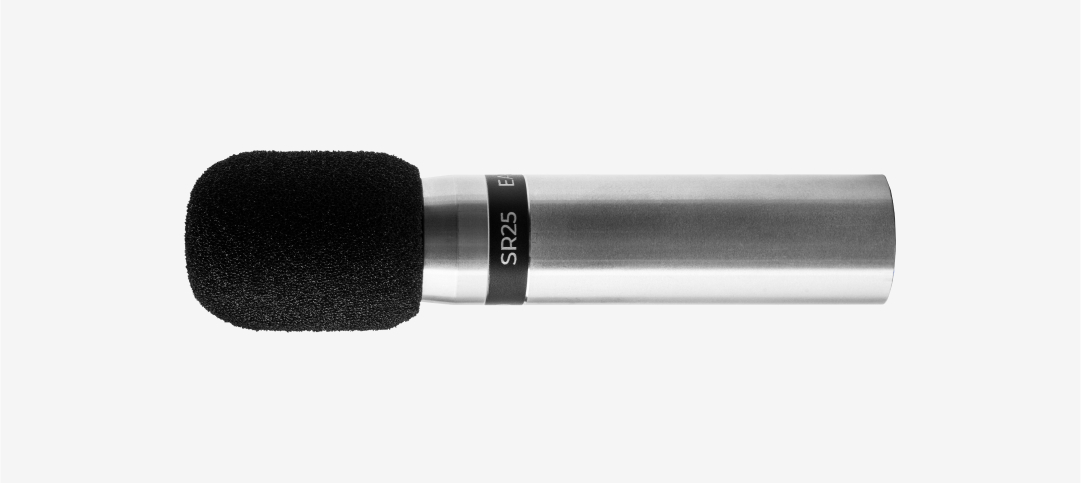

Earthworks SR25 Gen 2 Cymbal and Overhead Microphone
The SR25 Gen 2 moves to a supercardioid pattern from the original SR25's cardioid, for tighter directionality and better isolation on cymbal and hi-hat overheads in a crowded mix. Enhanced electronics cut phantom power draw and add protection against accidental hot-swapping.
It is smaller and lighter than the original, which makes it easier to hide over a kit, and it keeps the extended 20 Hz to 25 kHz response that gives Earthworks overheads their air. Runs on standard 48 V phantom power.
| Microphone Type | Pre-polarized condenser |
|---|---|
| Polar Pattern | Supercardioid |
| Diaphragm Size | 10 mm |
| Frequency Response | 20 Hz - 25 kHz |
| Sensitivity | -36 dBV/Pa (15.8 mV/Pa) at 1 kHz |
| Self Noise | 20 dBA (A-weighted) |
| Maximum SPL | 141 dB SPL (3% THD) |
| Power Requirements | 48 V phantom (P48), 6 mA |
| Dimensions | 4.14 x 0.86 in (105.15 x 21.84 mm) |
