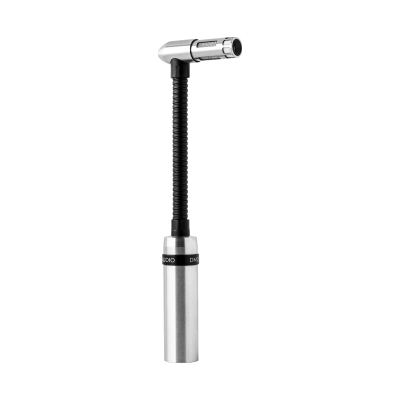

Earthworks DM20 Gen 2 Tom and Snare Drum Microphone

The DM20 Gen 2 replaces the original DM20 with next-generation electronics that draw only 6 mA of phantom power and are hardened against hot-plugging damage, plus a new RM2 rim mount for faster, more secure attachment across a wider range of rim shapes.

Its supercardioid pattern isolates each drum from the rest of the kit for a cleaner mix, with the 20 Hz to 20 kHz response and 148 dB SPL headroom Earthworks drum mics are built around. Runs on standard 48 V phantom power.

Microphone TypePre-polarized condenser
Polar PatternSupercardioid
Diaphragm Size10 mm
Frequency Response20 Hz - 20 kHz
Sensitivity-49 dBV/Pa (3.5 mV/Pa) at 1 kHz
Self Noise25 dBA (A-weighted)
Maximum SPL148 dB SPL (3% THD)
Power Requirements48 V phantom (P48), 6 mA
IncludedRM2 rim mount
