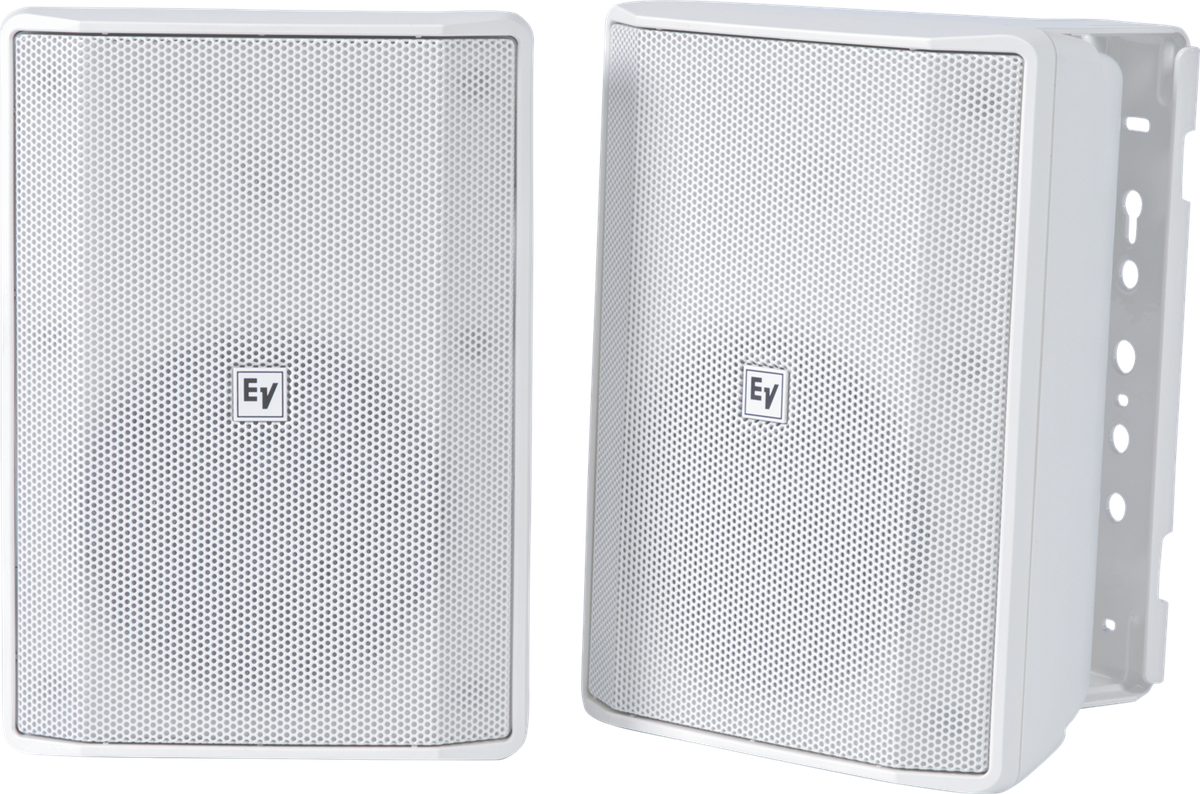

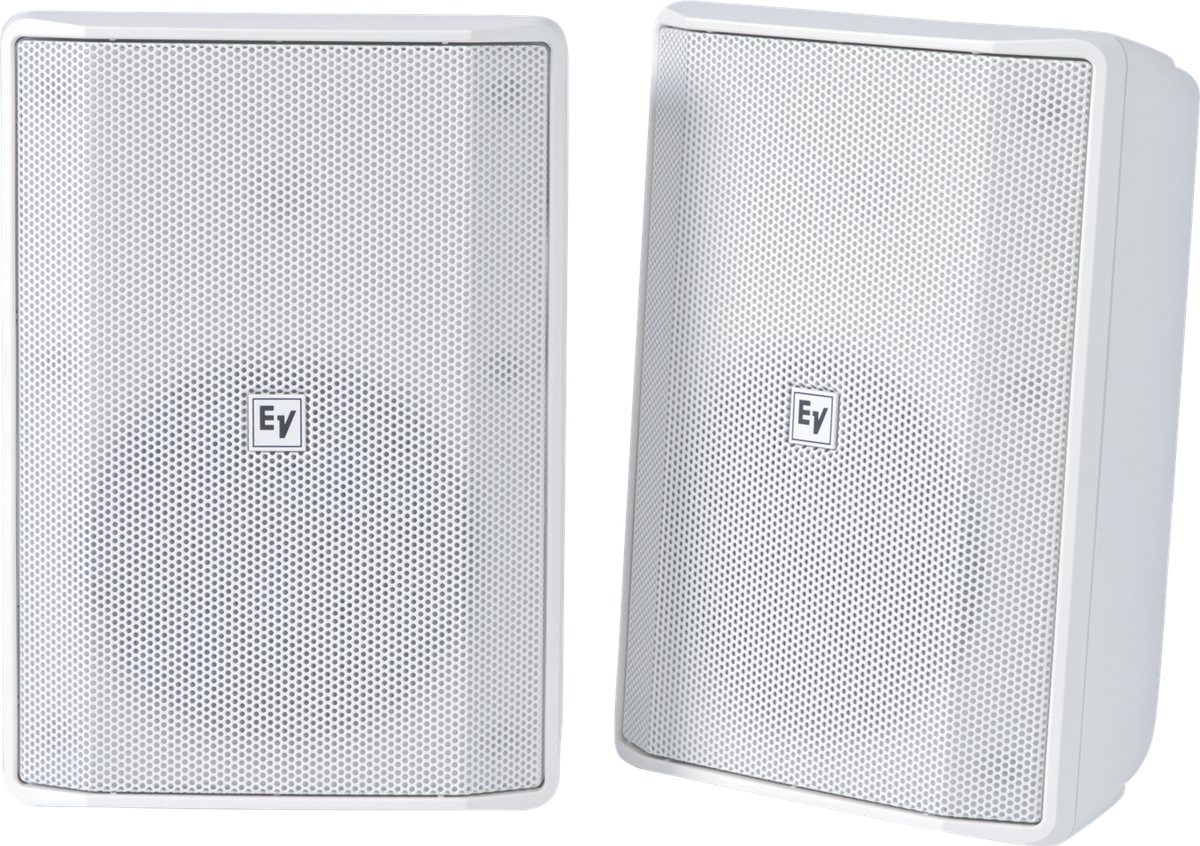

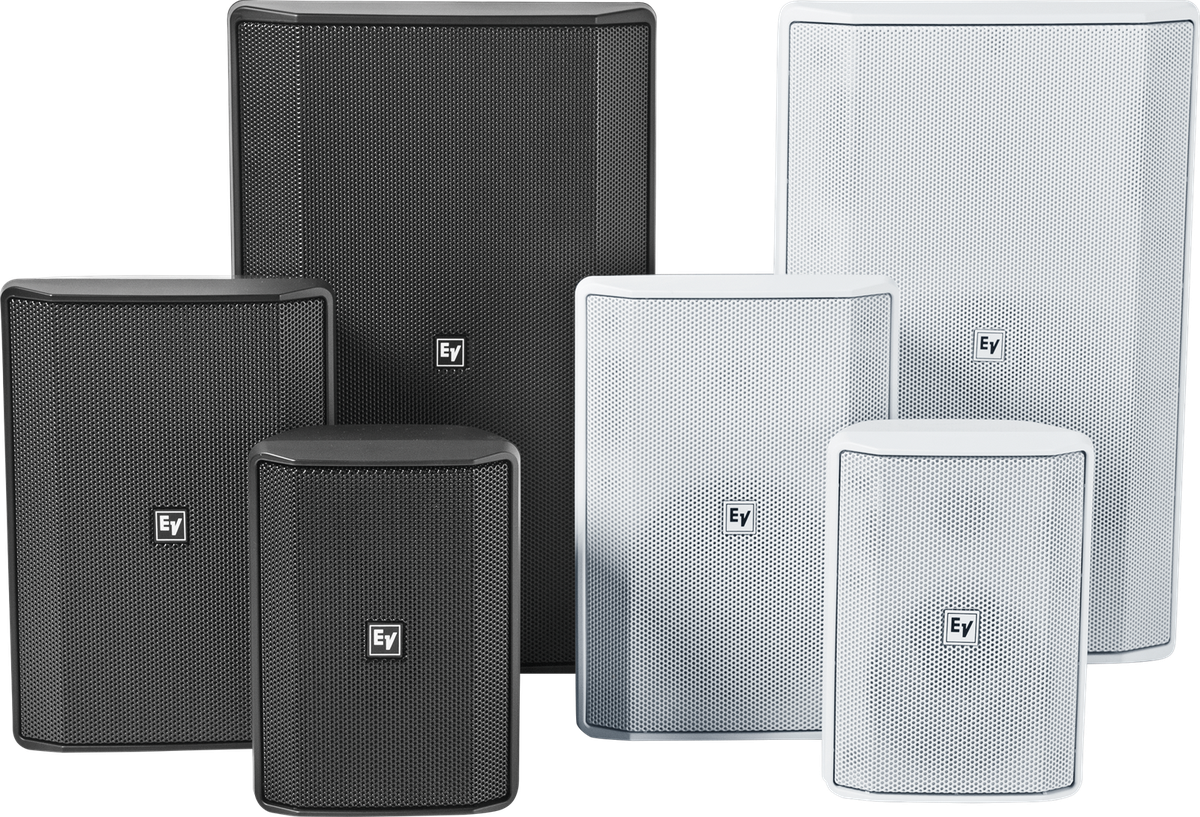

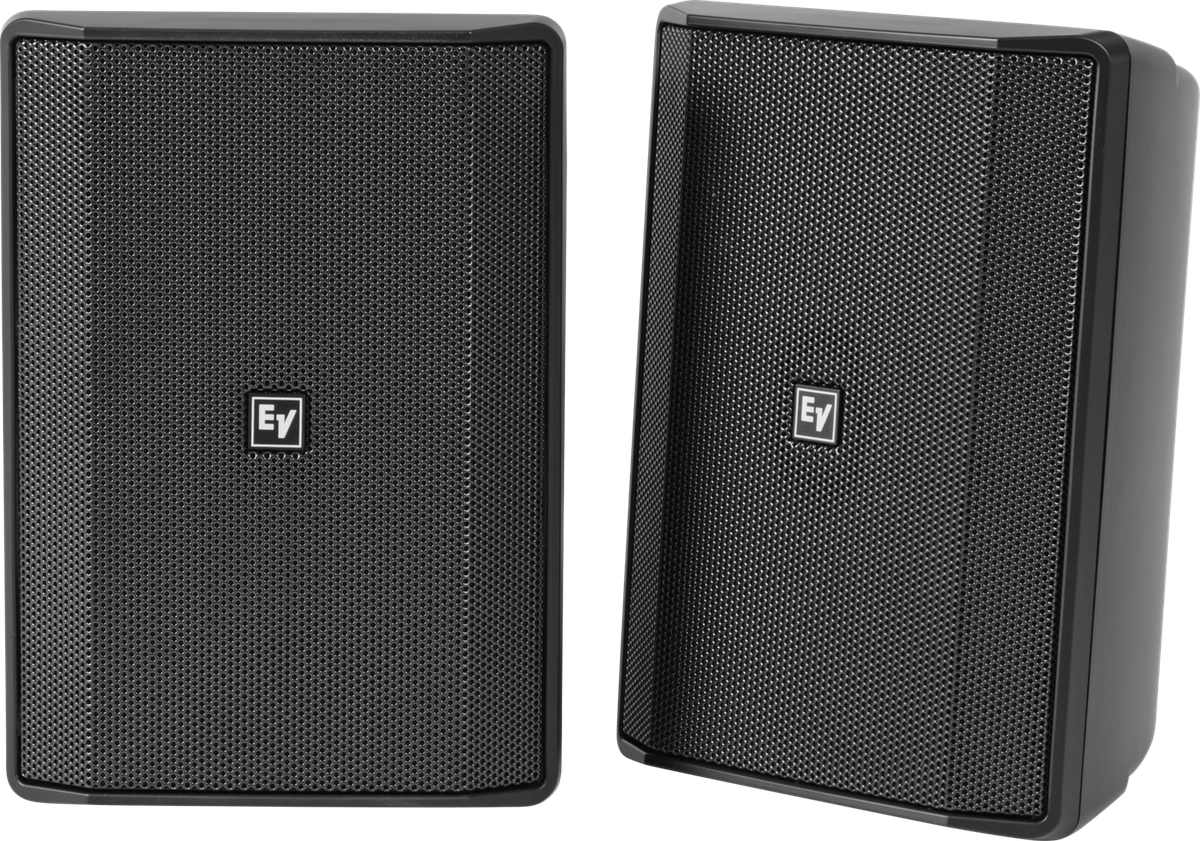

Electro-Voice EVID-S5.2X Weatherproof Surface-Mount Loudspeaker

The EVID-S5.2X is the weatherproof member of the EVID surface-mount family: a two-way 5.25 inch cabinet rated IP65 with a marine-grade aluminium grille, for pool decks, boardwalks, patios and anywhere else a normal install speaker would not last a winter. The long-throw woofer sits in UL 94-5VB fire-rated ABS and reaches down to 55 Hz.

Wiring is on removable locking 4-pin Euroblock connectors with a pass-through, so a run of cabinets daisy-chains without a junction box. The built-in 60 W transformer takes 70 V or 100 V lines with an 8 ohm bypass. A U-bracket is in the box, giving 80 degrees of vertical adjustment for wall or soffit mounting. Order black or white.

Frequency range (-10 dB)	55 Hz - 20 k
Sensitivity 1 W / 1 m	90 dB
Maximum SPL (calculated)	108 dB
LF transducer	5.25 inch (122 mm)
HF transducer	0.75 inch (20 mm)
Coverage (horizontal)	90°
Coverage (vertical)	90°
Transformer	70V/100V (60W)
Nominal impedance	8 ohms
Connector type	Removable locking 4-pin connector (Euroblock) - (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)
Environmental rating	IP-65 (per IEC-60529)
Net weight	3.2 kg
