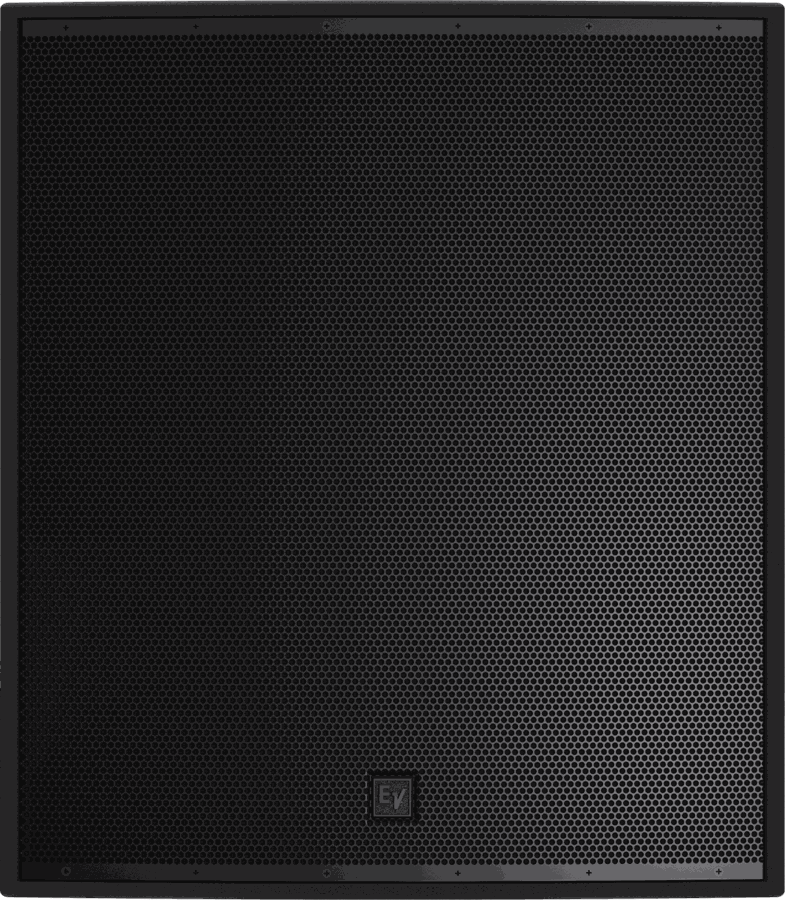

Electro-Voice EVF-215S G2 Dual 15-inch Subwoofer
The EVF-215S G2 is the dual 15-inch subwoofer in the second-generation EVF install range. It carries 800 W of continuous power handling and reaches 38 Hz - 100 Hz, so it anchors the low end under EVF and EVH cabinets in theatres, worship rooms and music venues rather than working as a portable box.

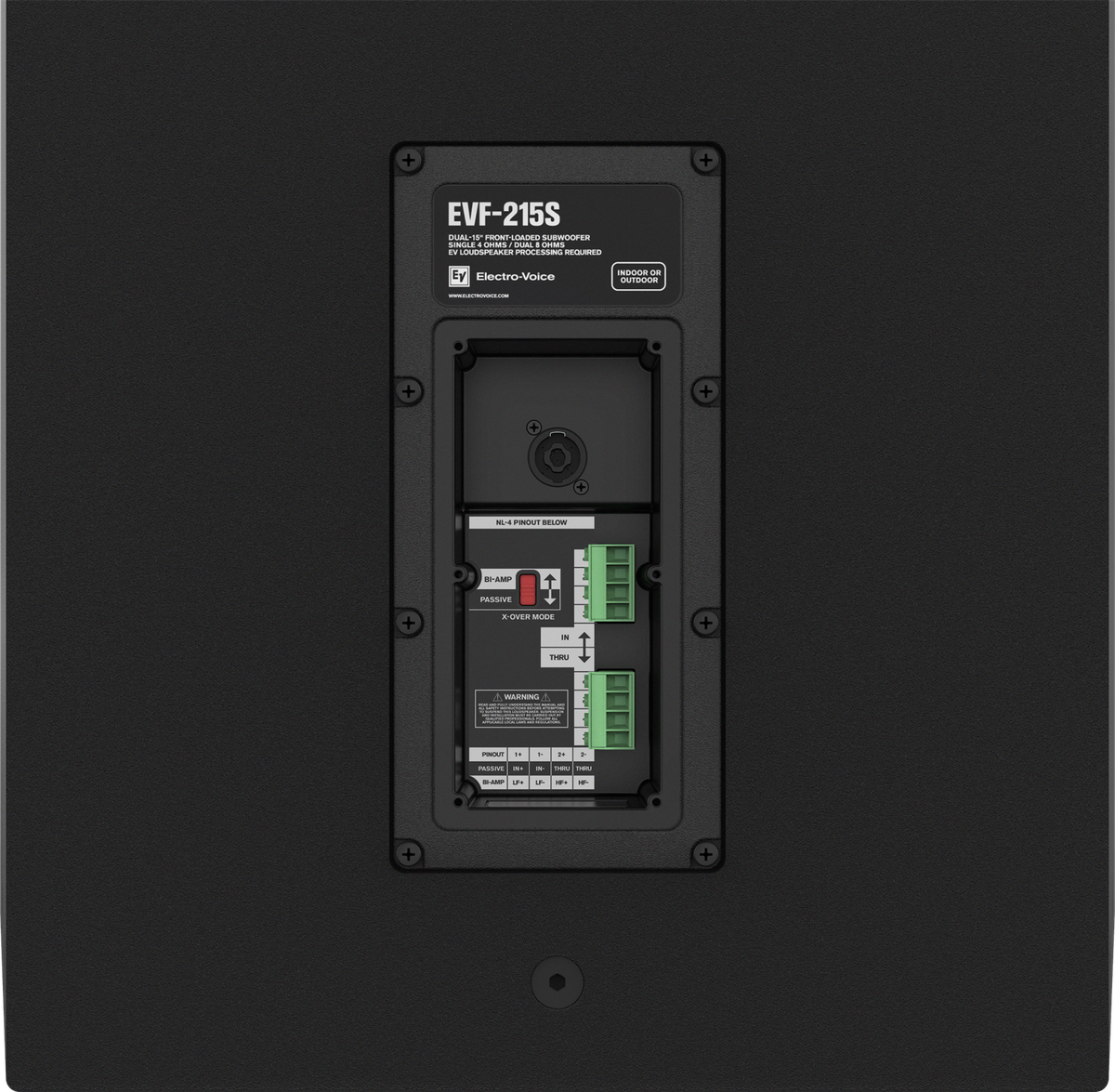

Wiring lands on a removable Euroblock connector with an NL4 socket alongside it, and a stable 3.4 ohms minimum impedance keeps amplifier loading predictable when cabinets are paralleled. The grille is front-serviceable and holds up at high SPL while wet. Suspension runs to U-brackets, wall brackets, eyebolts and rigging kits, with four Omni-Mount points on the rear panel. Cabinets ship in black (RAL9005) or white (RAL9003) single-step polyurea, and the FW versions are certified to IP55 with the moisture-resistant cover fitted and at least 5 degrees of down tilt.
| Frequency response (-3 dB) | 38 Hz - 100 Hz |
|---|---|
| Frequency range (-10 dB) | 32 Hz - 140 Hz |
| AES75 Linear SPL | 126 dB |
| AES75 Peak SPL | 137 dB |
| Power handling (continuous) | 800 W |
| Power handling (program) | 1600 W |
| Nominal impedance | 4 ohms |
| Minimum impedance | 3.4 ohms |
| Preset high-pass | 32 Hz |
| Connector type | 10 AWG Euroblock NL4 |
| Suspension points | (28) M10 rigging points |
| IP rating (FW versions) | IP55 |
| Dimensions (H x W x D) | 30.3 in x 26.5 in x 28.6 in |
| Weight | 152 lb (69 kg) |
| Shipping weight | 203.5 lb (92.5 kg) |
| Operating temperature | -20 C to +50 C |
| Included hardware | Dual gland nut cover plate |
