EtherWAN EasyRestore Fiber Shear for Traffic Cabinets

Name: EtherWAN EasyRestore Fiber Shear for Traffic Cabinets
Brand: EtherWAN
SKU: EASYRESTORE
Availability: InStock

$2,333.98

EASYRESTORE

Choose an option

EasyRestore Fiber Shear for Traffic Cabinets, rated -40 to 180 deg F (-40 to 75 deg C).

EtherWAN EasyRestore Fiber Shear for Traffic Cabinets restores a cut fiber run inside a traffic cabinet. Operating temperature is rated at -40 to 180 deg F (-40 to 75 deg C). The housing is delrin, rated IP66.

This page carries the 7 orderable part numbers in the family; pick the one you need from the selector and the price and SKU follow it. The models differ by the options listed on each variant. Specifications above are taken from the EtherWAN datasheet for this family.

Casing Material	Delrin
IP Rating	IP66

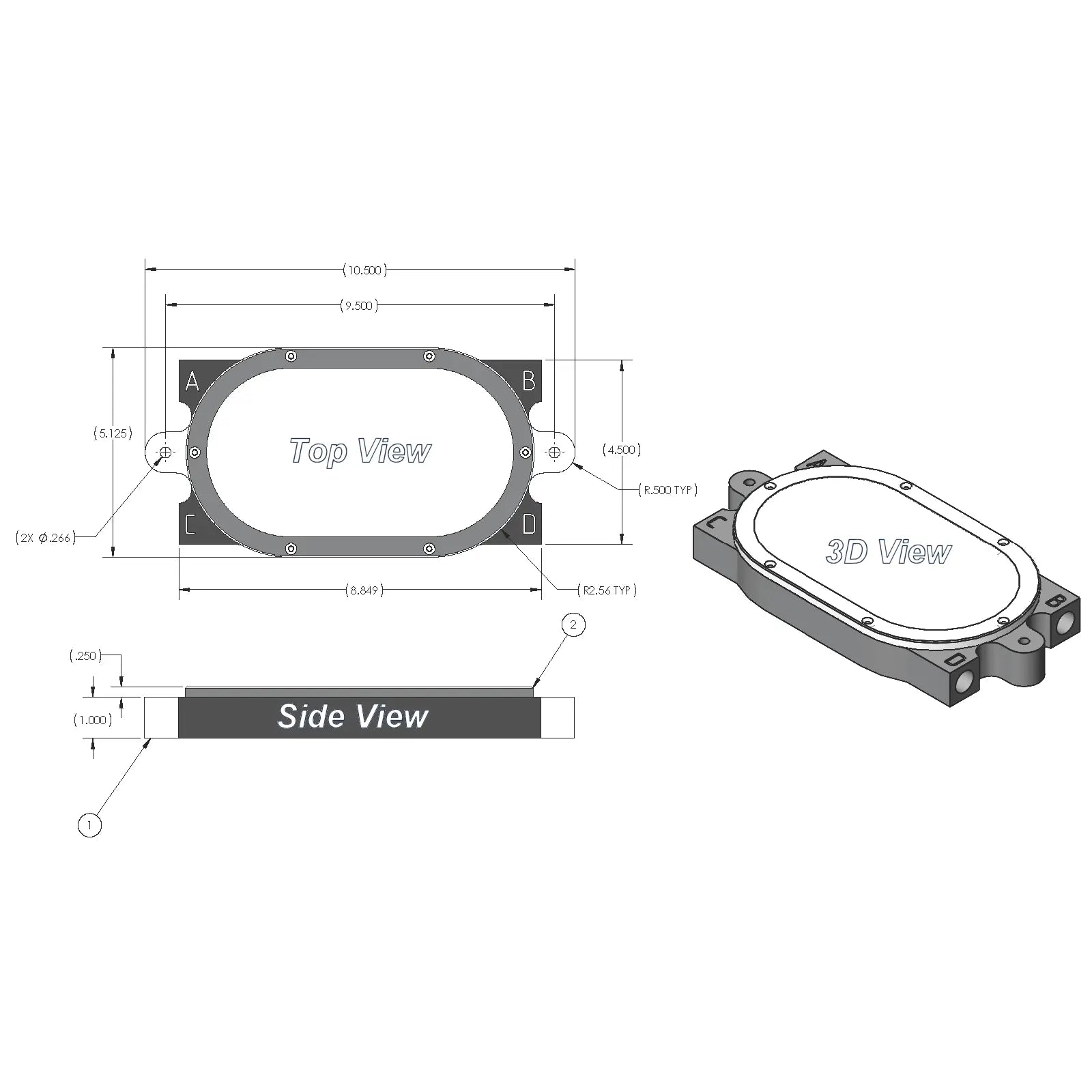

Dimensions	10.5" x 5" x 1.2" (W x D x H)
Weight	2lbs (0.91kg)
Module Coupling Retainer Screws	#8 Zinc Plated Machine Screws
Cabinet Channel Mounting Screws	1/4-20 threaded Electro-galvanized steel, Unistrut model P6013-1420, with ½" extended 1/4-20 machine screws
Pad Mount	Steel Read Head Drop-in Anchors
Fiber	G.652.D glass, in tight buffered I/O jacketed configuration
