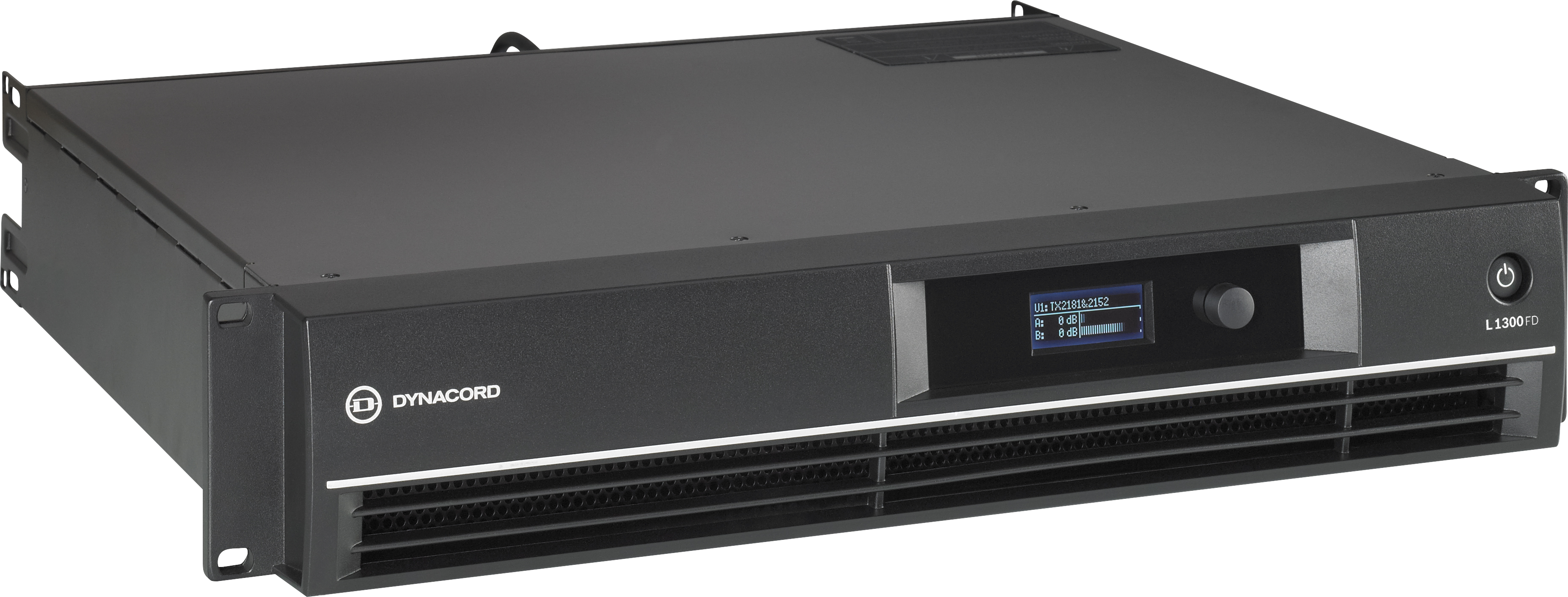

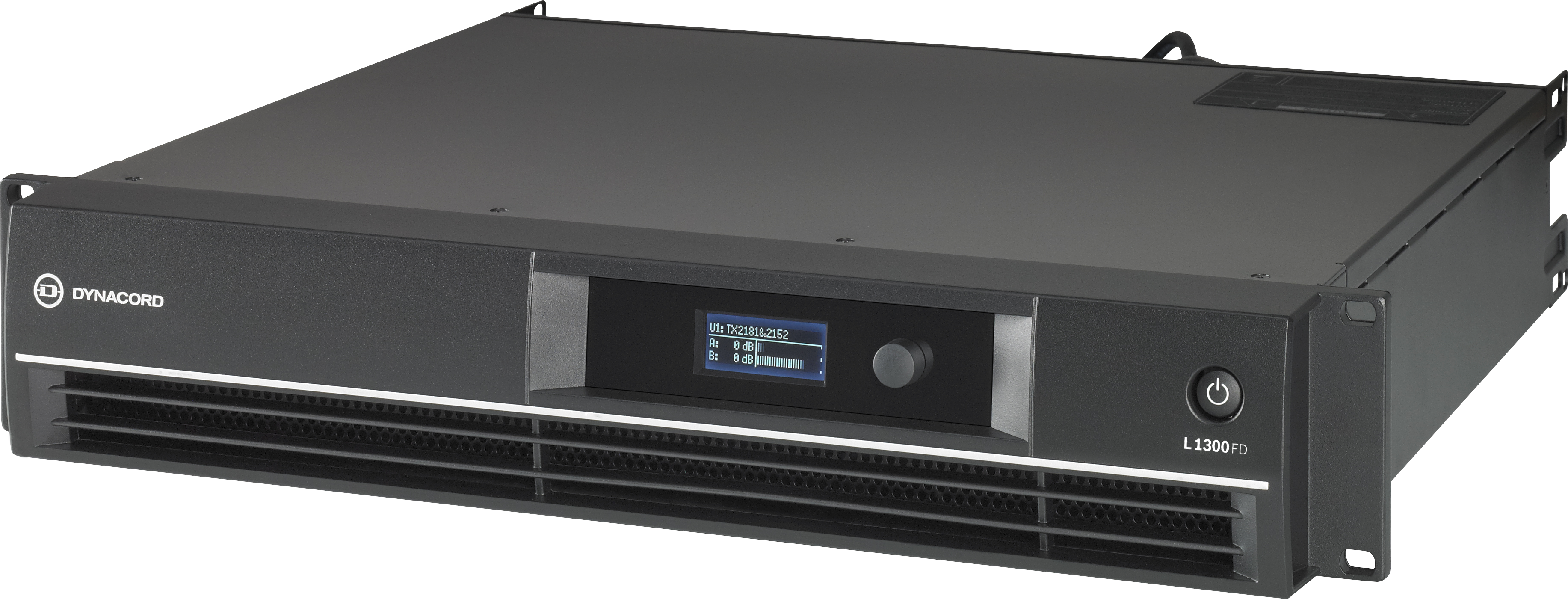

Dynacord L1300FD 2 x 650 W DSP Power Amplifier

The Dynacord L1300FD is a two-channel live sound amplifier with speaker processing built in, rated 2 x 650 W DSP Power Amplifier. Driving both channels it produces 1000 W at 2 ohms, 850 W at 2.6 ohms, 600 W at 4 ohms, 320 W at 8 ohms, and bridged it delivers 2000 W at 4 ohms, 1200 W at 8 ohms. The output stage is Class AB, the power supply is engineered for constant stability at 2 ohms, and protection circuitry watches both the amplifier and the connected loudspeakers. It is the amplifier for a band or a small production company that wants factory loudspeaker tunings rather than a generic crossover, without carrying a rack of processing.

The onboard DSP is the reason to choose an FD model over a plain amplifier: FIR Drive filters reproduce the original factory loudspeaker tunings, alongside multi-band parametric EQ, crossovers, limiters, and output delay on each channel. Setup, tuning, and monitoring happen in Dynacord SONICUE Sound System Software, which adds ten-band PEQs and a dedicated array processing section. Frequency response is 10 Hz to 21 kHz within 1 dB, inputs are active balanced at 20k ohms accepting up to +21 dBu, and the chassis measures 483 x 88 x 462.4 mm and weighs 12.9 kg (28.4 lb).
