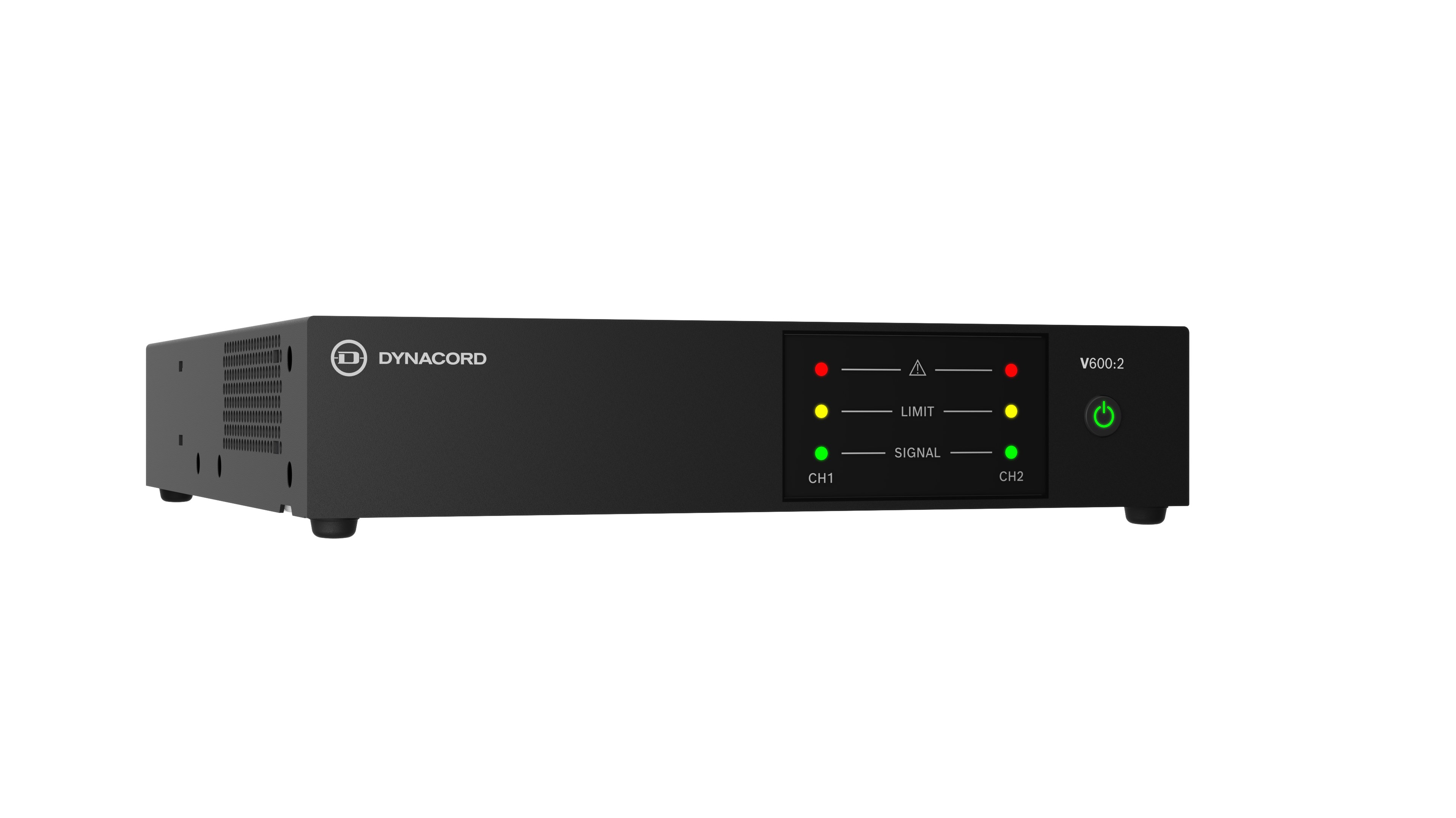

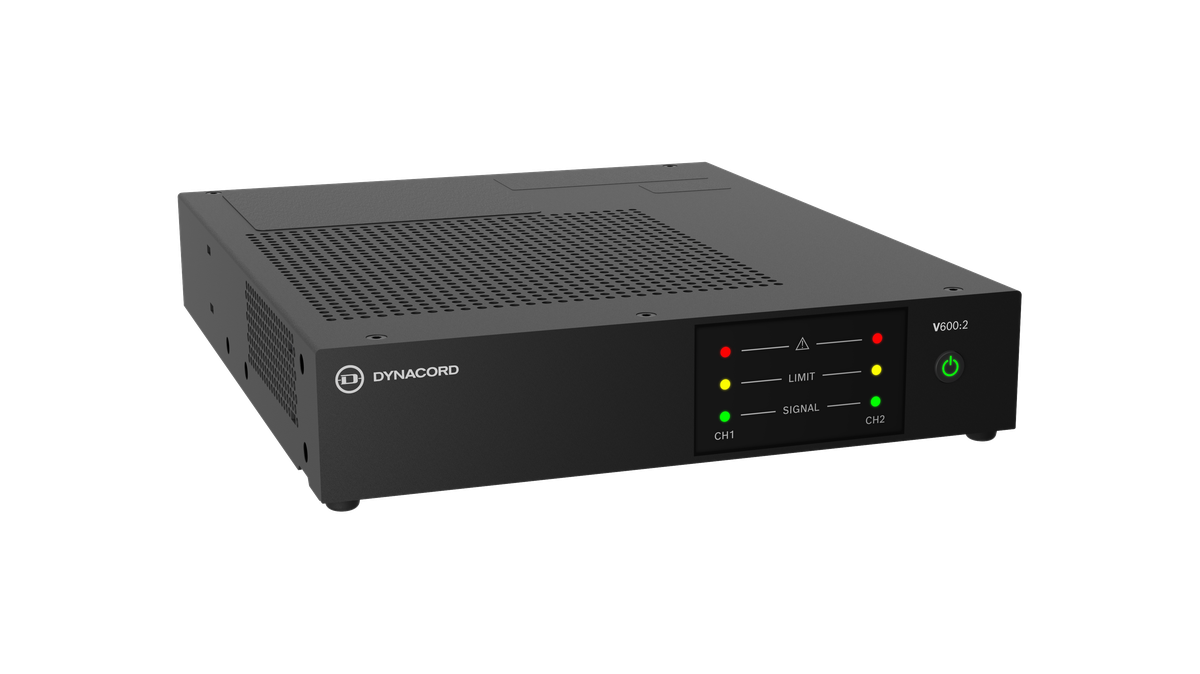

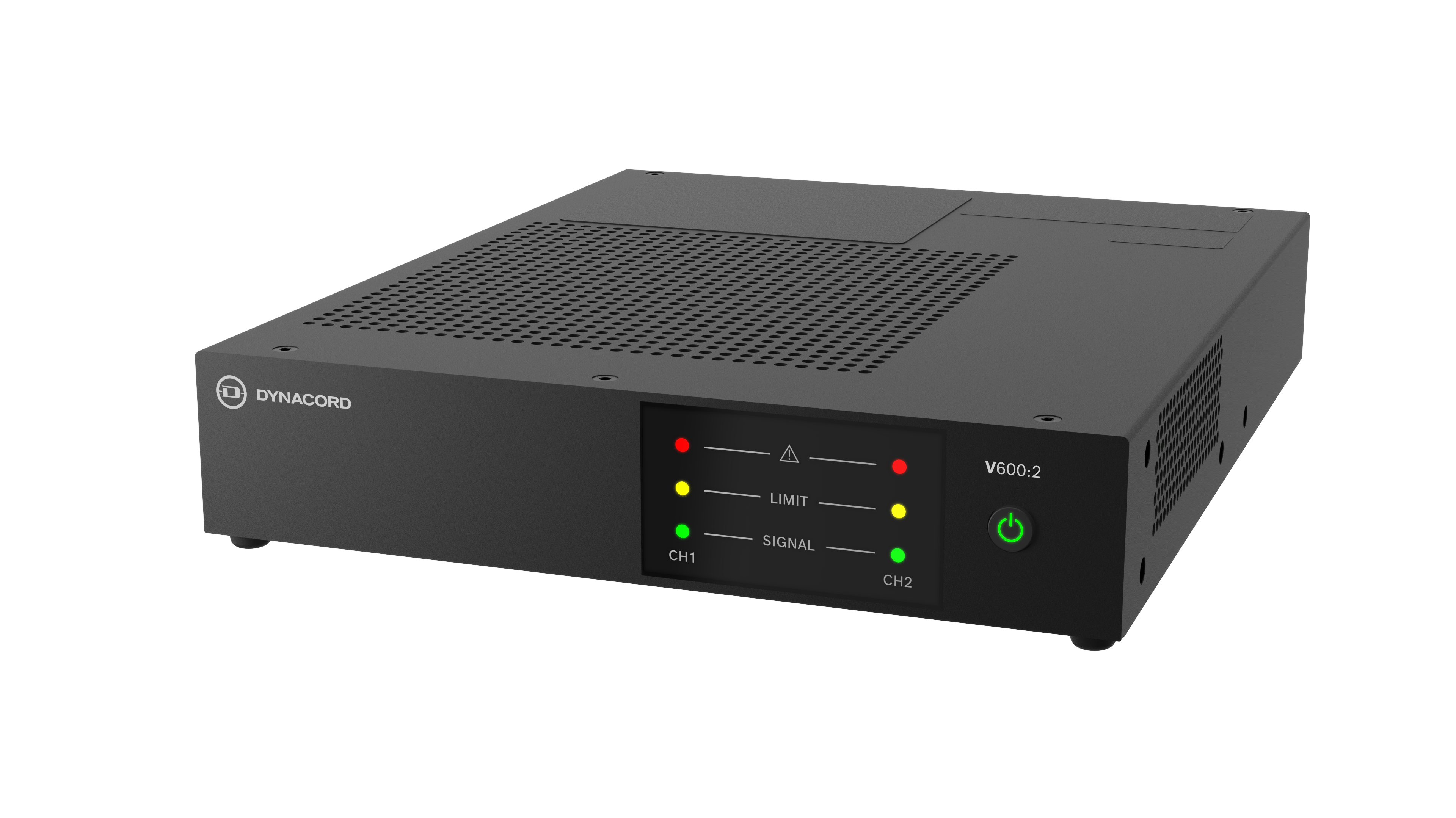

Dynacord V600:2 Two-Channel Installation Power Amplifier

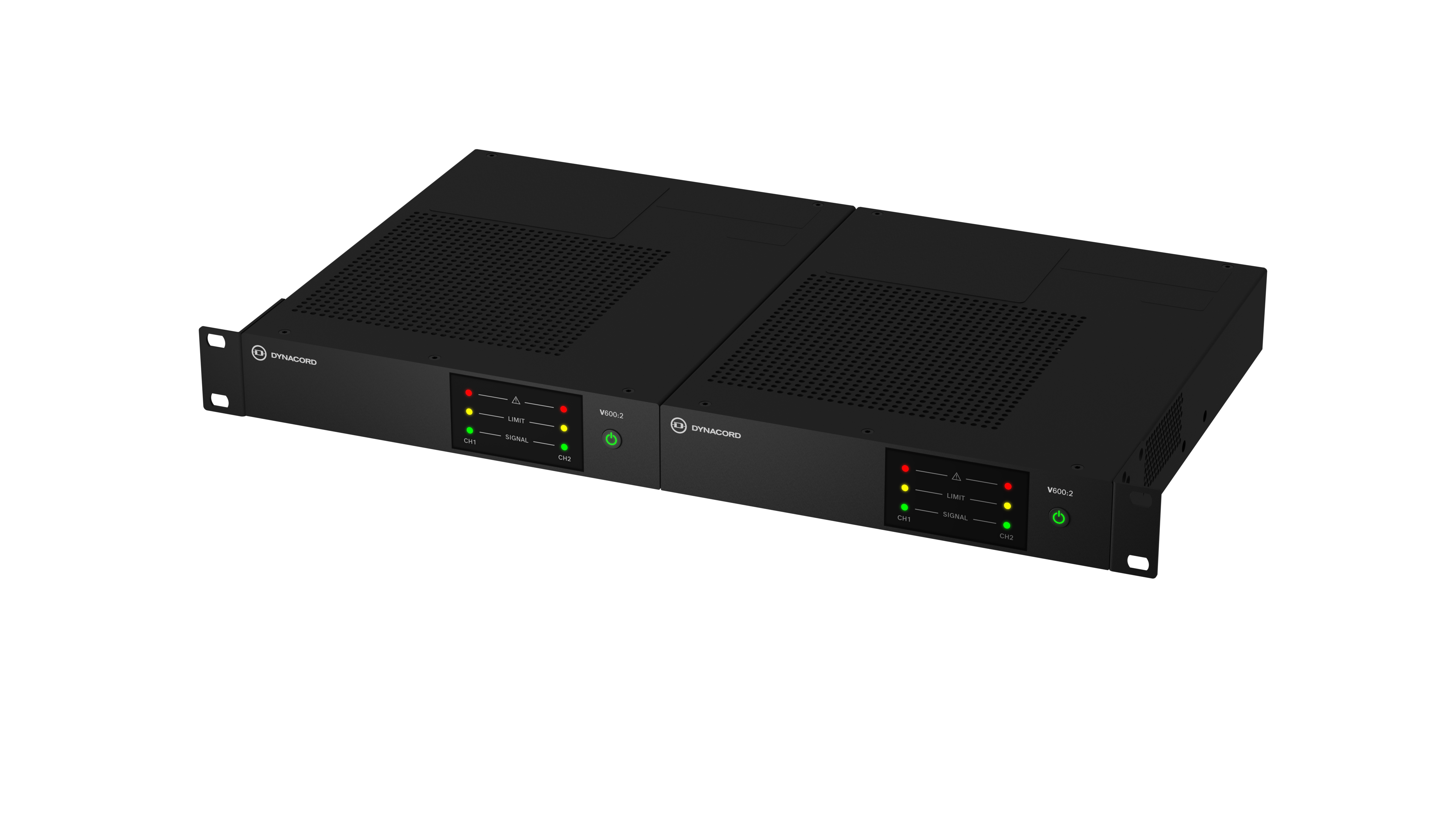

The V600:2 is a two-channel installation amplifier with 600 watts of total output in a chassis one rack unit high and half a rack wide. It is specified for background music and announcements in small to mid-sized commercial spaces, and it has the headroom for higher SPL where an educational facility, hospitality venue, retail area or house of worship needs more than a paging level.

It carries the same feature set as the four-channel V600:4, so integrators can mix models across a project without changing platforms. Dynacord's powerTANK, Variable Load Drive, ecoRAIL and dualCOOL technologies handle flexible power allocation between channels, reduced consumption and silent, uninterrupted operation, which is the combination that keeps it usable in a closet or above a ceiling rather than in a ventilated rack room.

Rated output power1	2 x 300 W
Output power:	4 Ω / 8 Ω / 70 V / 100 V
THD+N (1/8 RATED OUTPUT POWER, 1 KHZ)	< 0.1 %
Consumption at 1/8 rated output power	115 W
Number of channels	2
Loudspeaker output	2 x 4-pin Euroblock, 5.08 mm, female
Control port type	1 x 5-pin Euroblock, 3.81 mm, male
Power requirements	100 V to 240 V, 50 Hz to 60 Hz AC
