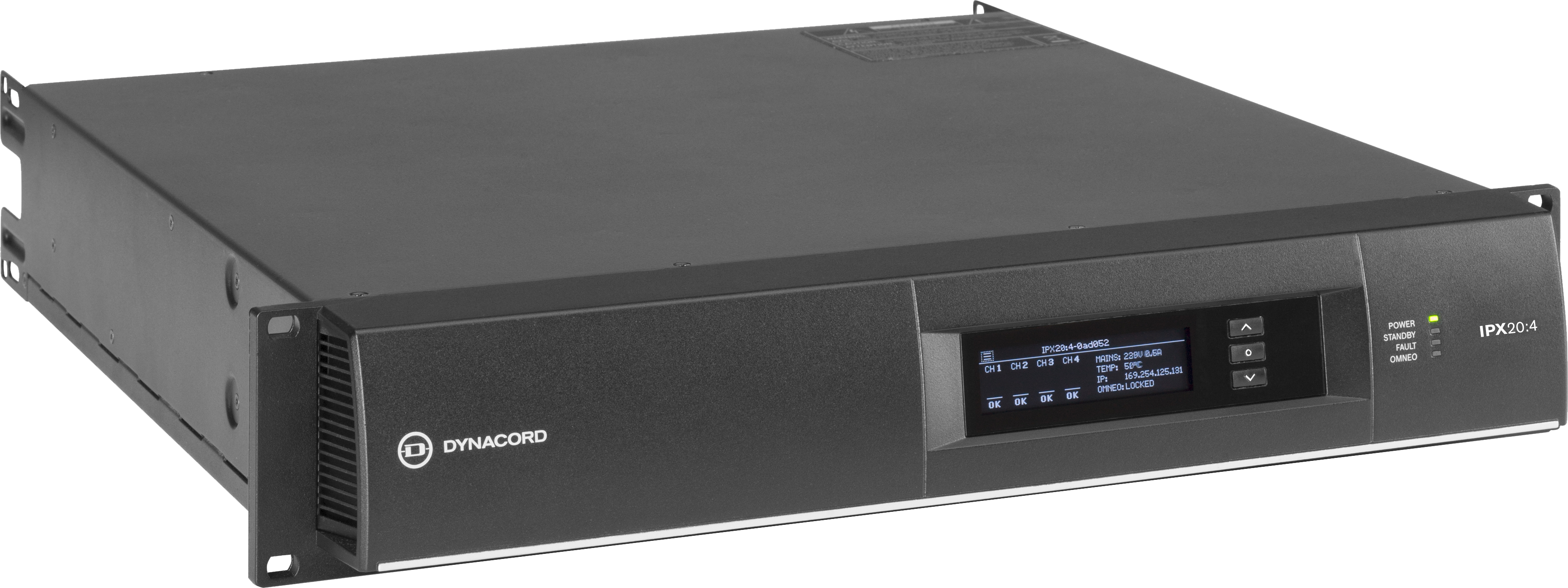

Dynacord IPX20:4 4 x 5000 W Multi-Channel Installation DSP Amplifier

The IPX20:4 is a 4 x 5000 W multi-channel installation amplifier from Dynacord's IPX series, aimed at stadiums, arenas, houses of worship, concert halls and theatres, the jobs that need high channel counts and real loudspeaker processing in the same rack space. The integrated DSP runs at 48 kHz or true 96 kHz including FIR Drive, so the crossovers and correction live in the amplifier rather than in a separate processor.

Inputs are analog plus Dante and OCA over OMNEO, with fallback options for redundant designs. Each channel runs in low impedance mode or 70V/100V Direct Drive; bridging gives 140V/200V Direct Drive, and channels can be paralleled, or paralleled and bridged in fours, to suit whatever loudspeaker line the room actually has. A digitally controlled interleaved PFC supply keeps it stable on poor mains and holds reactive current down, and ecoRAIL technology cuts the running cost of leaving it powered.

THD 3 dB below max, AES17, 1 kHz	< 0.05 %
Input Impedance, active balanced	20 kΩ
Dimensions (W x H x D), mm	483 x 88.1 x 514.2
Weight	18.3 kg (40.3 lb)
Mains Input	1 x Neutrik powerCON-HC
Parallel-Bridge	n.a.
DIM 100 3.15 kHz, 15 kHz	< 0.15 %
IMD-SMPTE 60 Hz, 7 kHz	< 0.15 %
