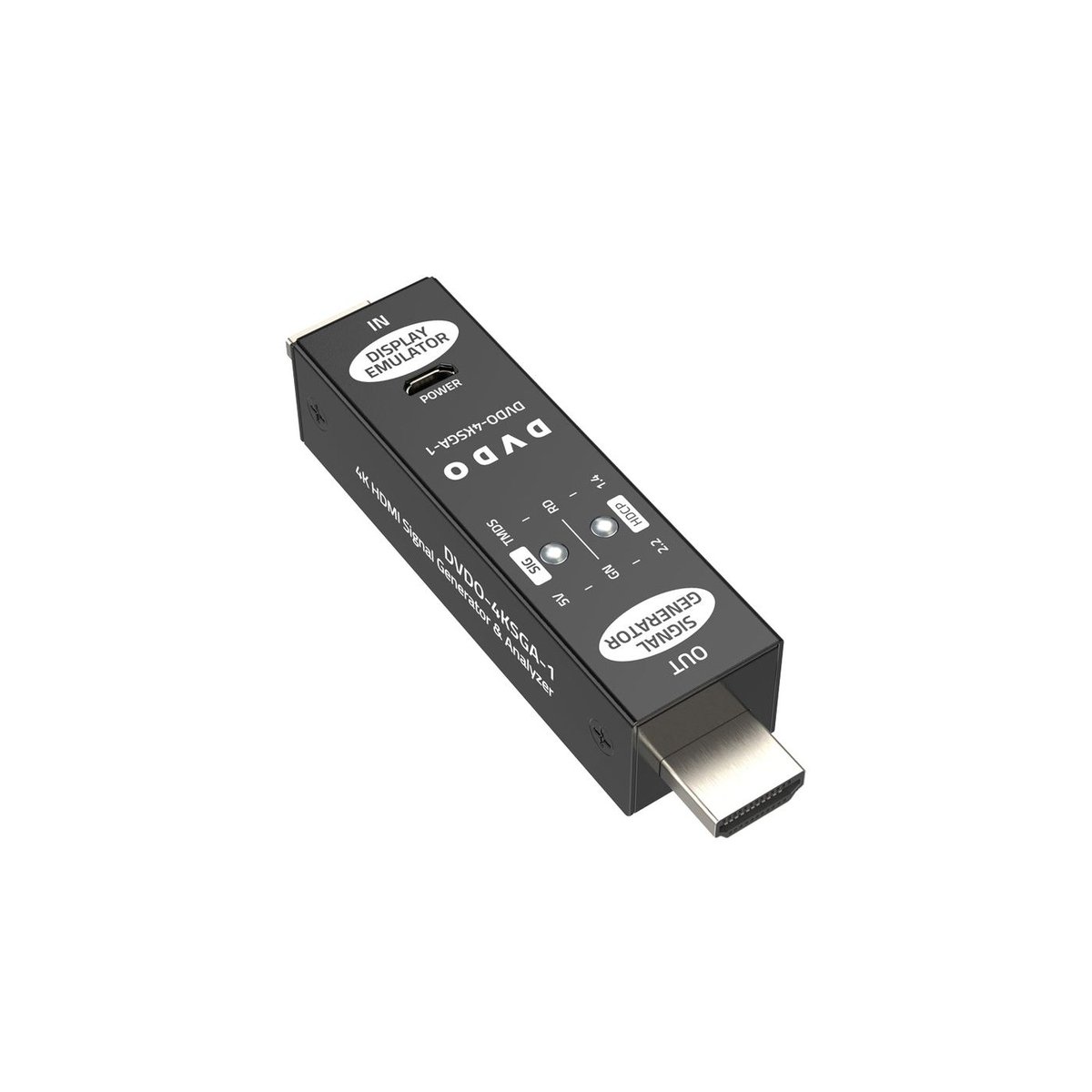

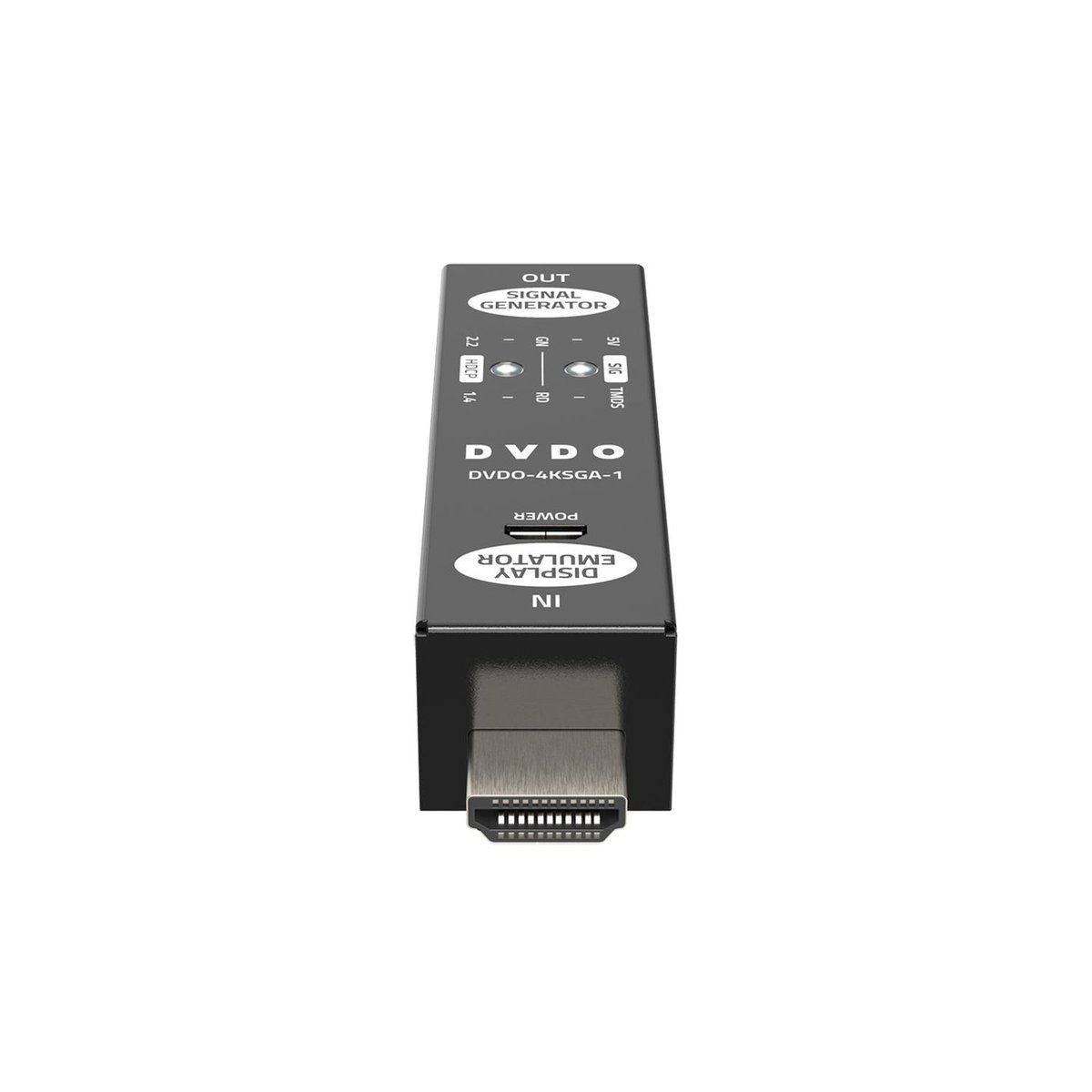

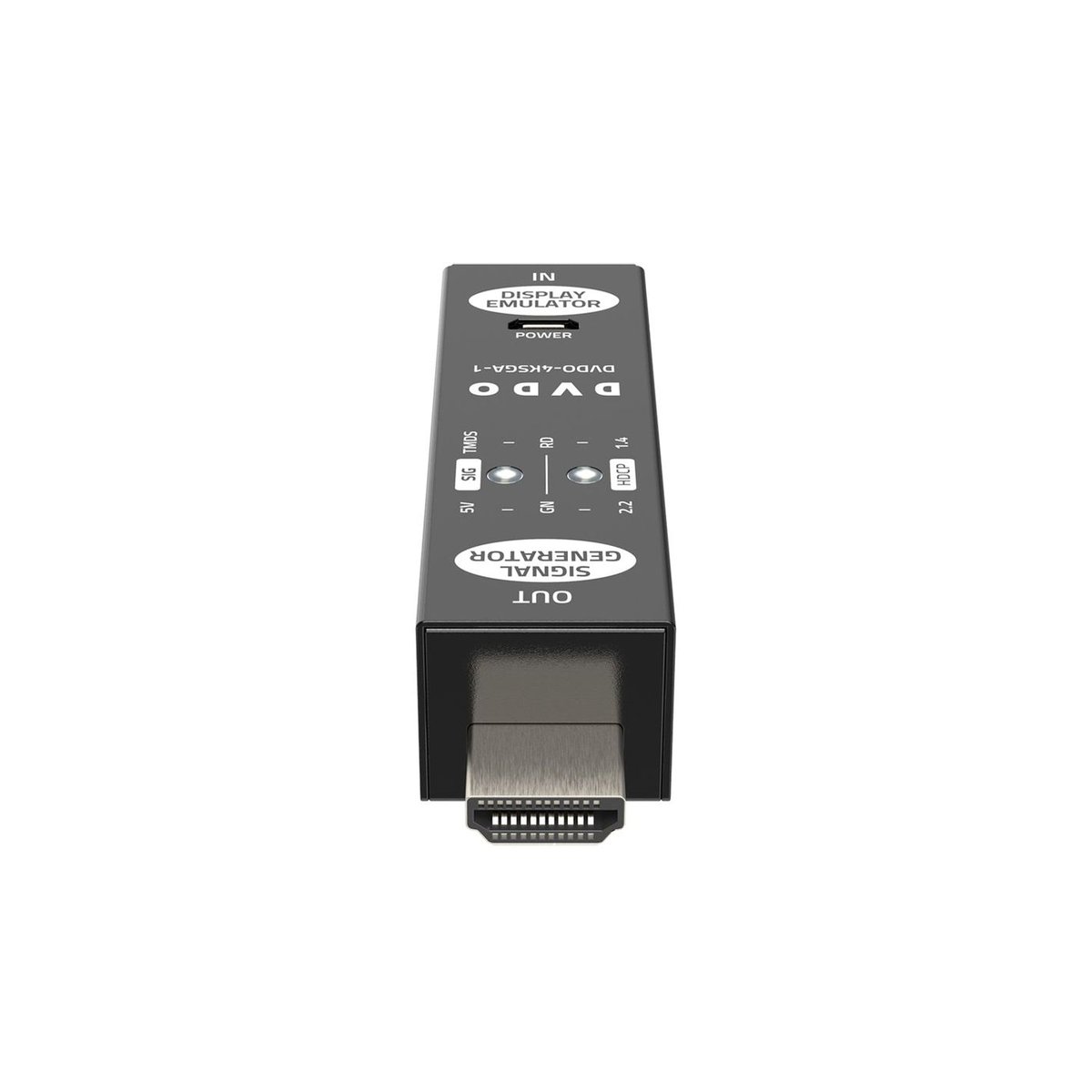

DVDO 4KSGA-1 4K HDMI Signal Generator & Analyzer

The 4KSGA-1 is DVDO's 4K HDMI Signal Generator & Analyzer, from the integration & calibration tools line. HDMI 2.0 / HDCP 2.2 compliant, supports resolutions up to 4K60 4:4:4 at 18 Gbps.

Two modes: signal generator through HDMI output & display emulator through HDMI. Selectable video resolutions and HDCP modes with 4-pin DIP. Output video resolutions: 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, or 1080p@60Hz. HDCP modes: OFF, HDCP 1.4 or HDCP 2.2. 2 LED indicators for signal link and HDCP status.

Video	HDMI 2.0 / HDCP 2.2 compliant, supports resolutions up to 4K60 4:4:4 at 18 Gbps

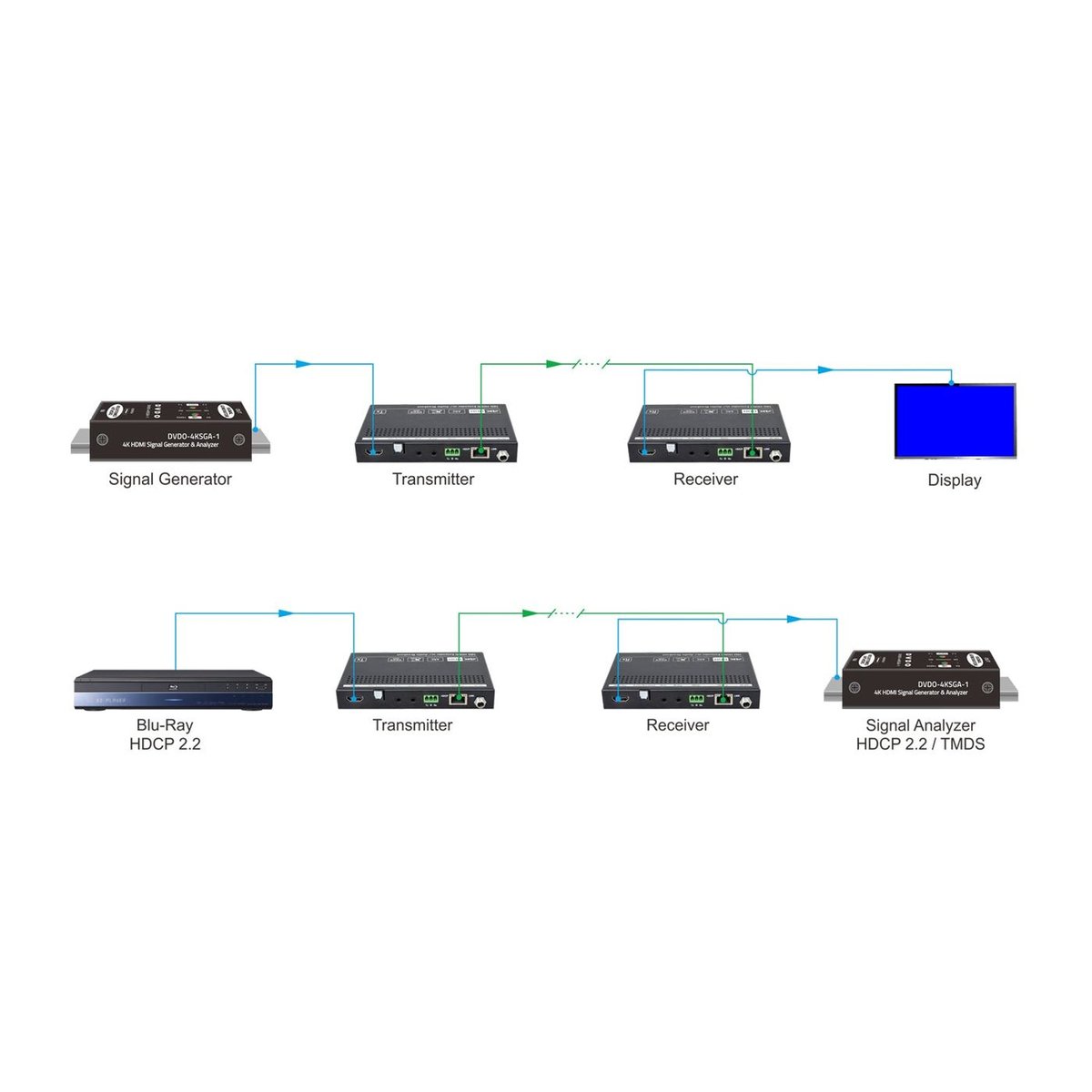

Connectivity	Two modes: signal generator through HDMI output & display emulator through HDMI
HDCP	Selectable video resolutions and HDCP modes with 4-pin DIP
Feature	Output video resolutions: 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, or 1080p@60Hz
Also	HDCP modes: OFF, HDCP 1.4 or HDCP 2.2
Indicators	2 LED indicators for signal link and HDCP status
Power	USB powered when in signal generator mode. Powered by HDMI source when in display emulator
Form Factor	Extremely compact design
Product Category	Integration & Calibration Tools
Part Number	DVDO-4KSGA-1
