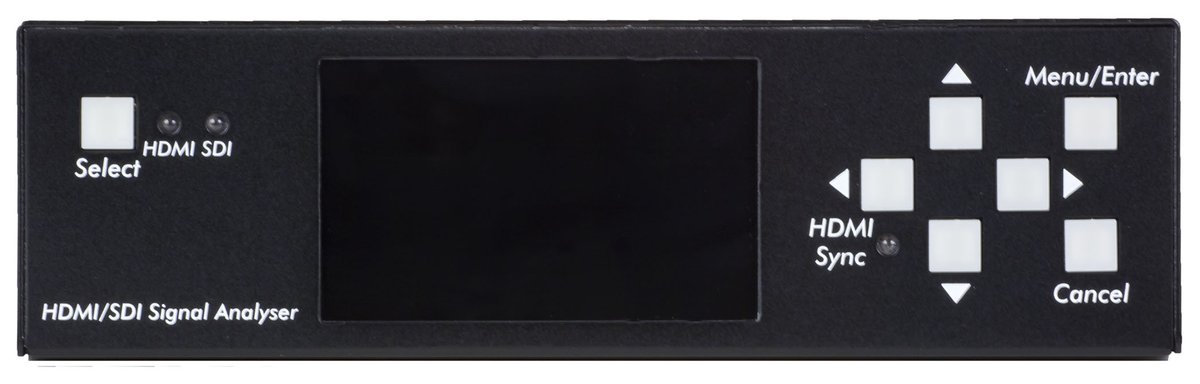

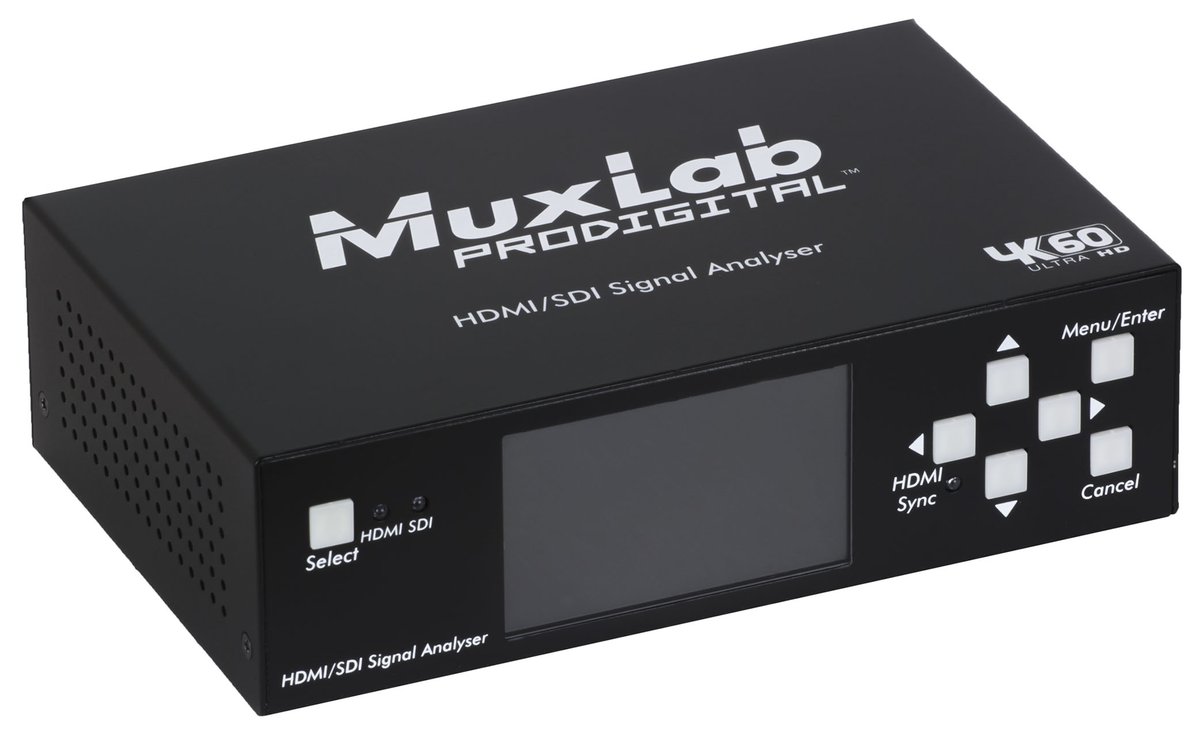

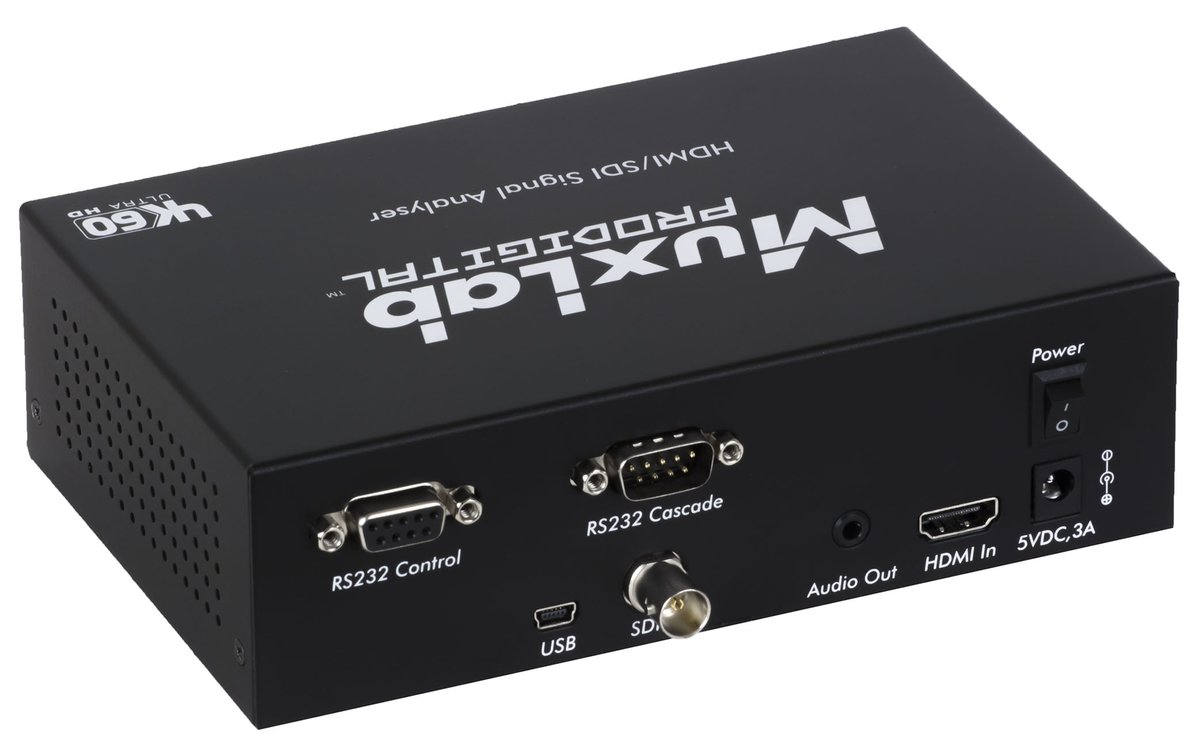

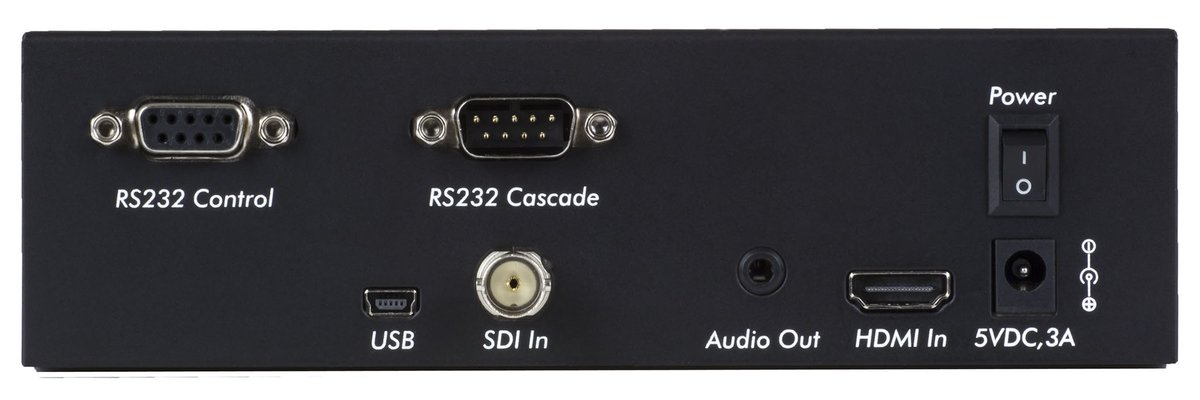

MuxLab 500831 HDMI 2.0/3G-SDI Signal Analyzer

The 500831 analyzes SD, HD, and 3G-SDI and HDMI 2.0 signals across the full resolution range up to 4K at 60Hz 4:4:4, which lets an installer confirm what a source is actually sending rather than what it claims. RGB 4:4:4 and YUV 4:2:2 are both handled.

Paired with the 500830 signal generator it also performs cable testing, so a suspect run can be proven end to end. An internal rechargeable lithium-ion battery gives up to 5 hours of autonomous operation in the field.
