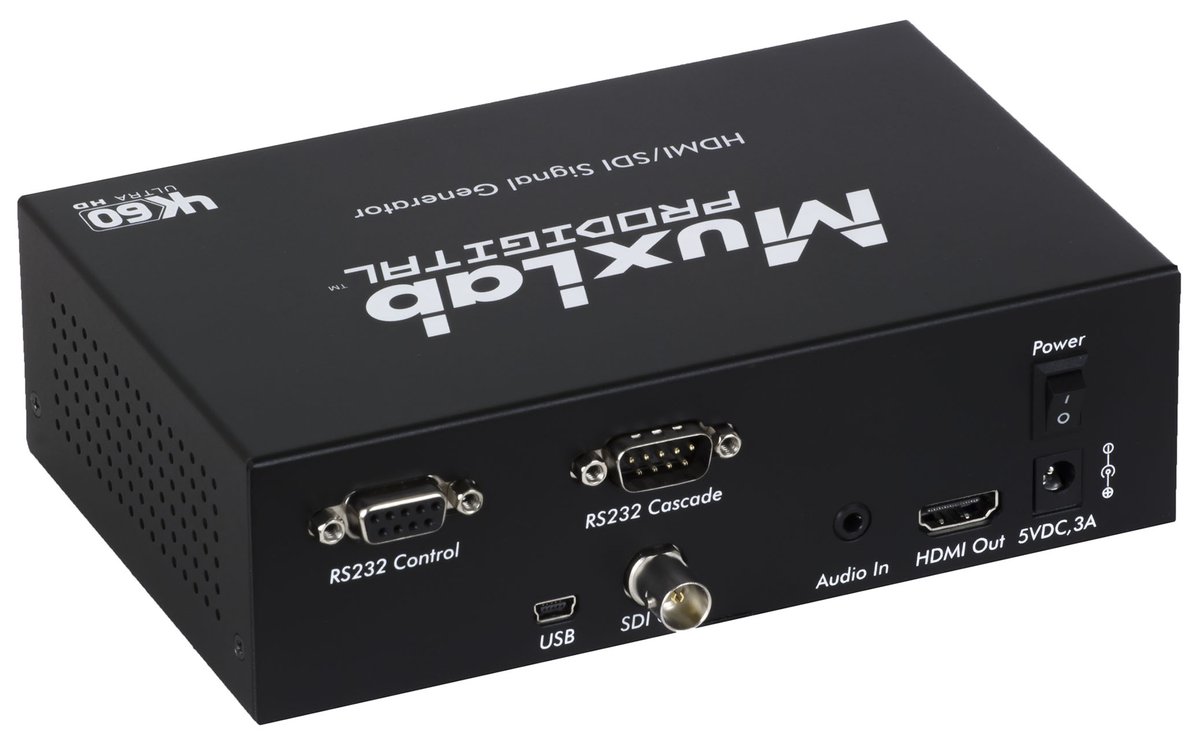

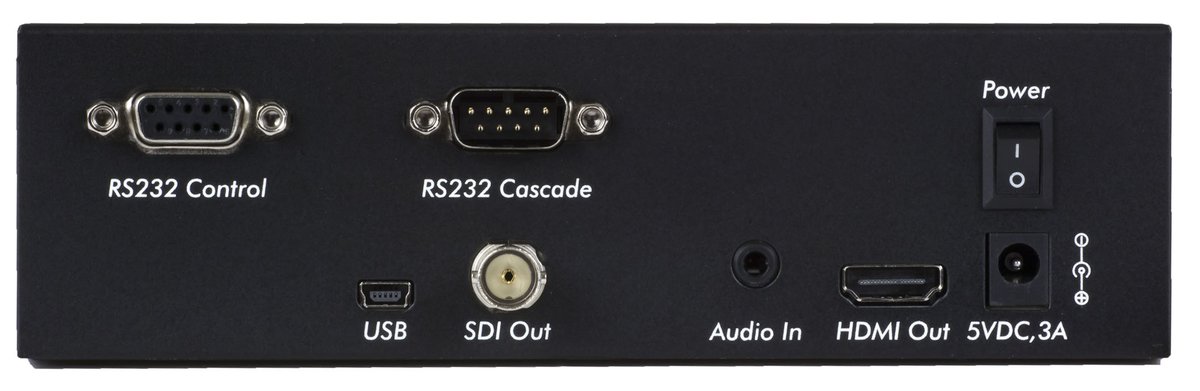

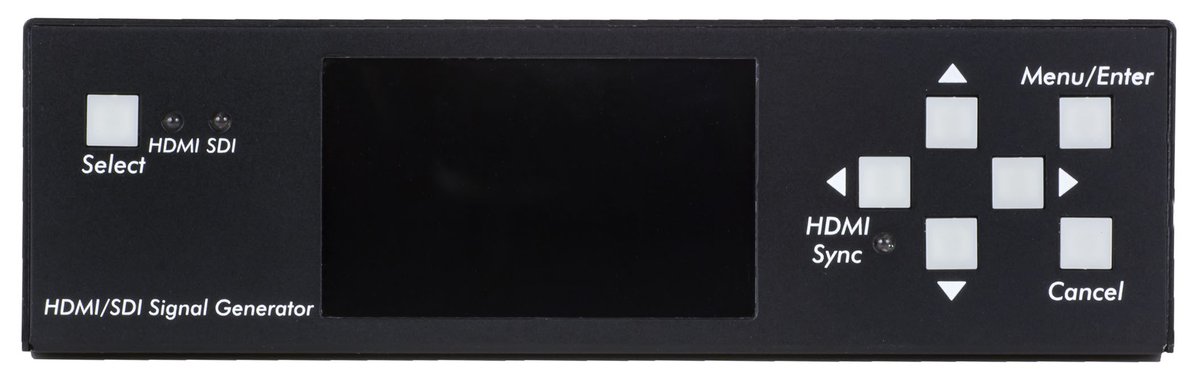

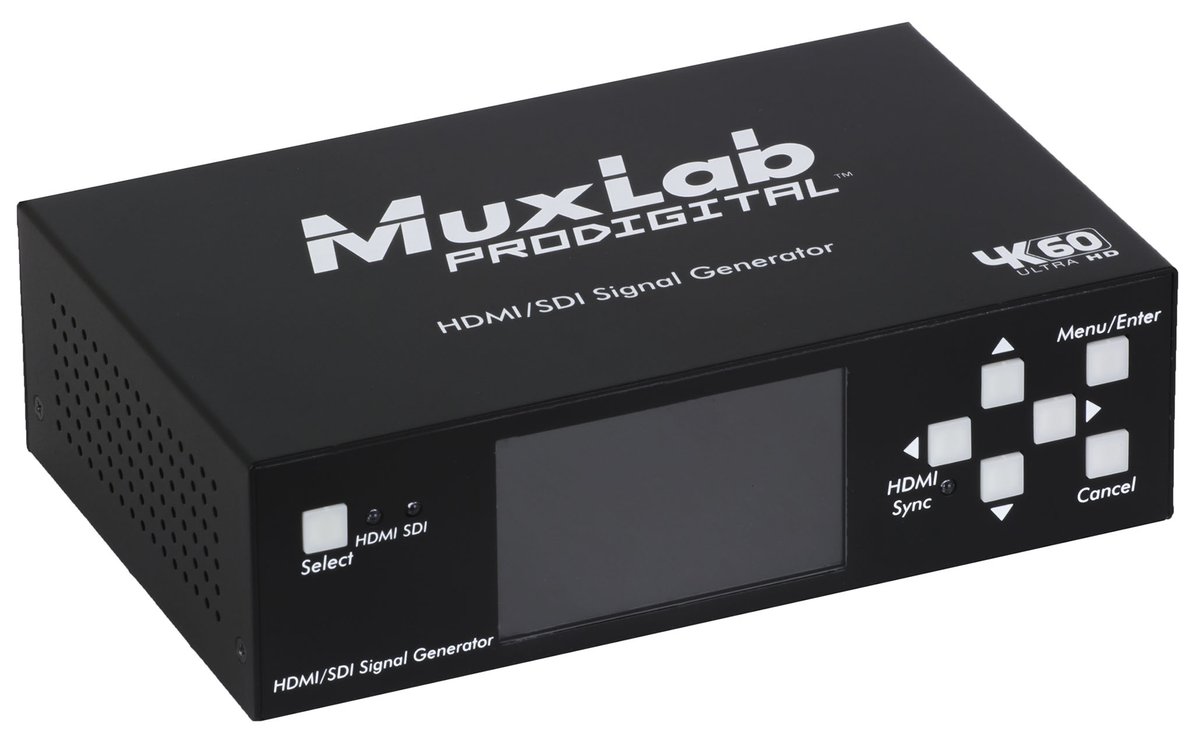

MuxLab 500830 HDMI 2.0/3G-SDI Signal Generator

The 500830 generates SD, HD, and 3G-SDI and HDMI 2.0 test patterns across the full range of resolutions up to 4K at 60Hz 4:4:4, so an installer can validate a sink device and a cable run without a source system present. HDR and 3D are supported.

An internal rechargeable lithium-ion battery gives up to 5 hours of operation, which makes it a genuinely portable commissioning tool rather than a bench instrument. The -V2 version replaces the 3G-SDI capability with 12G-SDI for 4K SDI facilities.

Standard	HDMI 2.0 and 3G-SDI
Video Bandwidth	Up to 18.0GHz (6.0GHz per channel)
HDCP	Support & Control Supports HDCP 2.2 and 1.4, with On/Off control
Color Depth	24bits,30bits,36 bits,48bits
Color	Space RGB444,YUV444,YUV422,YUV420 (HDMI 2.0 only) Resolution/Refresh Rate Presets 32 preset resolutions: 4K/30, 4K/25, 4K/24, HDMI2.0 4K/60, HDMI2.0 4K/60, 720P-3D, 1080P-3D,
Audio	Bit Depth 16bit,20bit,24bit
Dimensions	6.38" x 1.73" x 3.74" (162mm x 44mm x 95mm)
Weight	1.14lbs (0.52kg)
