Datavideo PTC-140T-6 HDBaseT HD PTZ Camera

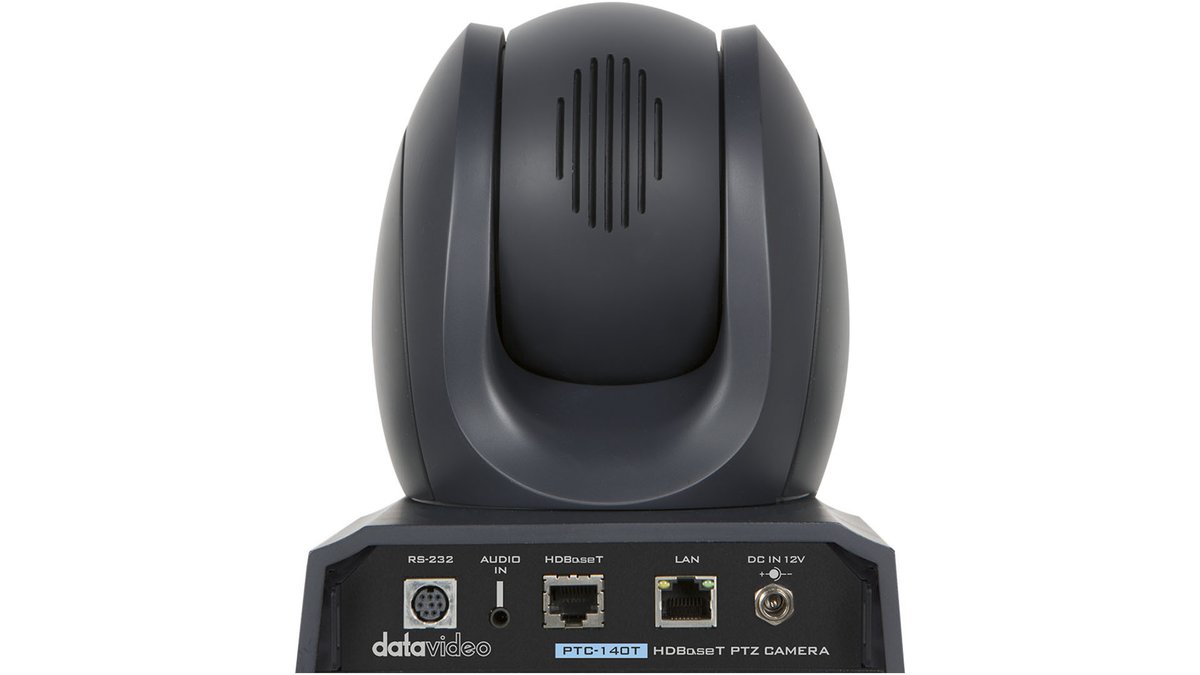

The PTC-140T-6 is Datavideo's HDBaseT PTZ camera in a black finish, built for installs where the camera is far from the rack. Its 1/2.8 inch CMOS sensor shoots Full HD and its 20x optical zoom reaches deep into a room or auditorium. Because it runs over HDBaseT, a single cable carries the video, power, control, and tally between the camera and the rack, which cuts a run of separate cables down to one.

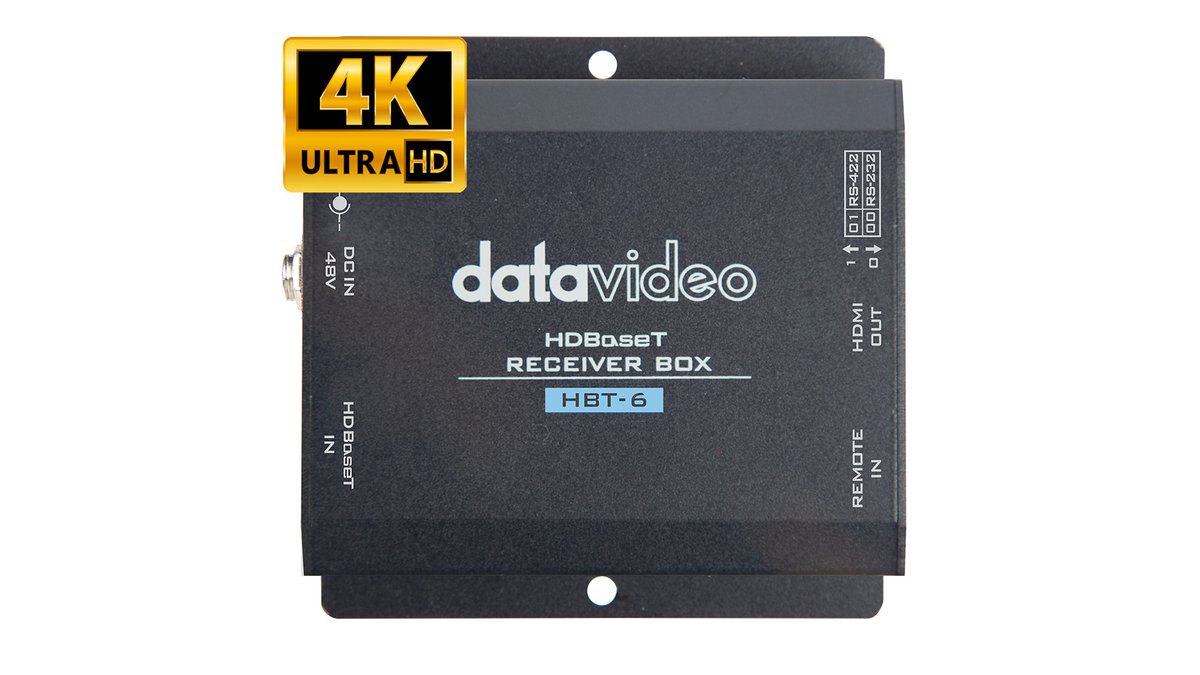

This bundle ships with the HBT-6 receiver for cable runs up to 200 feet, and the receiver breaks the feed back out to HD-SDI and HDMI for the switcher or monitor. The camera outputs 1080p, 1080i, and 720p, carries a tally light for on-air indication, and includes a wireless remote for setup and shot recall.
| Type | HD HDBaseT PTZ camera (black) |
|---|---|
| Image Sensor | 1/2.8 inch CMOS, Full HD 1080p |
| Optical Zoom | 20x (plus 10x digital) |
| HDBaseT | Video, power, control and tally over one cable; HBT-6 receiver included, up to 200 ft |
| Video Outputs | HD-SDI and HDMI |
| Formats | 1080p, 1080i, 720p |
| Control | Tally light; included wireless remote |
