DigiTech Whammy DT
The Whammy DT is a Whammy with a second job. The lower half is the pitch-shifting treadle - Whammy bends, Harmony intervals and Detune, selected on the effect knob and driven by the expression pedal. The upper half is drop tuning: a separate selector and footswitch retune the guitar up or down by as much as seven half steps, or a full octave, and hold it there for the whole song without touching a peg.
A momentary switch turns the Drop Tune footswitch into a performance control, so it engages only while held. That is what makes hammer-on and pull-off style shifts possible mid-solo - press for a chord jump on a bridge, release and the tuning snaps back. Harmony settings add the dry signal to the effect; Whammy and Detune settings do not.
| Effect | Pitch shift, harmony, detune, plus independent drop tuning |
|---|---|
| Drop Tune Range | Up or down 7 half steps, or a full octave |
| Controls | Whammy effect selector, Drop Tune effect selector, expression pedal, effect switches, momentary switch |
| Frequency Response | 20-20,000 Hz |
| Sample Rate | 44.1 kHz |
| A/D and D/A Conversion | 24 bit |
| Signal to Noise Ratio | Greater than -105 dB (A weighted) |

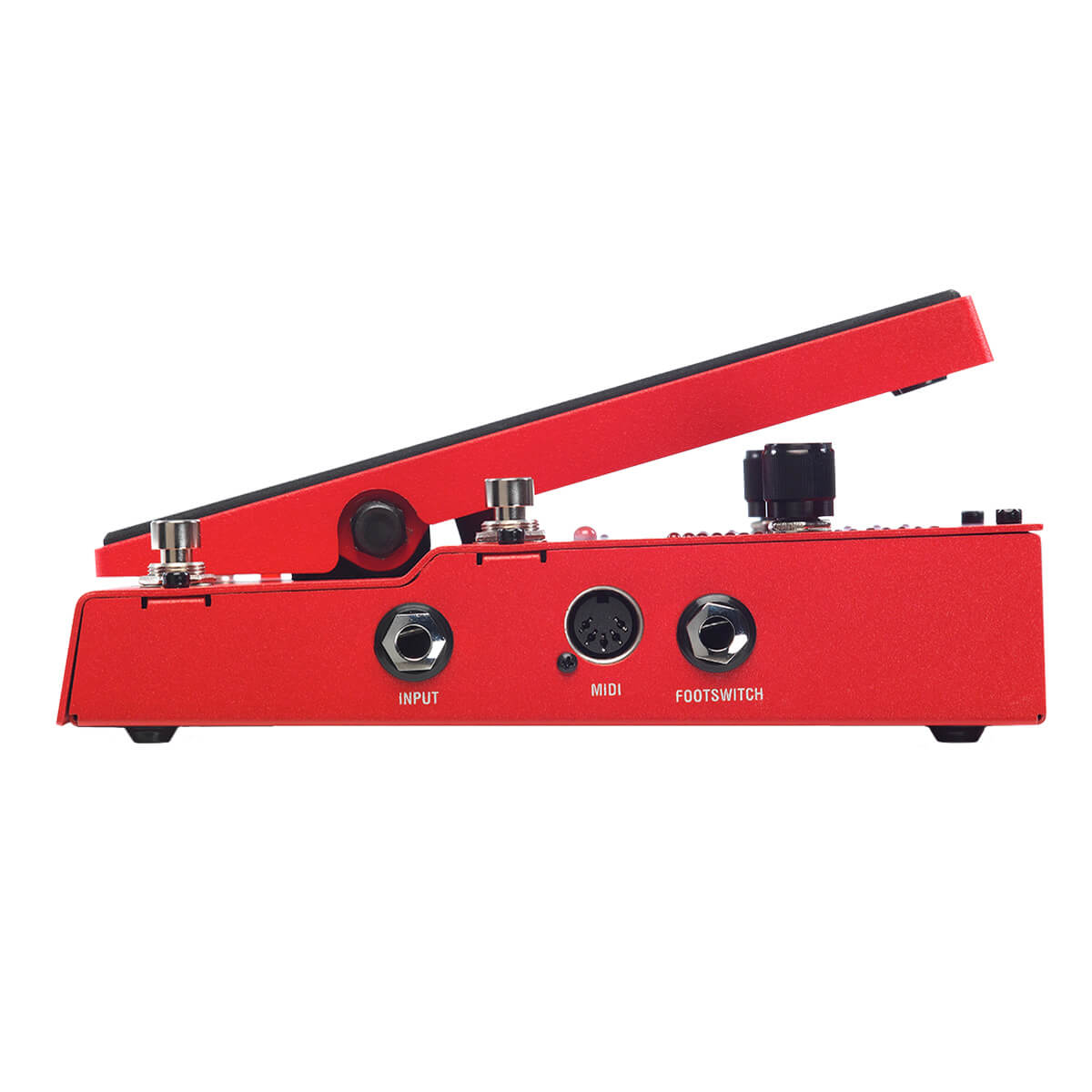

| MIDI | 5-pin DIN input |
| Audio I/O | 1/4 in unbalanced TS; input 1 MOhm, output 1 kOhm |
| Power | 9 VDC external adapter, 2.4 W (under 265 mA) |
| Dimensions | 197 x 165 x 64 mm (7.75 x 6.5 x 2.5 in) |
