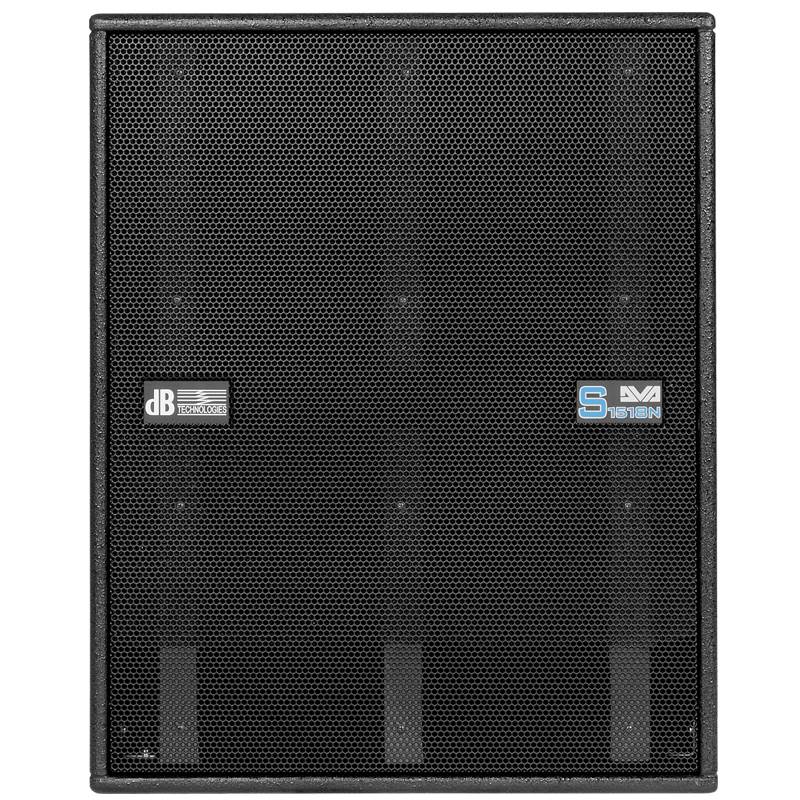

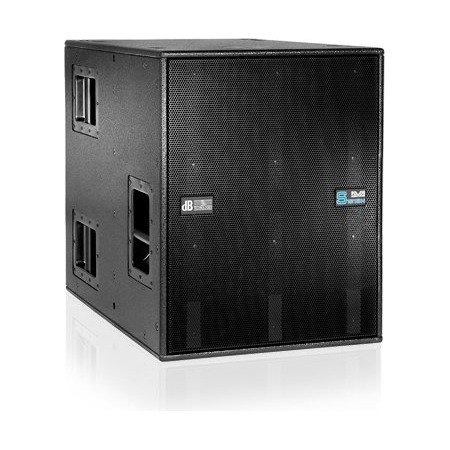

dBTechnologies DVA S1518N Active Bandpass Subwoofer

dBTechnologies builds the DVA S1518N for professional sound reinforcement. It is a Active Bandpass Subwoofer driven by a Digipro G2 amplifier in Class D for a maximum SPL of 138 dB. Frequency response is 39 - 120 Hz with Omnidirectional, Cardiod Option with DSP setup coverage. The low section uses 18 in.

Power is 1.5 kW SMPS. The enclosure is Multiplex plywood. Handles are 3x Per Side. It takes a M20. Rigging is via integrated for SRK10 fly kit. It weighs 46 kg (101.41 lbs).

Speaker Type	Active Bandpass Subwoofer
Frequency Response [+/- 3dB]	39 - 120 Hz
Max SPL	138 dB
Directivity	Omnidirectional, Cardiod Option with DSP setup
LF	18 in
Voice Coil LF	4 in
Amp Technology	Digipro G2
Amp Class	Class D
