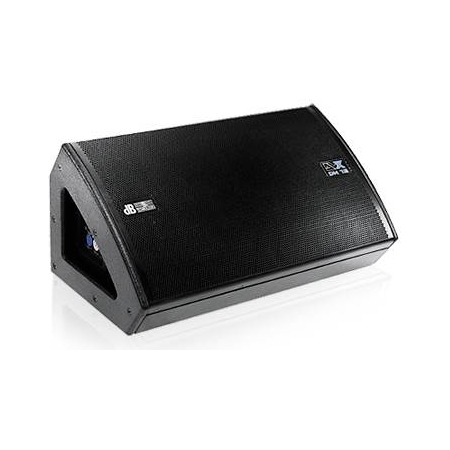

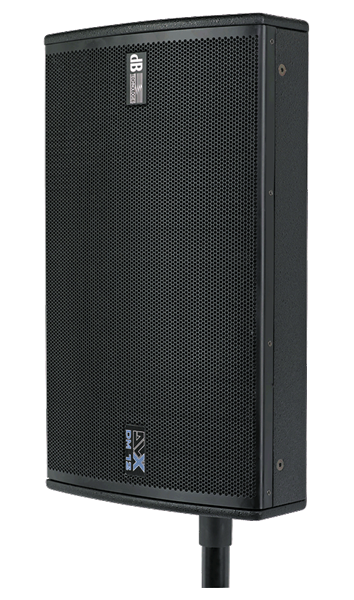

dBTechnologies DVX DM12 2-Way Active Stage Monitor

dBTechnologies builds the DVX DM12 for professional sound reinforcement. It is a 2-Way Active Stage Monitor driven by a Digipro amplifier in Class D and 1500 W peak for a maximum SPL of 131 dB. Frequency response is 68 - 19.000 Hz. Response reaches 55 - 20.000 Hz with 40x90 deg coverage. The low section uses 12 in and the high section 1.4 in.

The enclosure is Multiplex plywood. Rigging is via 6x M10 4x Quick-Relase Pins. It weighs 17.5 kg (55.12 lbs).

Speaker Type	2-Way Active Stage Monitor
Frequency Response [-10dB]	55 - 20.000 Hz
Frequency Response [+/- 3dB]	68 - 19.000 Hz
Max SPL	131 dB
HF	1.4 in
Type HF	Neodymium Compression Driver
Voice Coil HF	Titanium 2.5 in
Directivity	40x90 deg
