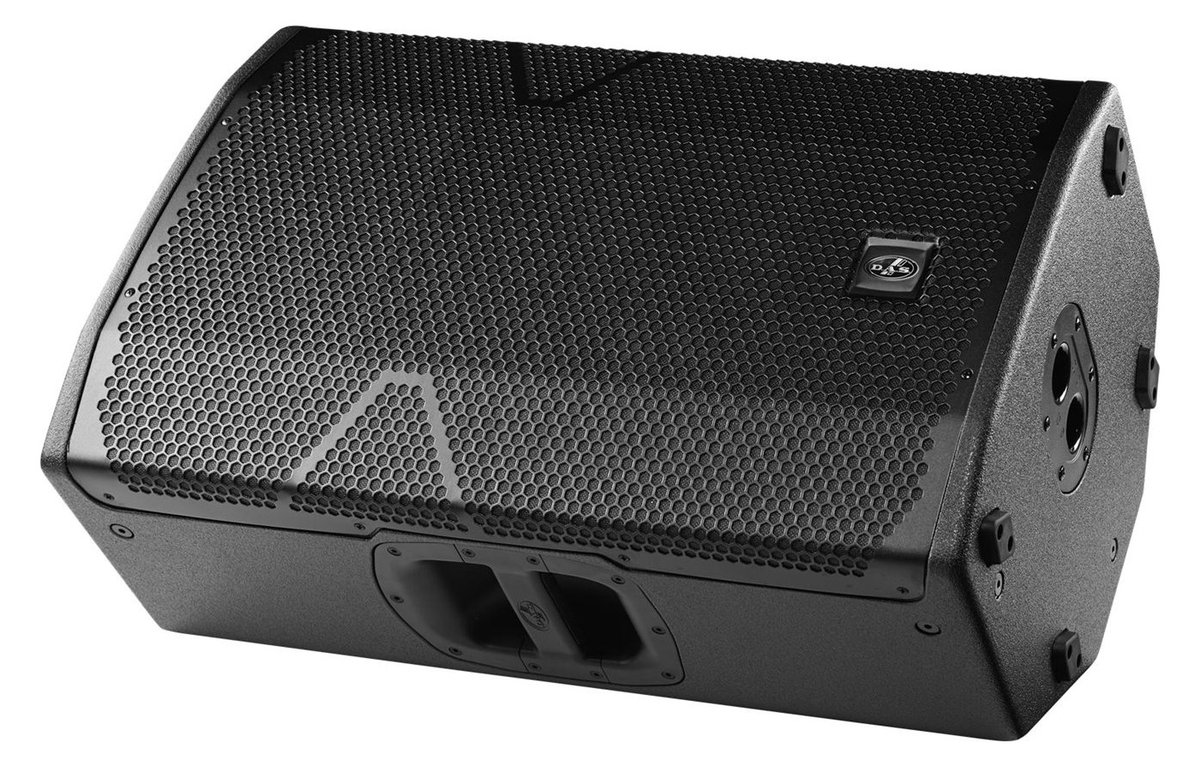

DAS Audio VANTEC-12A Powered Stage Monitor

The DAS Audio VANTEC-12A is a powered stage monitor built around the 12F4 low-frequency driver with the M-28 compression driver on a BC-95 waveguide. It covers 60 Hz - 20 kHz, and it reaches 135 dB peak at one metre. Nominal coverage is 90 deg horizontal by 50 deg vertical.

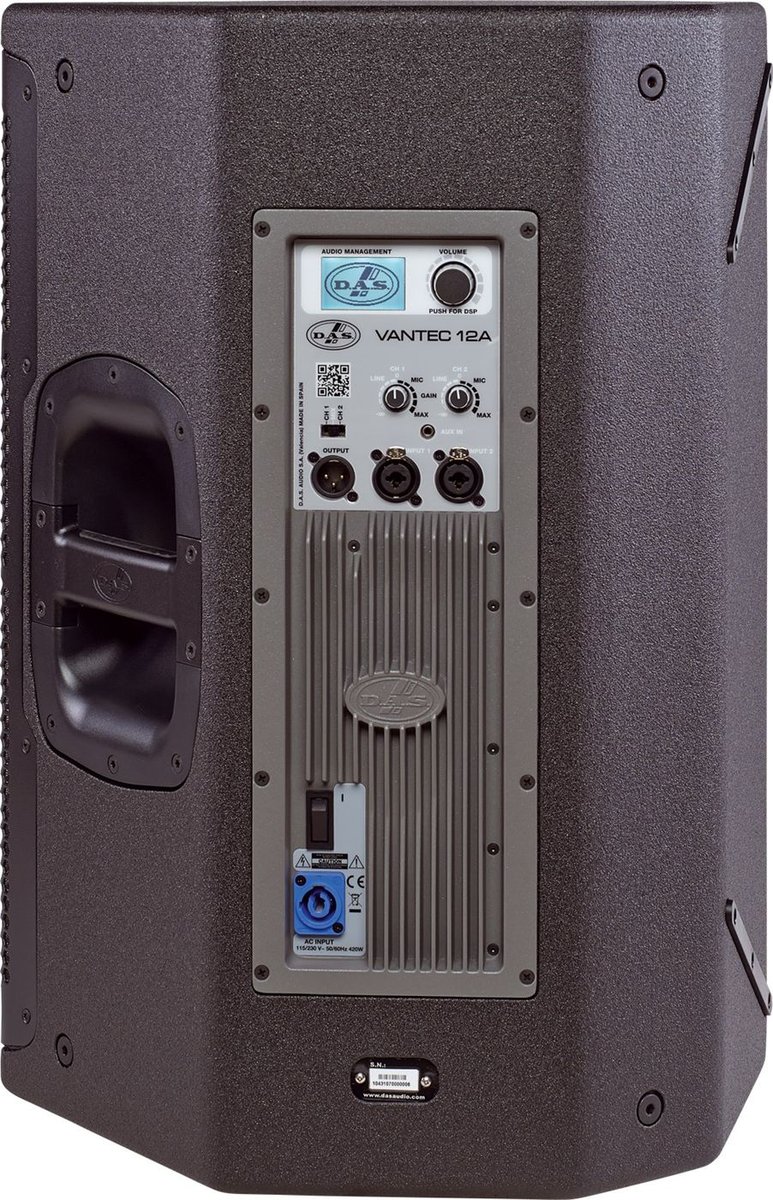

Amplification is on board, rated 750 W continuous and 1500 W peak. Signal comes in on 2 x Female XLR. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 21.5 kg (47.4 lb).
