DAS Audio VANTEC-15 Two-Way Passive Loudspeaker

The DAS Audio VANTEC-15 is a two-way passive loudspeaker built around the M-28 low-frequency driver with the 15FV compression driver on a BC-95 waveguide. It covers 60 Hz - 20 kHz, and it reaches 135 dB peak at one metre. Nominal coverage is 90 deg horizontal by 50 deg vertical.

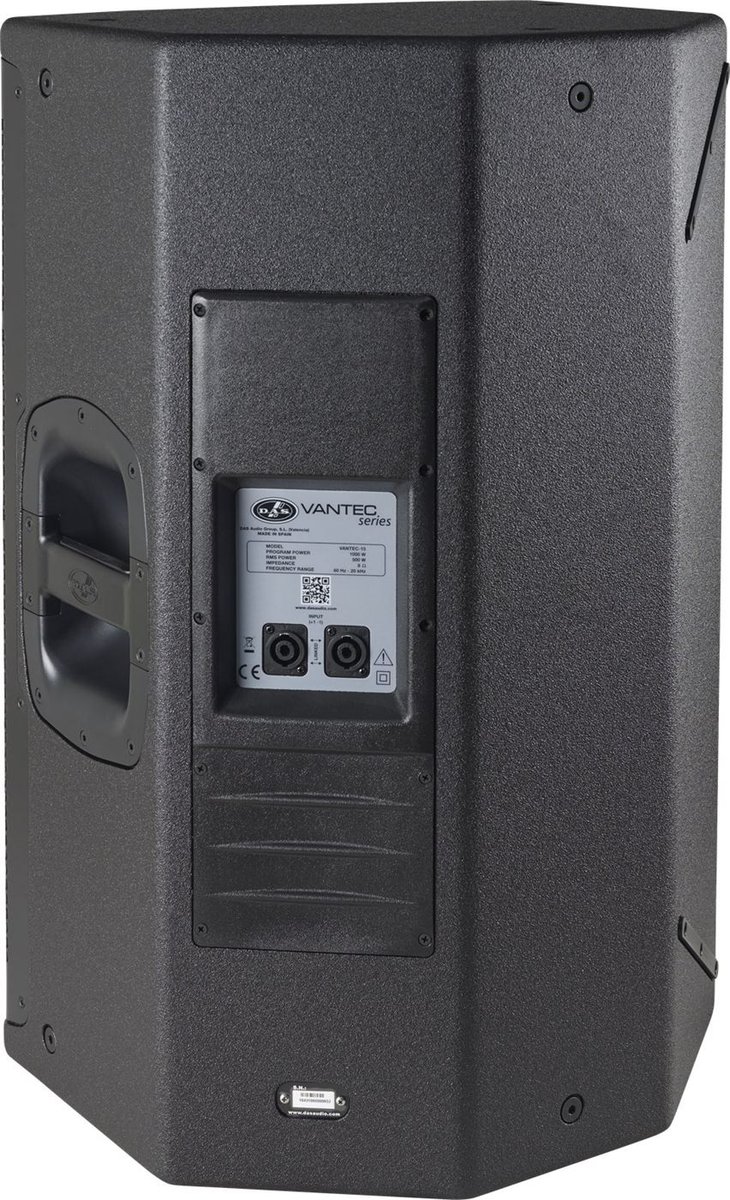

It is a passive box, 8 ohms nominal, handling 500 W RMS, so plan amplifier and processing to suit. Signal comes in on 1 x speakON NL4. The enclosure is built in Birch Plywood, finished in ISO-flex Paint. Rigging provision: M10 Rigging Points. Net weight is 23.5 kg (51.8 lb).

Frequency Range (-10 dB)	60 Hz - 20 kHz
Horizontal Coverage (-6 dB)	90 deg
Vertical Coverage	50 deg
Nominal Impedance	8 ohms
RMS Power Handling	500 W
Peak Power Handling	2000 W
On-axis Sensitivity 1W/1 m	99 dB SPL
Maximum Peak SPL at 1 m	135 dB
