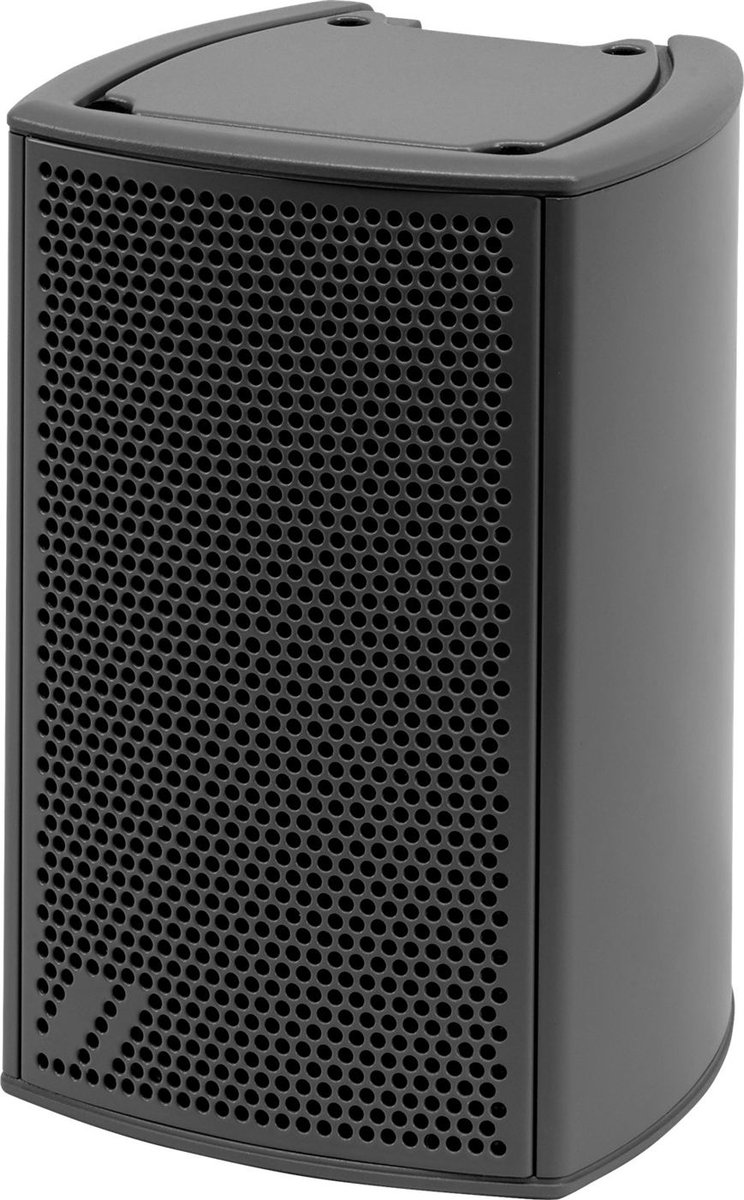

DAS Audio Q-23-T Passive Install Loudspeaker

The DAS Audio Q-23-T is a passive install loudspeaker. It covers 150 Hz - 20 kHz, and it reaches 112 dB SPL peak at one metre. Nominal coverage is 120 deg horizontal by Switchable: 90 deg -70 deg vertical.

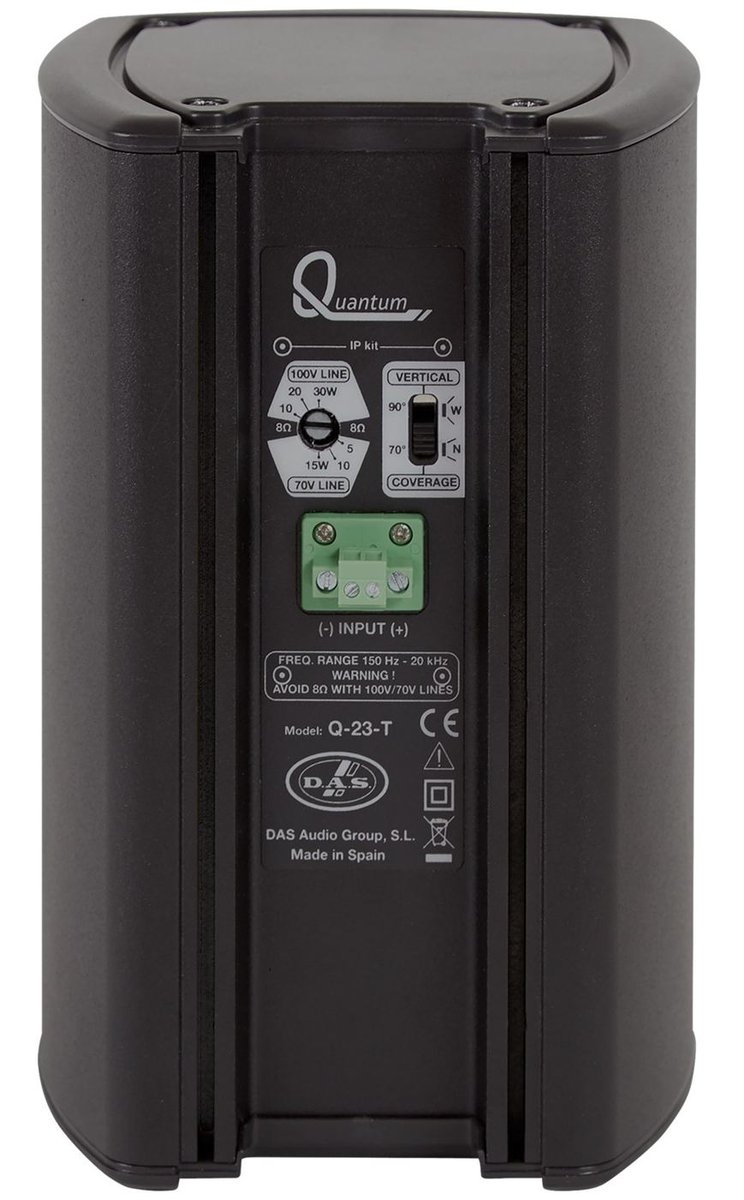

It is a passive box, 8 ohms nominal, handling 40 W RMS, so plan amplifier and processing to suit. Signal comes in on 4-way Phoenix 3.8 mm. A line transformer is fitted for constant-voltage systems, tapped 70 V at 5 W - 10 W - 15 W and 100 V at 10 W - 20 W - 30 W. The enclosure is built in Aluminum. It carries an IP66 rating for outdoor and wash-down sites. Net weight is 2.8 kg (6.2 lb).
