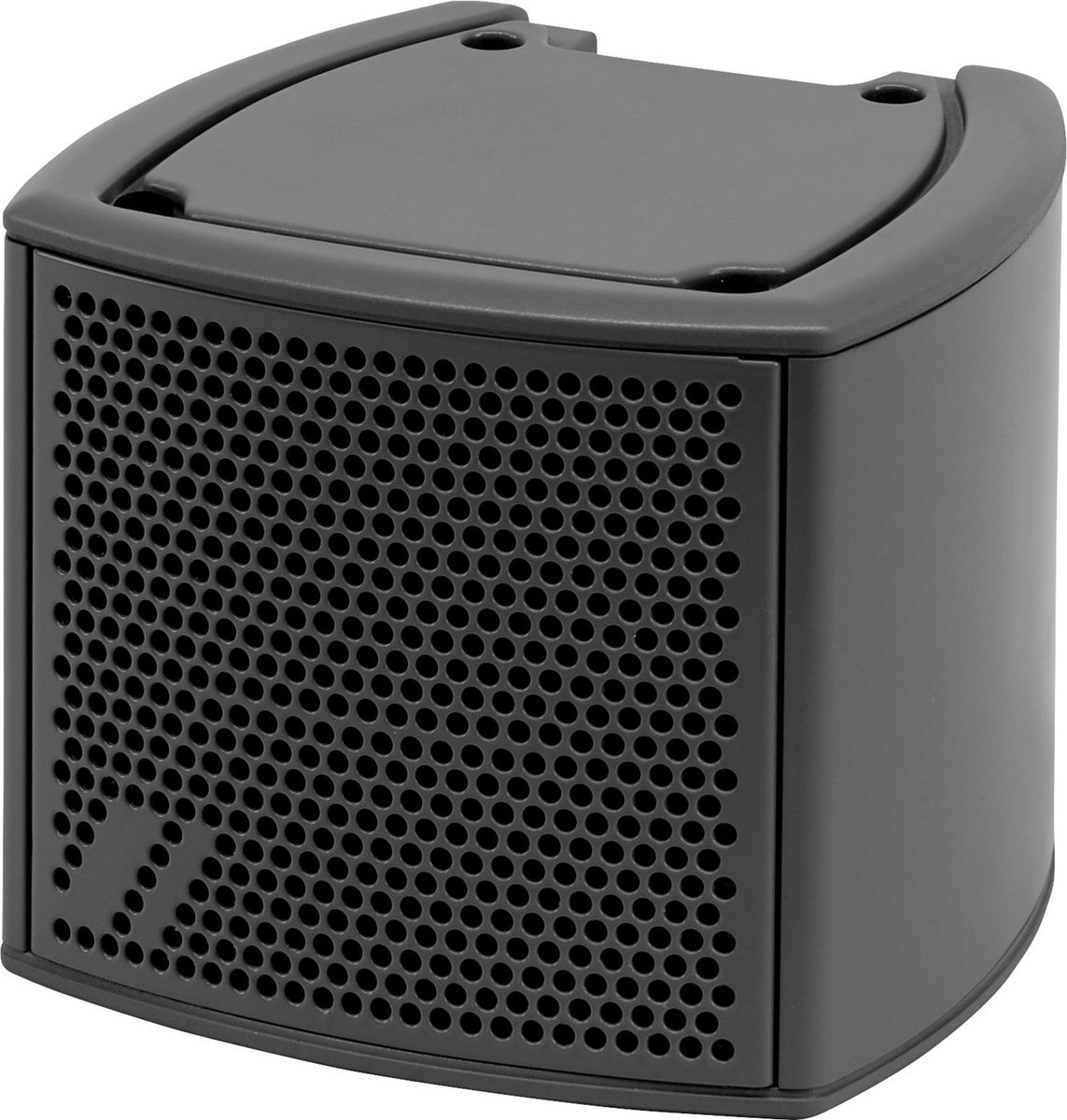

DAS Audio Q-3-T Passive Install Loudspeaker

The DAS Audio Q-3-T is a passive install loudspeaker. It covers 150 Hz - 20 kHz, and it reaches 106 dB SPL peak at one metre. Nominal coverage is 120 deg horizontal by 120 deg vertical.

It is a passive box, 8 ohms nominal, handling 20 W RMS, so plan amplifier and processing to suit. Signal comes in on 4-way Phoenix 3.8 mm. A line transformer is fitted for constant-voltage systems, tapped 70 V at 3.5 W - 7.5 W - 10 W and 100 V at 7.5 W - 15 W - 20 W. The enclosure is built in Aluminum. It carries an IP66 rating for outdoor and wash-down sites. Net weight is 1.6 kg (3.5 lb).

Frequency Range (-10 dB)	150 Hz - 20 kHz
Horizontal Coverage (-6 dB)	120 deg
Vertical Coverage	120 deg
Nominal Impedance	8 ohms
RMS Power Handling	20 W
Peak Power Handling	80 W
On-axis Sensitivity 1W/1 m	87 dB SPL
Maximum Peak SPL at 1 m	106 dB SPL
