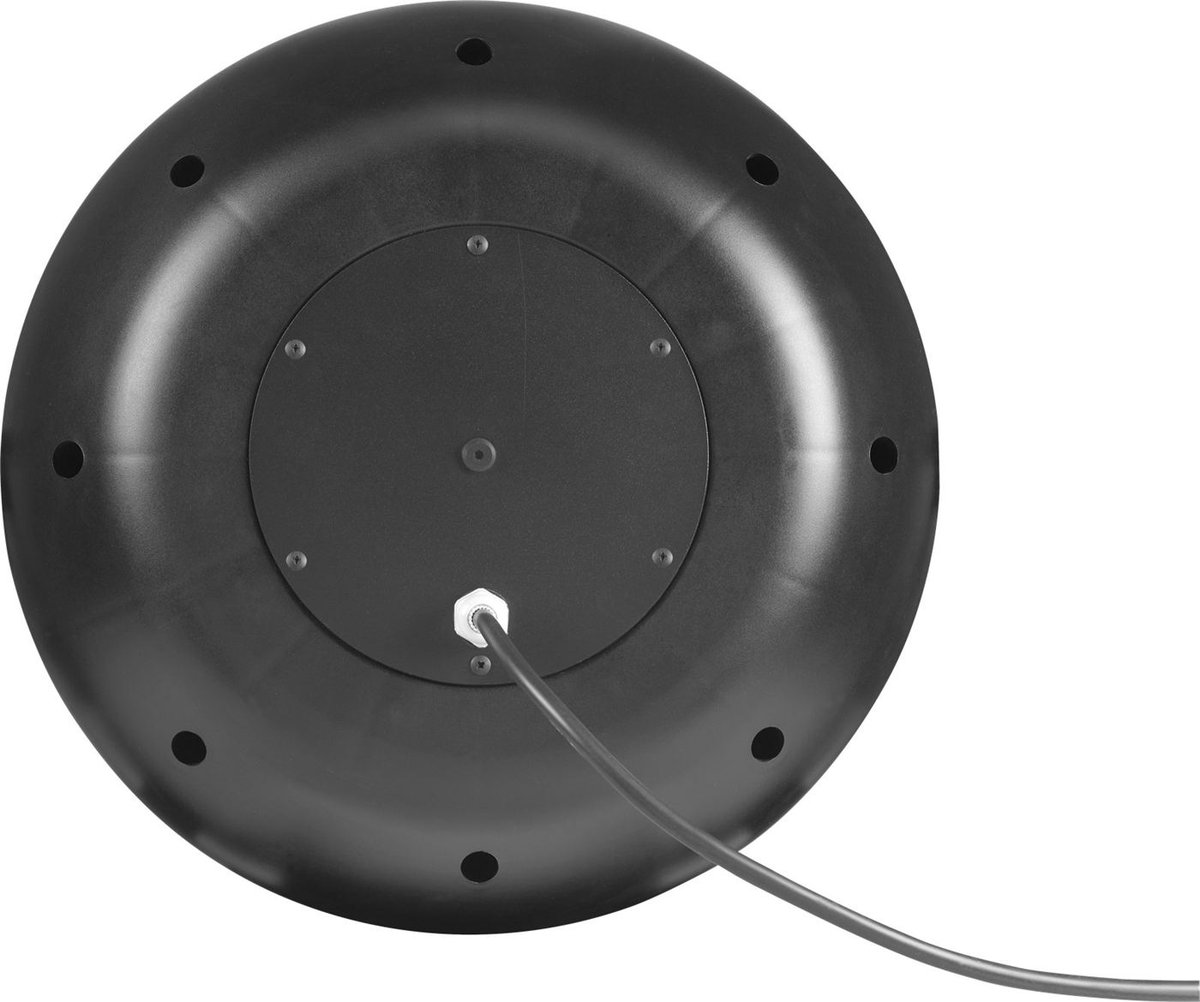

DAS Audio OVI-12-IP54 Passive Pendant Loudspeaker

The DAS Audio OVI-12-IP54 is a passive pendant loudspeaker built around the 12MX low-frequency driver with the M-34 high-frequency driver. It covers 63 Hz - 20 kHz, and it reaches 130 dB peak at one metre. Nominal coverage is 90 deg horizontal by 90 deg vertical.

It is a passive box, 8 ohms nominal, handling 300 W RMS, so plan amplifier and processing to suit. Signal comes in on Spring Terminals. The enclosure is built in Polypropylene. It carries an IP54 rating for outdoor and wash-down sites. Net weight is 10.5 kg (23.2 lb).

Frequency Range (-10 dB)	63 Hz - 20 kHz
Horizontal Coverage (-6 dB)	90 deg
Vertical Coverage	90 deg
Nominal Impedance	8 ohms
RMS Power Handling	300 W
Peak Power Handling	1200 W
On-axis Sensitivity 1W/1 m	96 dB SPL
Maximum Peak SPL at 1 m	130 dB
