DAS Audio Integral A1602 2-Channel Install Amplifier

The Integral A1602 tops the two-channel install amplifier line at 2 x 800 W into 4 ohms in a 2U Class D chassis. A universal switching supply and auto-standby function keep power draw low between shows or dayparts. Bridged, the two channels deliver a single 1600 W output for 70V or 100V distributed lines, enough for larger zones off one amplifier.

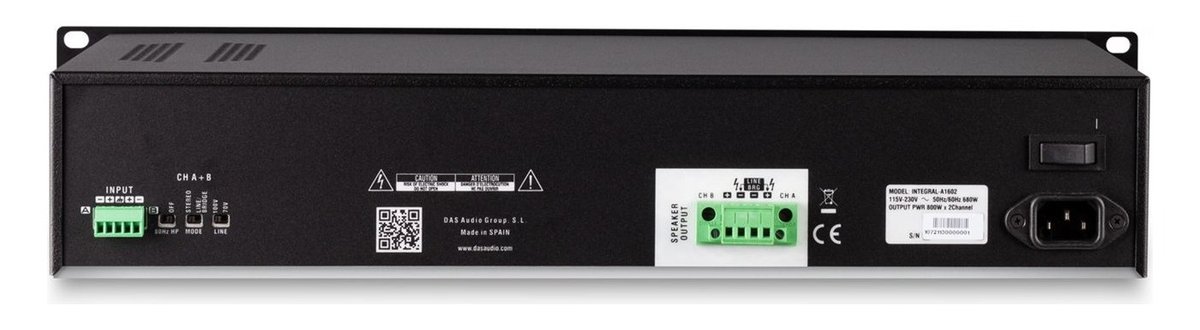

Audio and speaker connections use euro-block terminal blocks with an IEC AC inlet. The rear panel switches stereo/bridge mode and can engage an 80 Hz, 12 dB/octave high-pass filter. Front LEDs report power, protect/standby and signal/clip status.

Power (4 ohms)	2 x 800 W
Power (100V/70V, bridged)	1 x 1600 W
Amplifier Channels	2
Output Circuitry	Class D
Frequency Response	20 Hz - 30 kHz (+0 / -0.5 dB)
Voltage Gain	32.5 dB
Dimensions (H x W x D)	88 x 483 x 208 mm (3.5 x 19.0 x 8.2 in)
Net Weight	3.5 kg (7.7 lb)
