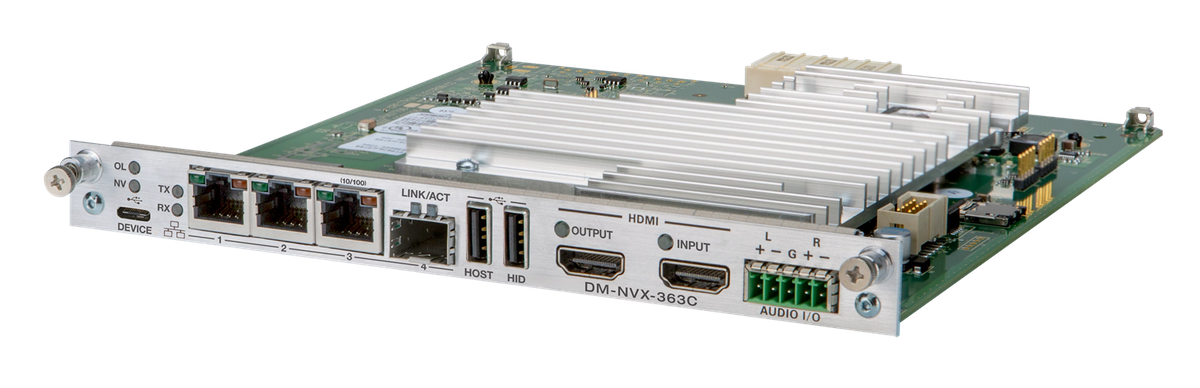

Crestron DM-NVX-363C DM NVX 4K60 4:4:4 HDR Network AV Encoder/Decoder Card with Downmixing and

The Crestron DM-NVX-363C is a DM NVX 4K60 4:4:4 HDR Network AV Encoder/Decoder Card with Downmixing and Dante Audio. DM NVX carries the signal as a stream over standard Gigabit Ethernet, which makes the network switch the matrix and lets a system grow by adding endpoints instead of replacing a chassis.

Copy protection is HDCP 2.3, AES-128, PKI. Streaming uses RTP, SDP. Video Resolutions: Up to 4096x2160@60Hz (DCI 4K60); 4:4:4 color sampling; HDR10, HDR10+, Dolby Vision, and Deep Color support. It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.

  • Output Signal TypesHDMI with HDR10, HDR10+, Dolby Vision, Deep Color
  • Video ResolutionsUp to 4096x2160@60Hz (DCI 4K60); 4:4:4 color sampling; HDR10
  • Weight15.1 oz
  • Streaming ProtocolsRTP, SDP
  • Copy ProtectionHDCP 2.3, AES-128, PKI
Video ResolutionsUp to 4096x2160@60Hz (DCI 4K60); 4:4:4 color sampling; HDR10, HDR10+, Dolby Vision, and Deep Color support
Audio FormatsMultichannel (up to 8-channel LPCM or encoded HBR 7.1 surround sound), 2-channel LPCM
Streaming ProtocolsRTP, SDP
Copy ProtectionHDCP 2.3, AES-128, PKI
Input Signal Types with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support (Dual-Mode DisplayPort interface and DVI compatible)
Output Signal TypesHDMI with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support (DVI compatible)
ContainerMPEG-2 transport stream (.ts)
Session InitiationMulticast via secure RTSP
Weight15.1 oz (427 g)
