Name: Community Professional Biamp Community R.15-3696 Grey Loudspeaker
Brand: Community Professional
Price: 500.00 USD
Availability: InStock

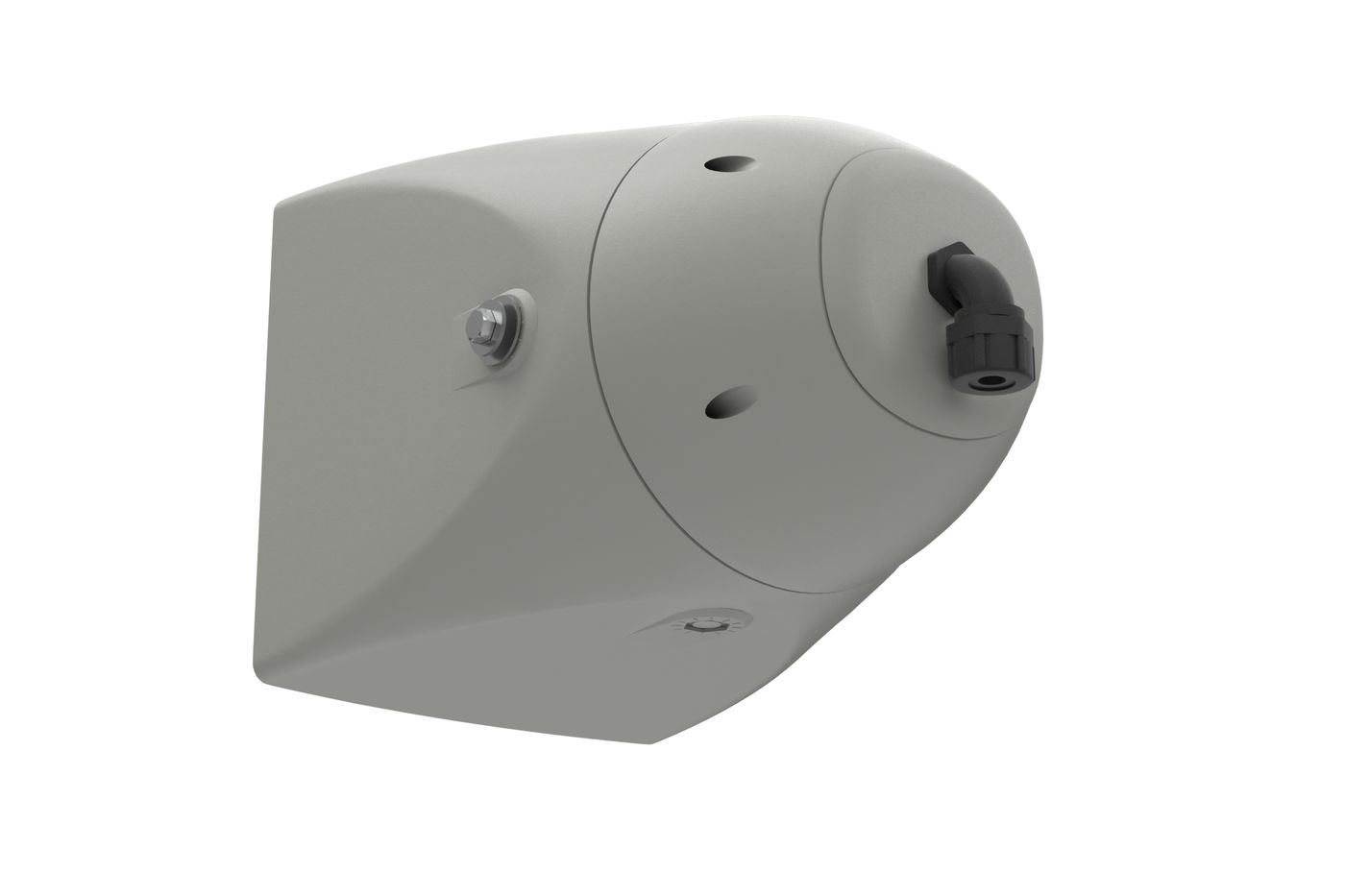

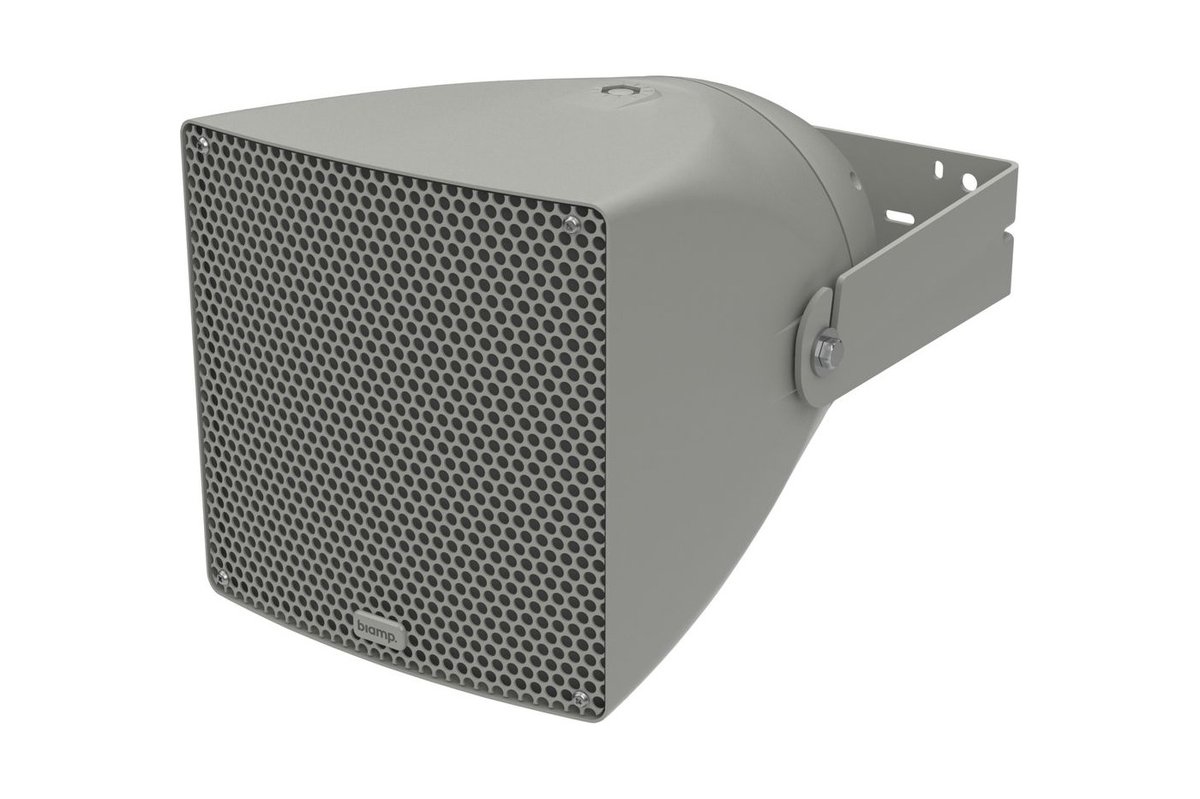

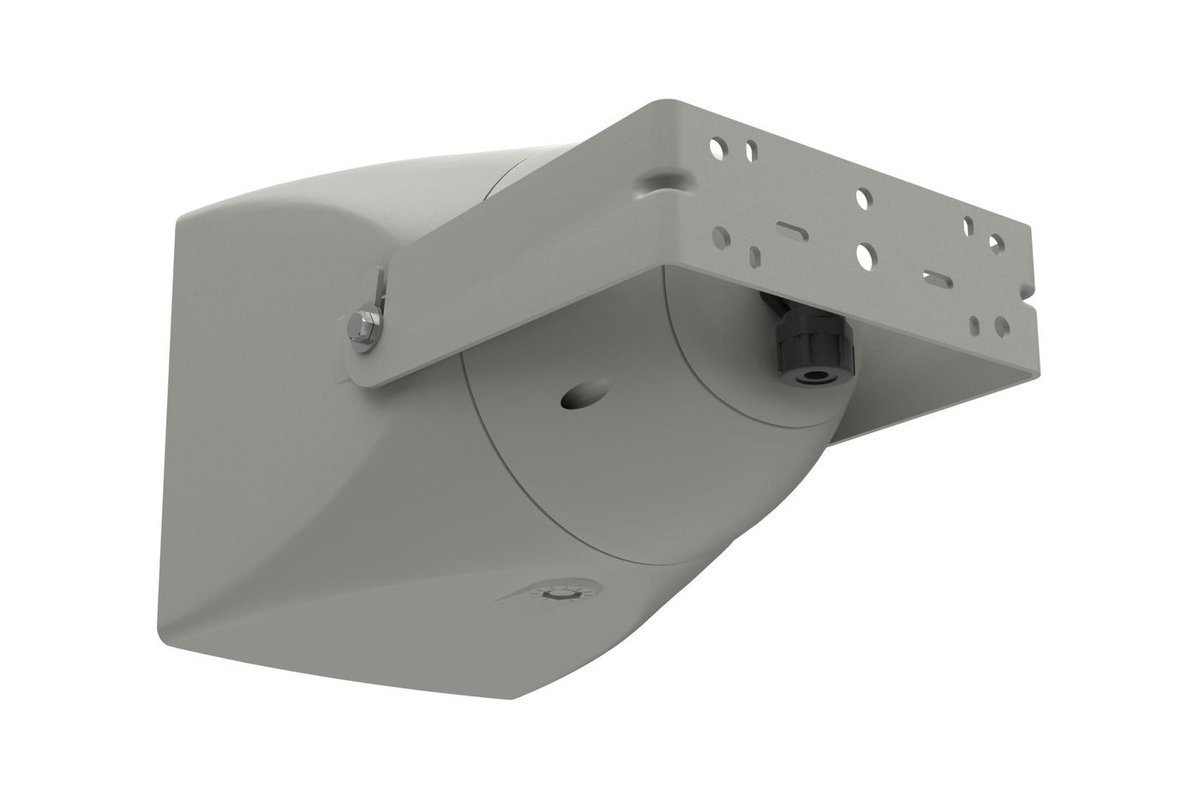

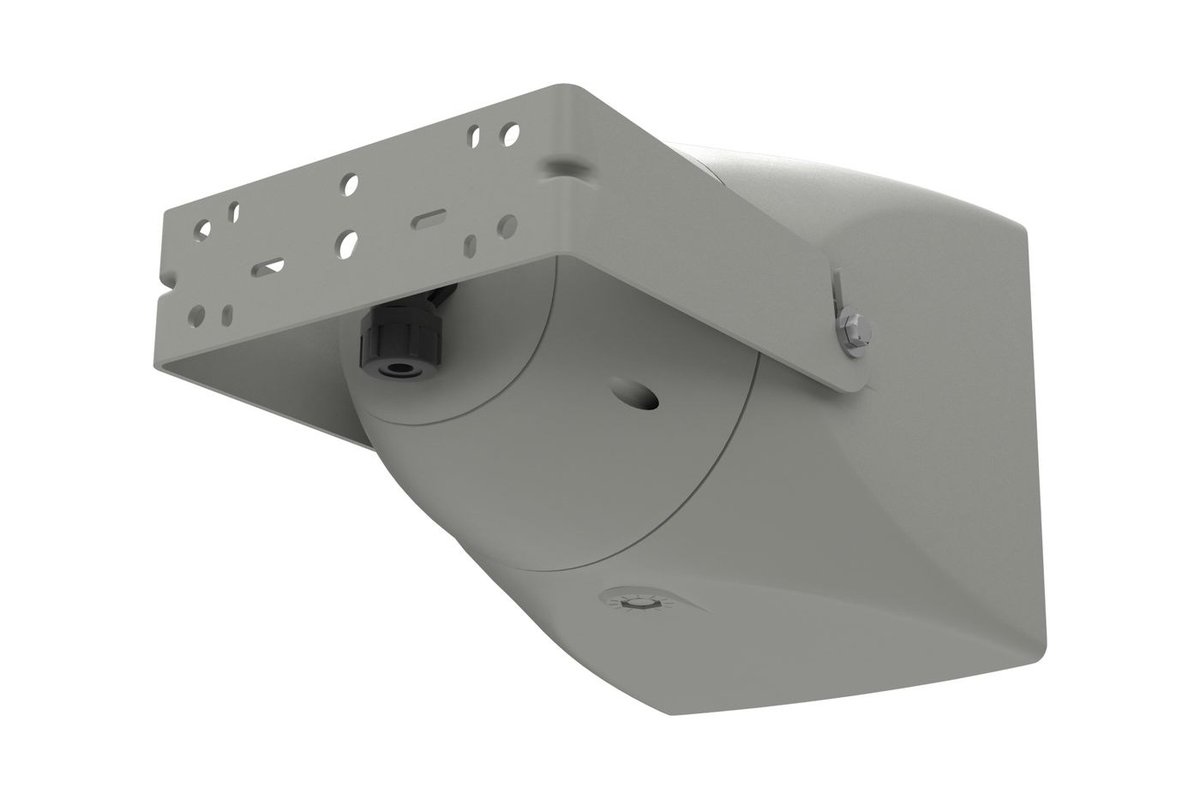

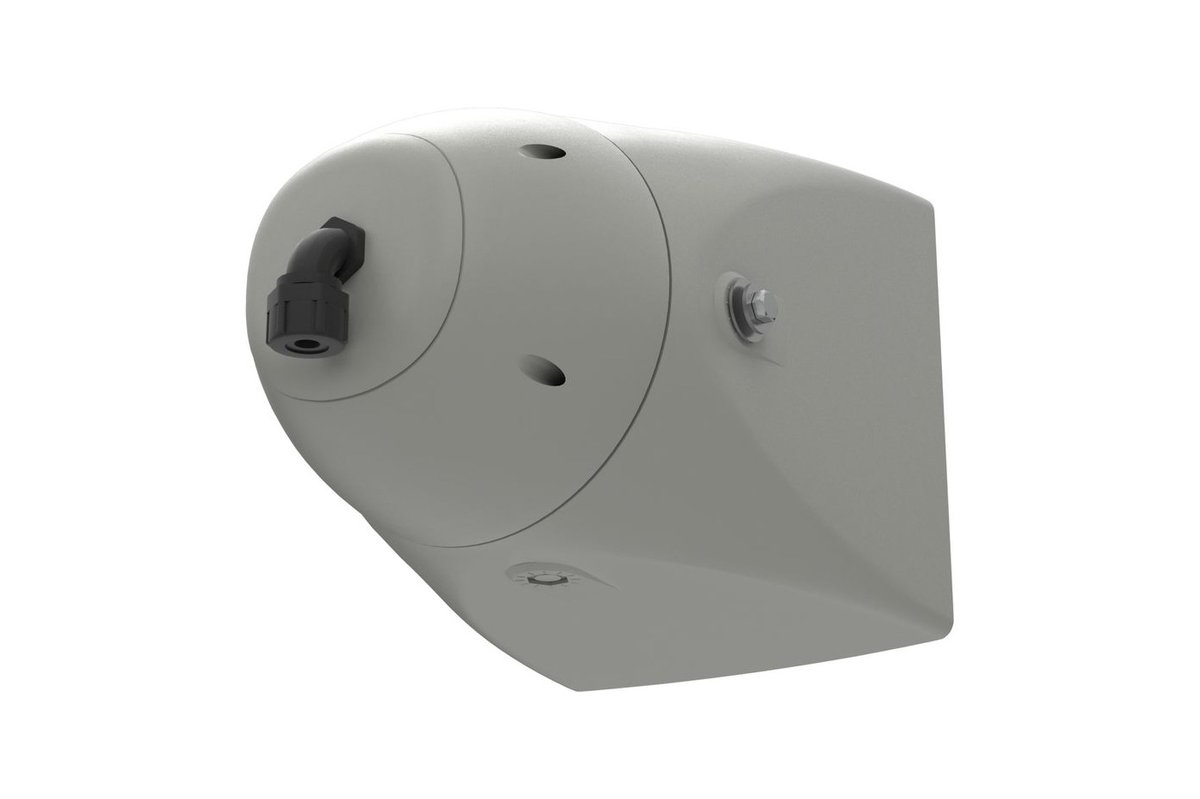

The Biamp Community R.15-3696 Grey is a passive, fully horn-loaded, three-way, full-range, weather resistant loudspeaker built for large-venue and performance systems. The transducer complement is LF 1 x 6.5 inches (165 mm) Woofer with hydrophobic treatment; MR 2 x 2.35 inches (60 mm) MultiSource Waveguide compression drivers. Its operating range is 142 Hz to 19.4 kHz. Sensitivity measures @1m: 103 dB (2.83 V); 100 dB (1 W, 4 ohms).

Power handling is rated at Handling4 Passive 20 V (100 W, 4 ohms rated impedance). Biamp recommends 100 W - 200 W, into 4 ohms (20 V - 28 V) of amplifier power. Control connection is 70 V / 100 V operation jumper. The enclosure is Gray matte, paintable high-impact ABS.

Loudspeaker Type	Passive, fully horn-loaded, three-way, full-range, weather resistant loudspeaker
Transducers	LF 1 x 6.5 inches (165 mm) Woofer with hydrophobic treatment; MR 2 x 2.35 inches (60 mm) MultiSource Waveguide compression drivers
Operating Range	142 Hz to 19.4 kHz
Sensitivity	@1m: 103 dB (2.83 V); 100 dB (1 W, 4 ohms)
Power	Nominal Continuous Power: Handling4 Passive 20 V (100 W, 4 ohms rated impedance)
Beamwidth	Nominal Beamwidth (H x V): 90 deg x 60 deg
Dimensions (H x W x D)	9.25 inches (235 mm) x 9.25 inches (235 mm) x 14 inches (356 mm)
SPL	Nominal Maximum SPL (Processed): Passive; Continuous 116 dB; Peak 122 dB; Rated Maximum SPL (Processed); Opt EQ: Continuous 116 dB; Peak 128 dB; No EQ: Continuous 118 dB
