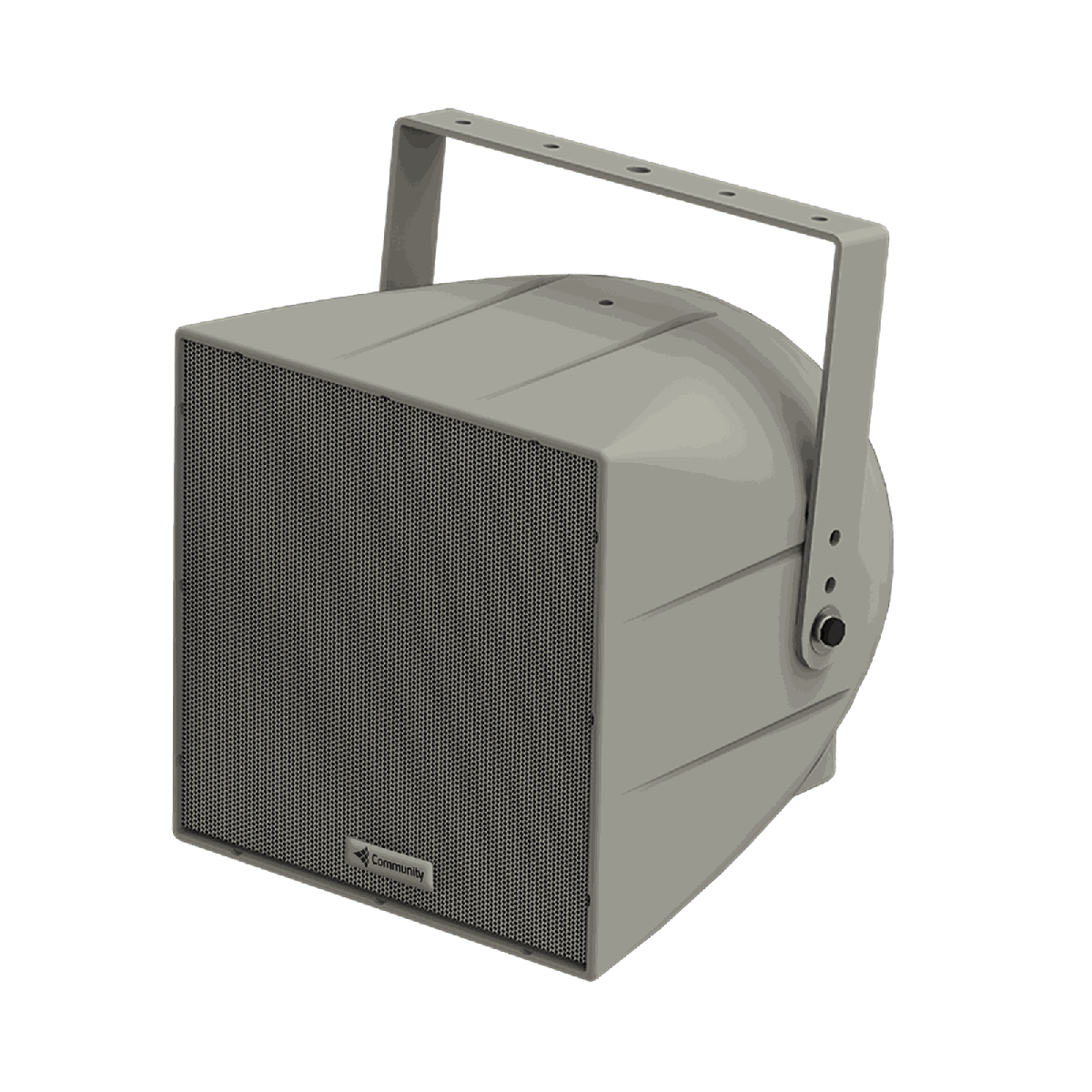

Community Professional Biamp Community R.25-94TZ Loudspeaker

The Biamp Community R.25-94TZ is a two-way, 8-inch fullrange weather-resistant loudspeaker built for large-venue and performance systems. Drivers are LF 1 x 8 inch; HF 1 x 0.75 inch. The transducer complement is LF 1 x 8 inch (203mm) carbon ring, hydrophobic cone, 2.5 inch (64mm); HF 1 x 3/4 inch (19mm) exit, non-metallic Ferrofluid-cooled comp driver. Its operating range is 100 Hz - 16 kHz.

Power handling is rated at Passive: 40V; 200W @ 8 Ohms (800W peak). Nominal impedance is 8 ohms (Various). Mounting provision: Five (5) M8 rigging points, 1-3/8" pole mount socket. It is rated for Indoor or Weather-Resistant Outdoor use.

Loudspeaker Type	Two-way, 8-inch fullrange weather-resistant loudspeaker
Transducers	LF 1 x 8 inch (203mm) carbon ring, hydrophobic cone, 2.5 inch (64mm); HF 1 x 3/4 inch (19mm) exit, non-metallic Ferrofluid-cooled comp driver
Drivers	LF 1 x 8 inch; HF 1 x 0.75 inch
Operating Range	100 Hz - 16 kHz
Sensitivity	(1W/1m): 96 dB1
Power	Passive: 40V; 200W @ 8 Ohms (800W peak)
Dimensions (H x W x D)	11.3 inches (287 mm) x 11.3 inches (287 mm) x 13.3 inches (338 mm)
Impedance	Nominal Impedance: 8 ohms (Various)
