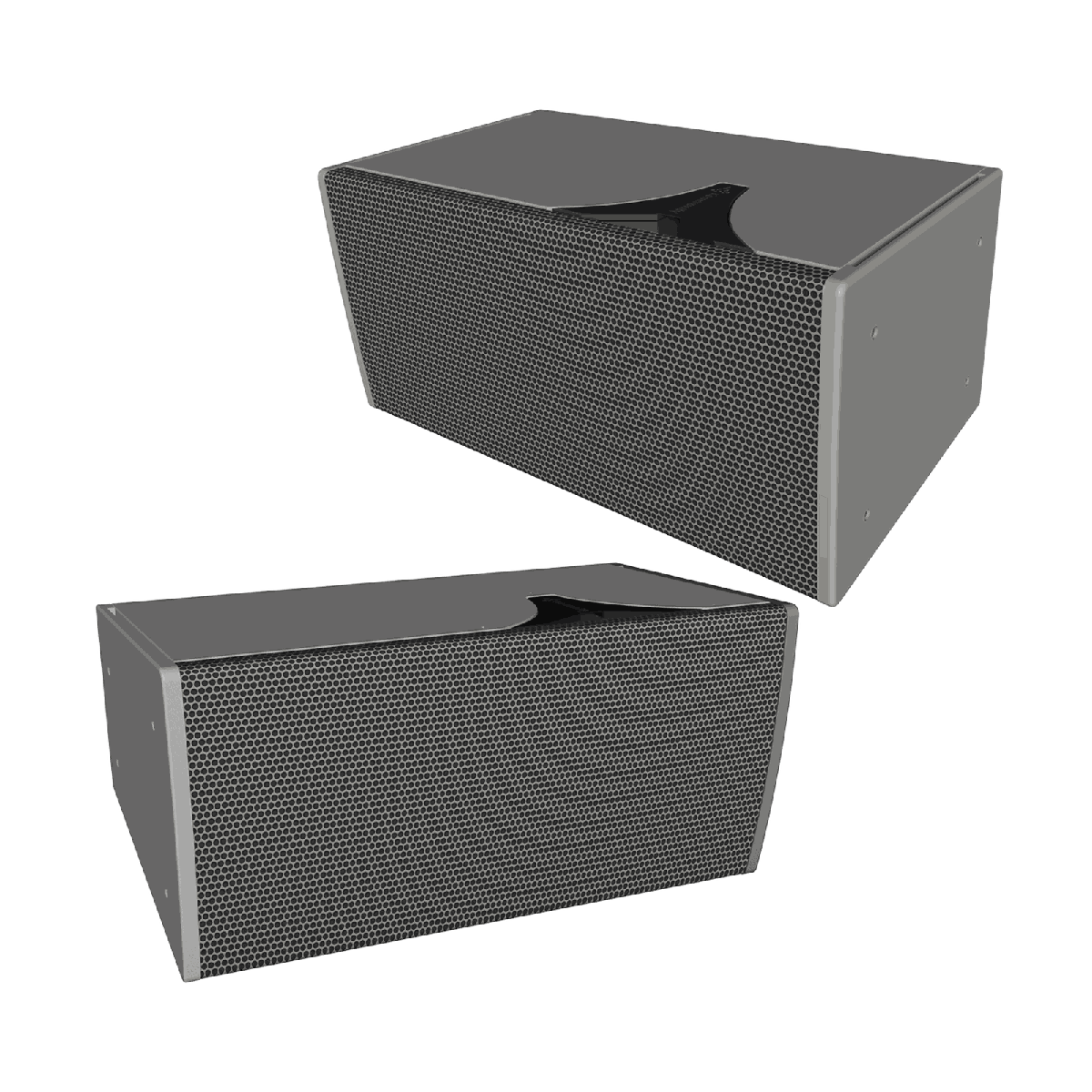

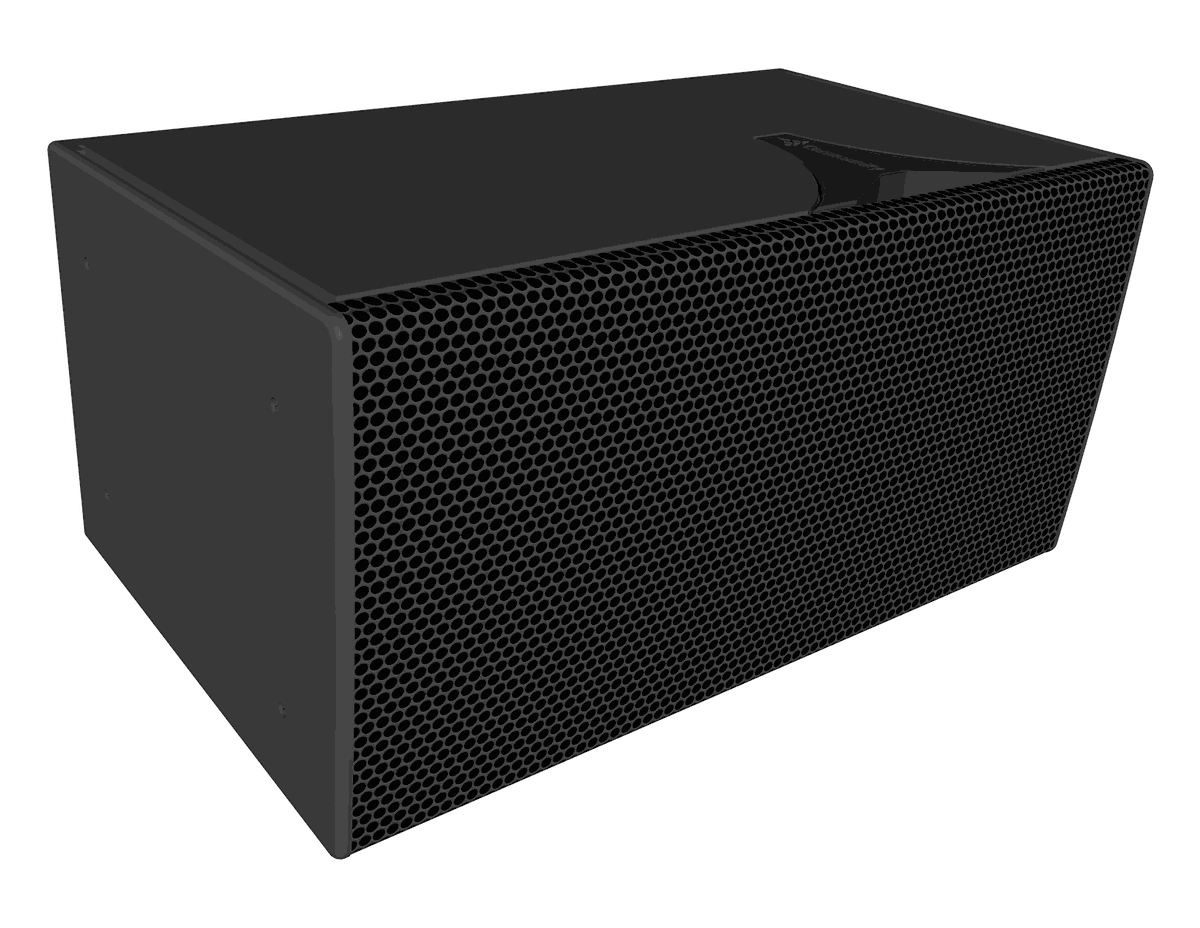

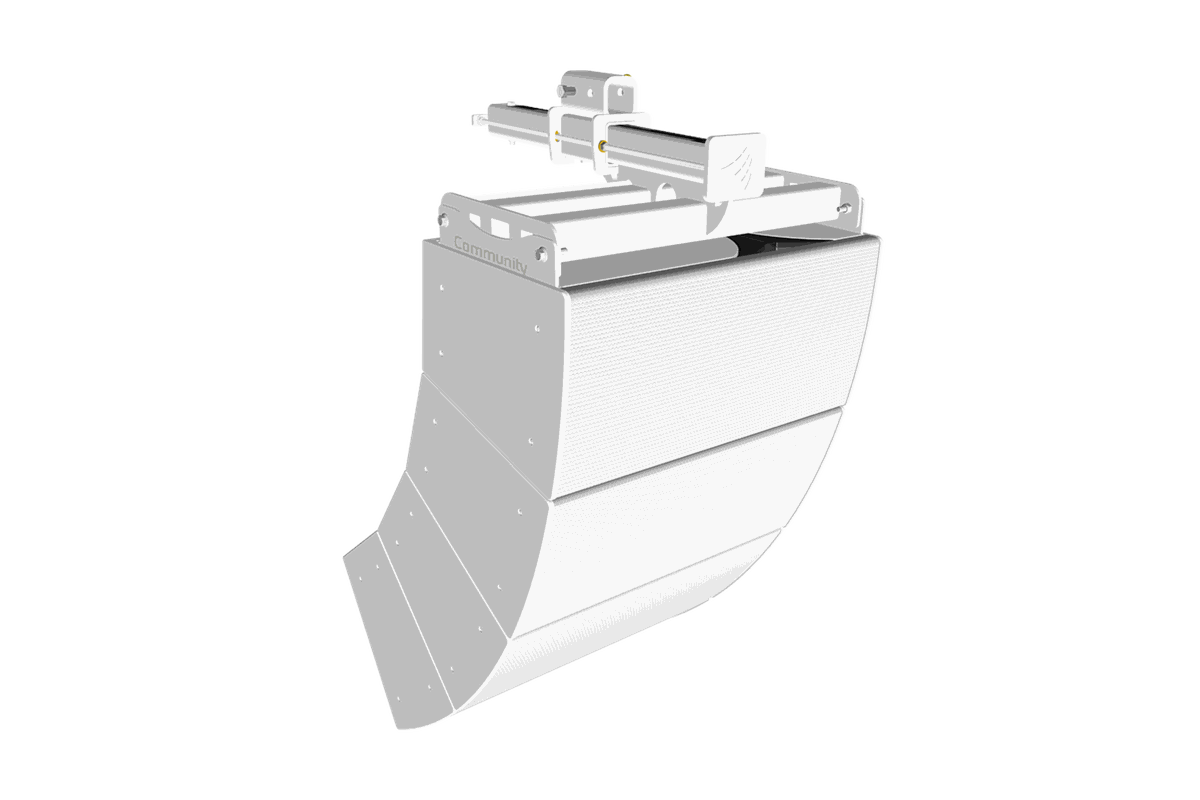

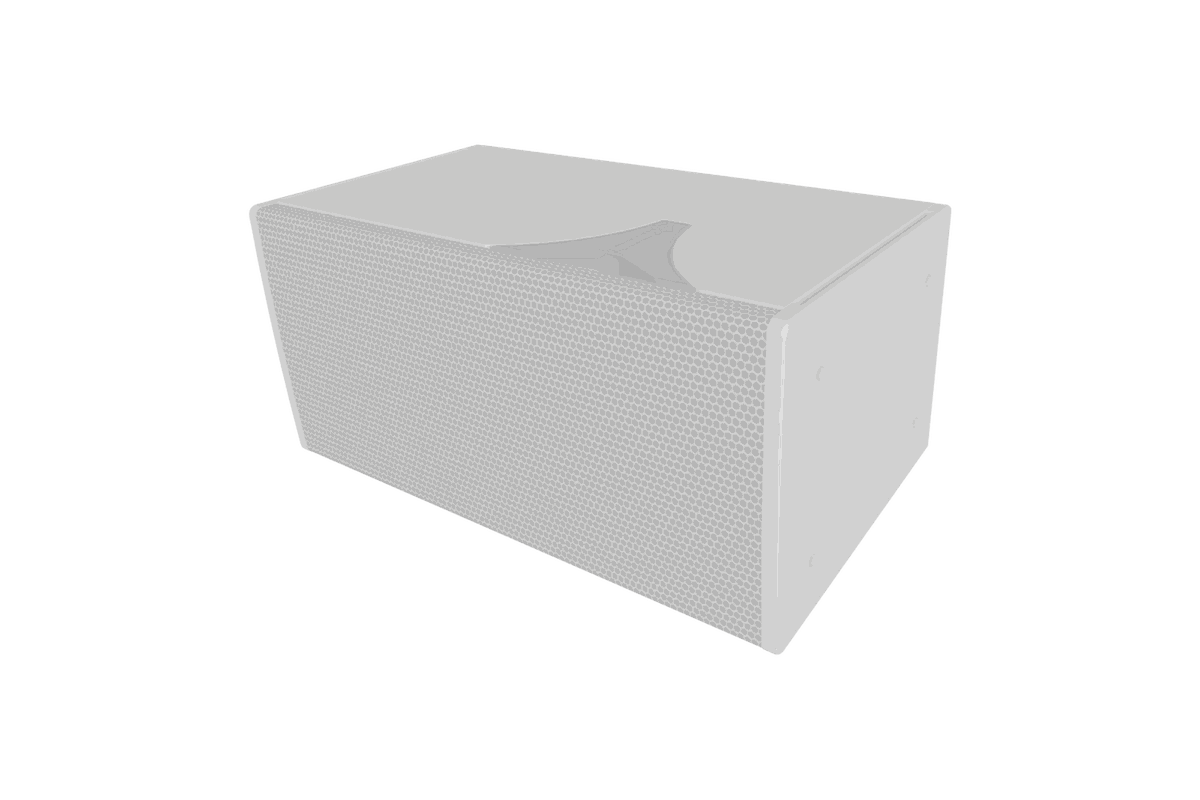

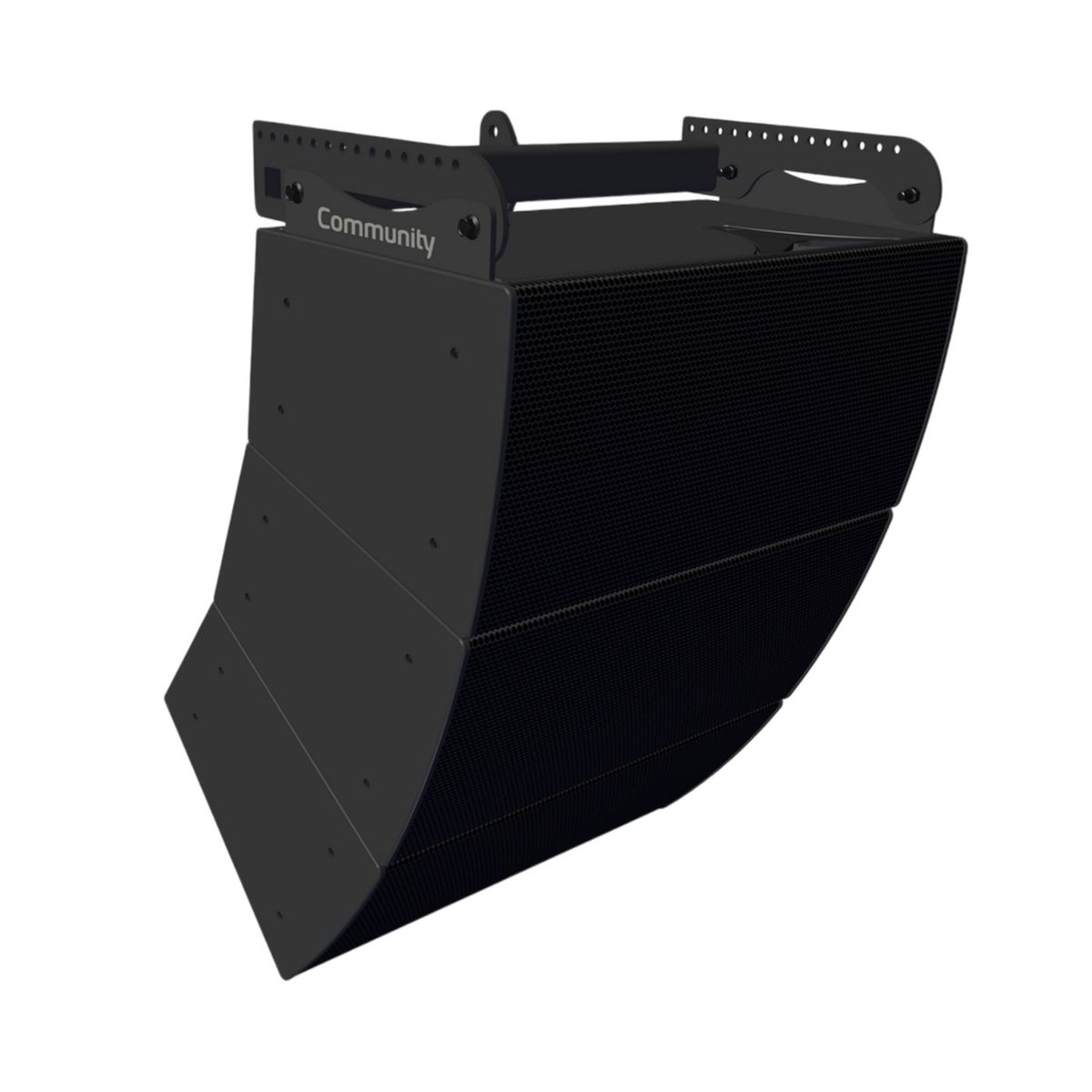

Community Professional Biamp Community IV6-1122 Line Array Loudspeaker

The Biamp Community IV6-1122 is a 2-way, 12-inch line array loudspeaker built for large-venue and performance systems. Drivers are LF 1 x 12 inches; HF 2 x 1.7 inches. Its operating range is 41 Hz - 18.5 kHz. Sensitivity measures (1W/1m) 102 dB (single element).

Power handling is rated at 400W Cont.; 1600W Peak. Nominal impedance is 16 ohms. Environmental rating is Outdoor PolyGlas Models: IP55W per IEC 60529, MIL-STD-810G. Order it in 5 versions: IV6-1122/05B, IV6-1122/05W, IV6-1122WR05, IV6-1122WR05B, IV6-1122WR05W.

Loudspeaker Type	2-way, 12-inch line array loudspeaker
Drivers	LF 1 x 12 inches; HF 2 x 1.7 inches
Operating Range	41 Hz - 18.5 kHz
Sensitivity	(1W/1m) 102 dB (single element)
Power	400W Cont.; 1600W Peak
Impedance	16 ohms
Dimensions (H x W x D)	14 inches (356 mm) x 28.1 inches (714 mm) x 16.6 inches (421 mm)
Dispersion	120 deg x 5 deg Max (array dependent)
