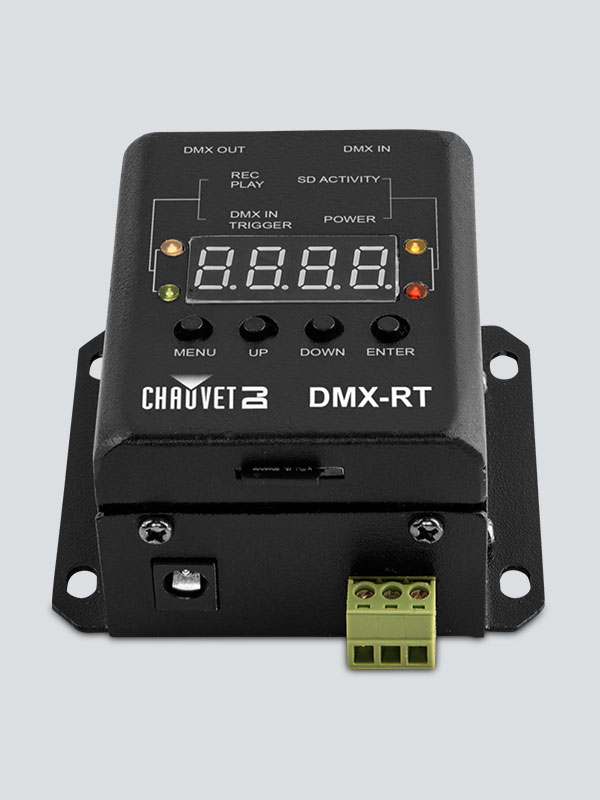

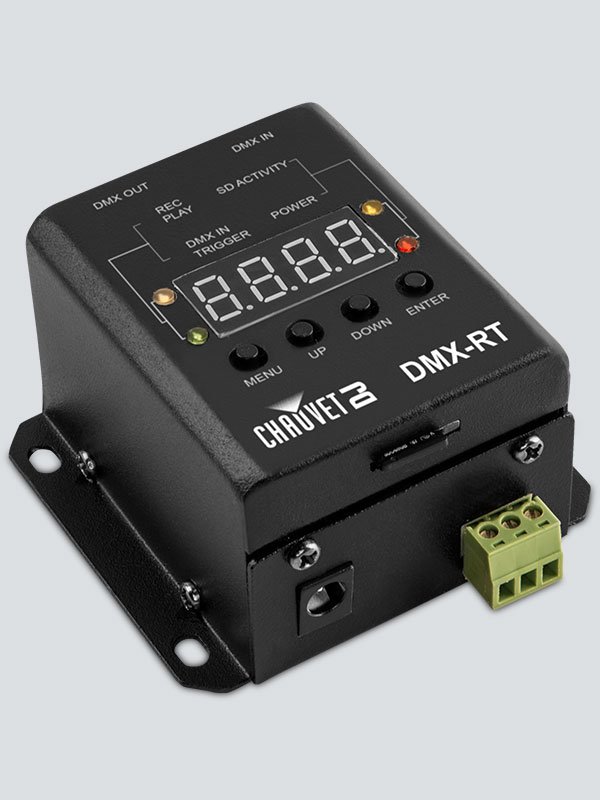

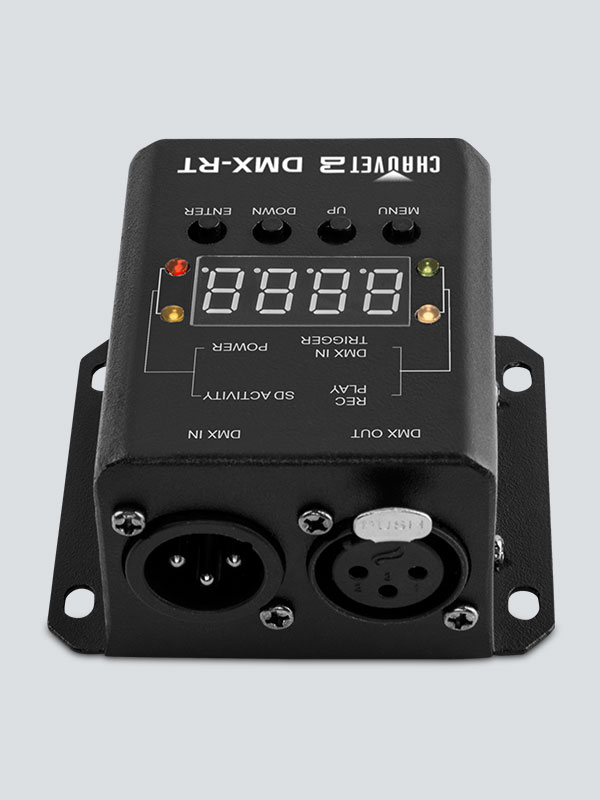

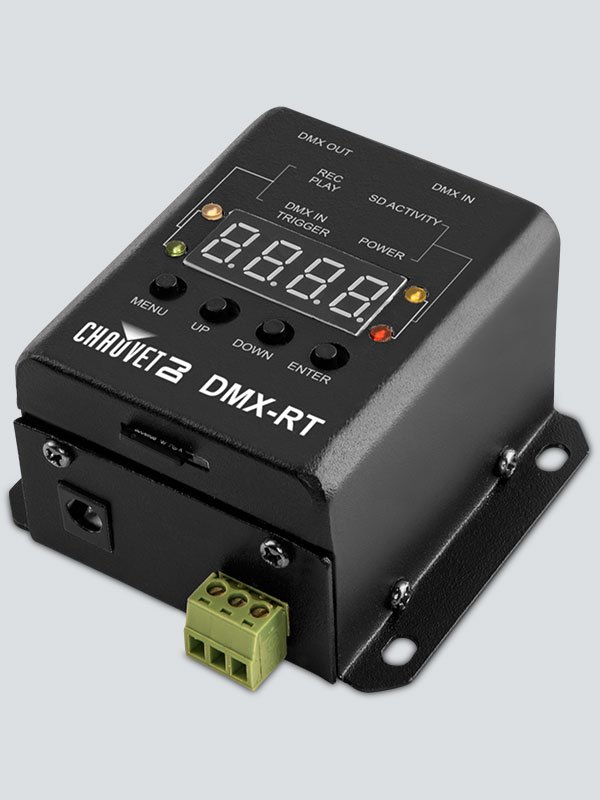

Chauvet DJ DMX-RT DMX Recorder with Triggered Playback

DMX-RT records a DMX show and plays it back on a trigger, either from the DMX line itself or from a sensor wired to its phoenix connectors, for installs that need to run without an operator. Normally-open or normally-closed trigger inputs work with most common motion or contact sensors, and a terminal block supplies 12 VDC to power the trigger device.

Shows load and back up from a micro SD card, and a digital display and integrated mounting bracket make it easy to program and install in a fixed location.

TypeDMX recorder with triggered playback
DMX Connectors3-pin XLR
Trigger TypeN/O or N/C
Programmable Scenes999
StorageMicro SD, Class 10+, FAT32 (card not included)
Terminal Block Output12 VDC, 100 mA
Weight0.4 lb (0.2 kg)
Product Spotlight: Chauvet DJ DMX-RT
