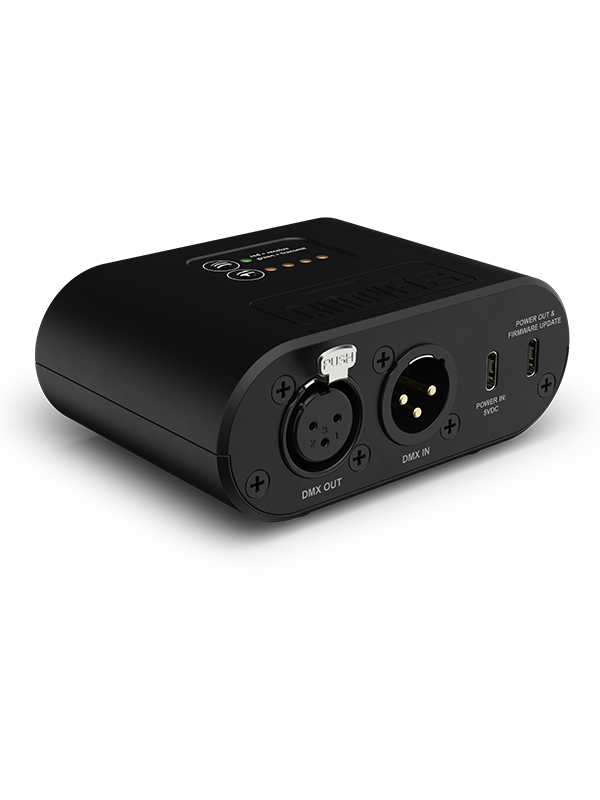

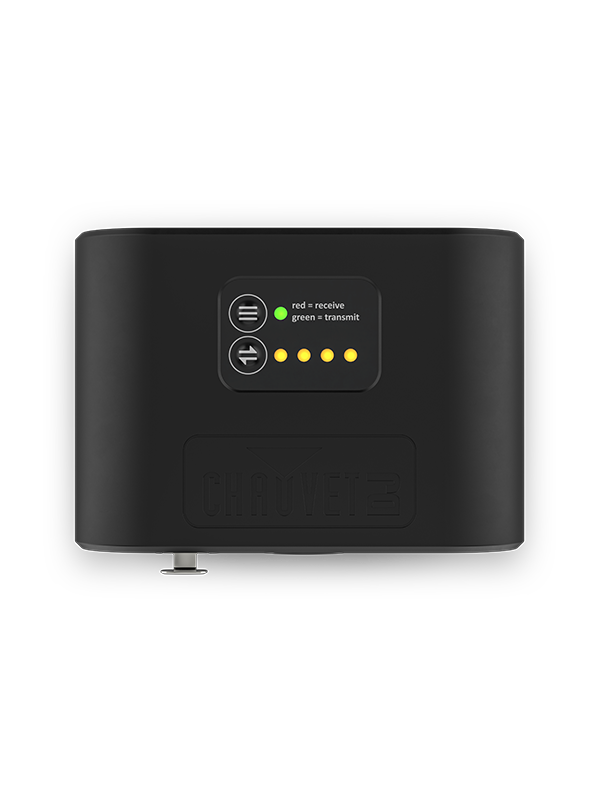

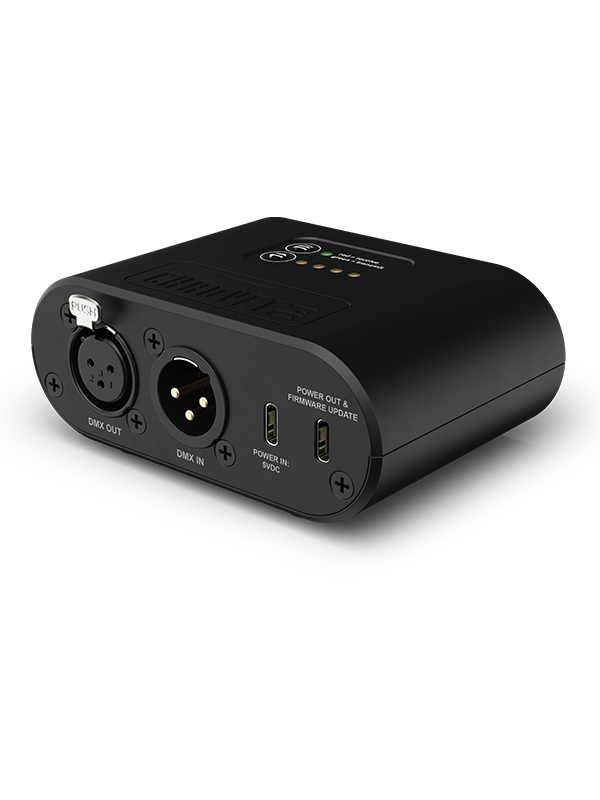

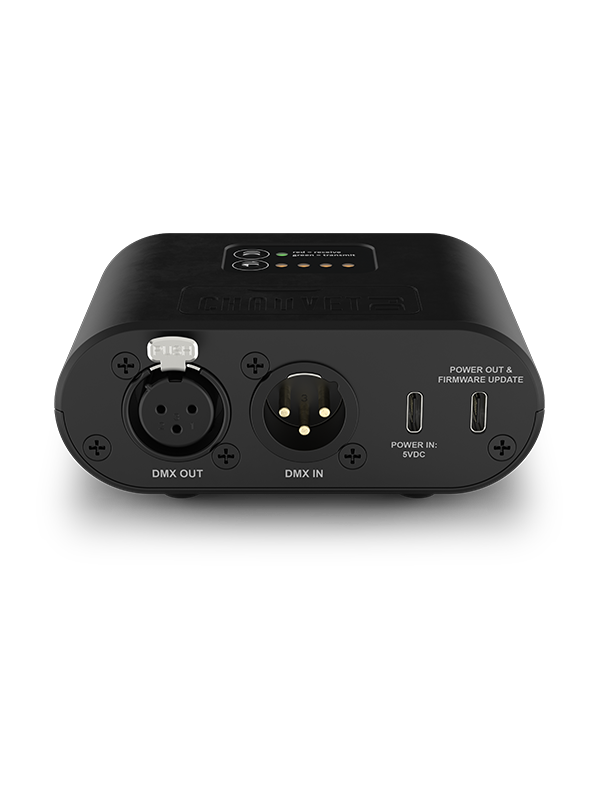

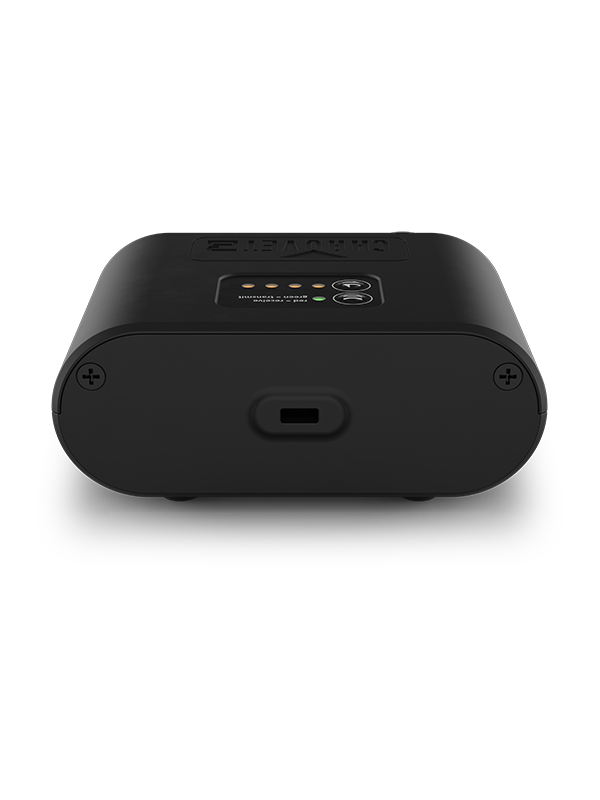

Chauvet DJ D-Fi Hub 2

D-Fi Hub 2 puts a D-Fi transmitter and receiver in a single small unit instead of separate TX and RX modules, so one box can either send DMX out wirelessly to a room full of D-Fi-ready fixtures or pick up a wireless feed and hand it back to a wired console. It integrates with Chauvet's ILS Command system for shows that mix wireless and DMX-controlled gear on the same cue.

USB-C passthrough power keeps a phone or tablet charged from the same unit running the lighting link, and mounting is simple: fastening straps or M10 threaded holes fix it to truss or a stand. Range reaches 656 feet unobstructed, well past what a single-room event needs.

FunctionCombined D-Fi transmitter/receiver
DMX Connector3-pin XLR
Operating Frequency2.412 to 2.484 GHz
Max Range656 ft (200 m) unobstructed
Input Voltage5 VDC, 2 A (ext. supply 100-240 VAC, 50/60 Hz)
Weight / Size0.2 lb (0.1 kg); 3.9 x 3 x 1.6 in
MountingFastening straps or M10 threaded holes
IncludedPower cord, power supply, quick reference guide
