CAD Audio CAD Astatic B205-M Boundary Condenser Button Microphone

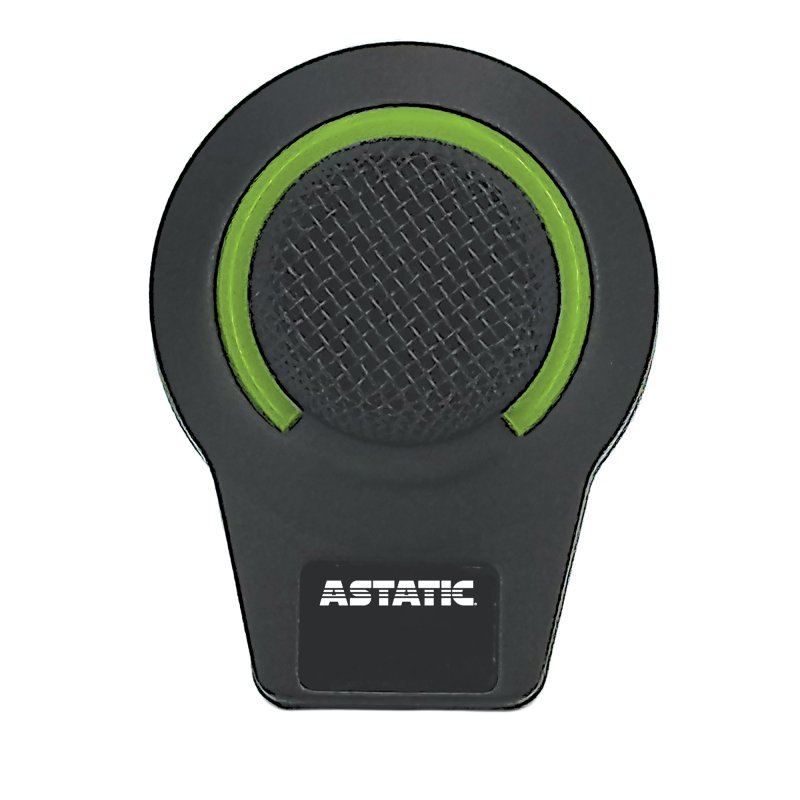

The B205-M is a back-electret condenser boundary microphone in a low-profile button housing, built for tabletop and surface-mount installation in conference and meeting rooms. Its subcardioid pattern gives it wider pickup than a directional boundary mic, useful when several people sit around the same table.
It accepts a wide 9-52V phantom power range, which makes it compatible with more mixer and paging inputs than mics that require a full 48V, and its 3-pin XLR output wires straight into standard audio equipment.
| Type | Back-electret condenser, boundary button |
|---|---|
| Polar Pattern | Subcardioid |
| Frequency Response | 50 Hz - 17 kHz |
| Sensitivity | -39 dB +/-3 dB (1 V/Pa @ 1 kHz) |
| Impedance | 200 ohms |
| Max SPL | 140 dB (1 kHz @ 1% THD) |
| Power | Phantom, 9-52V DC |
| Output Connector | 3-pin XLR |
