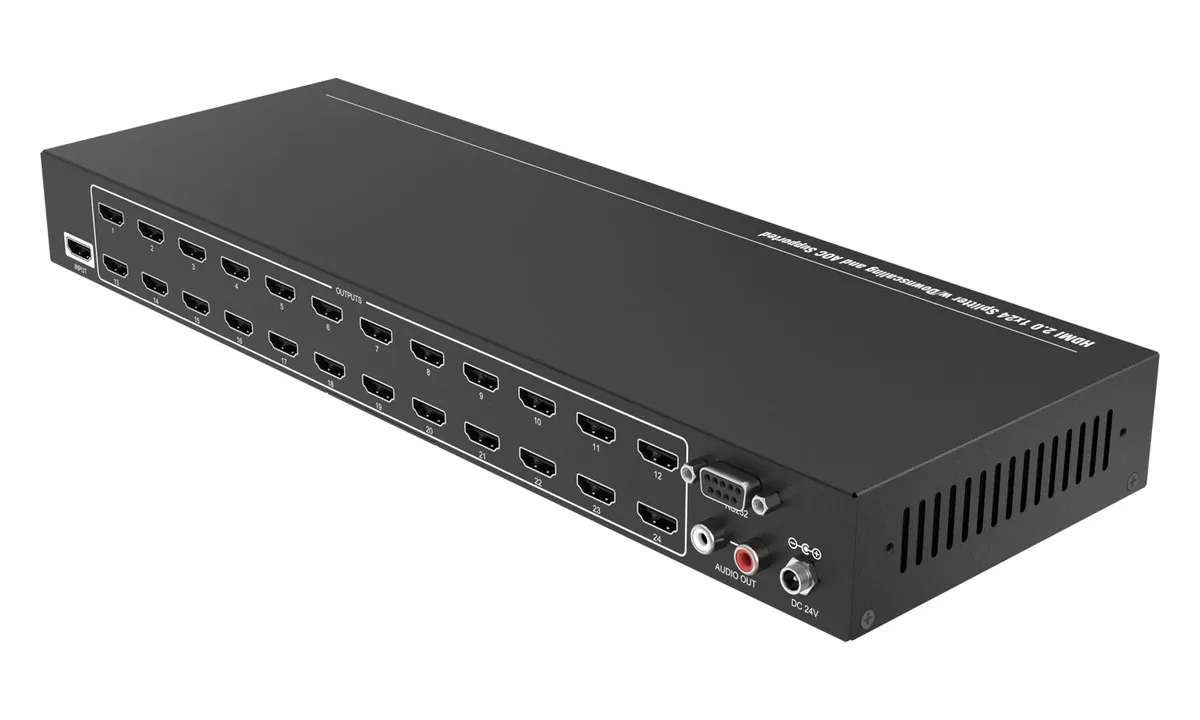

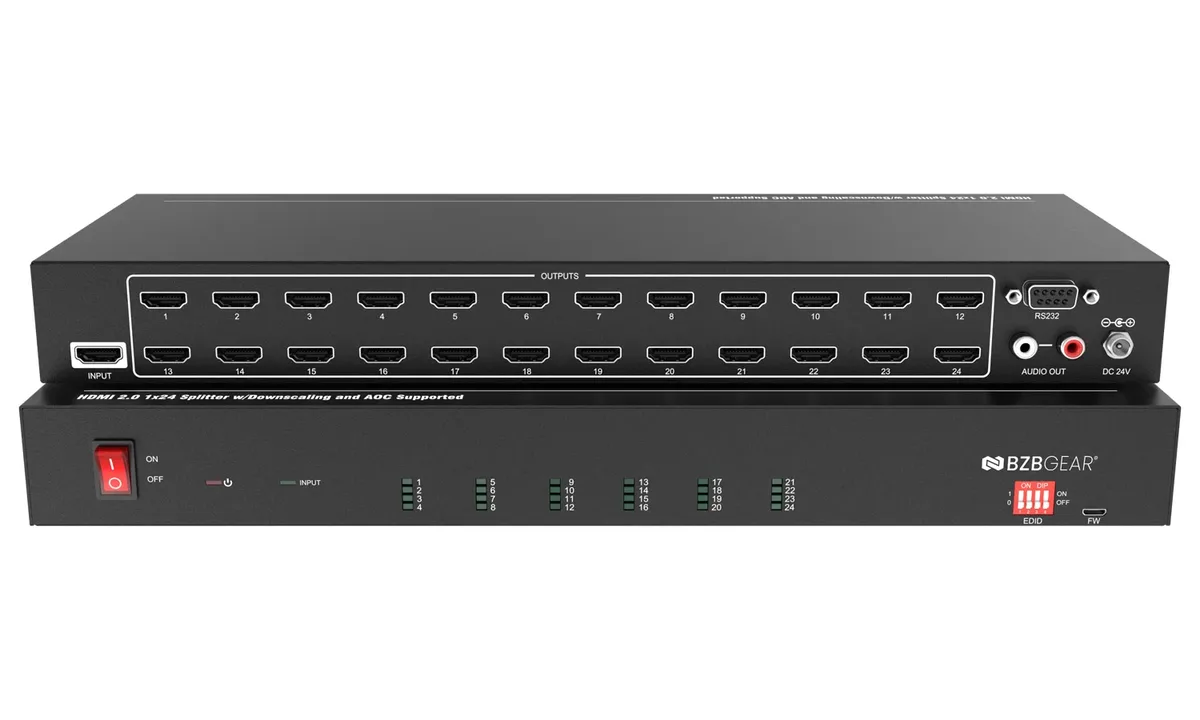

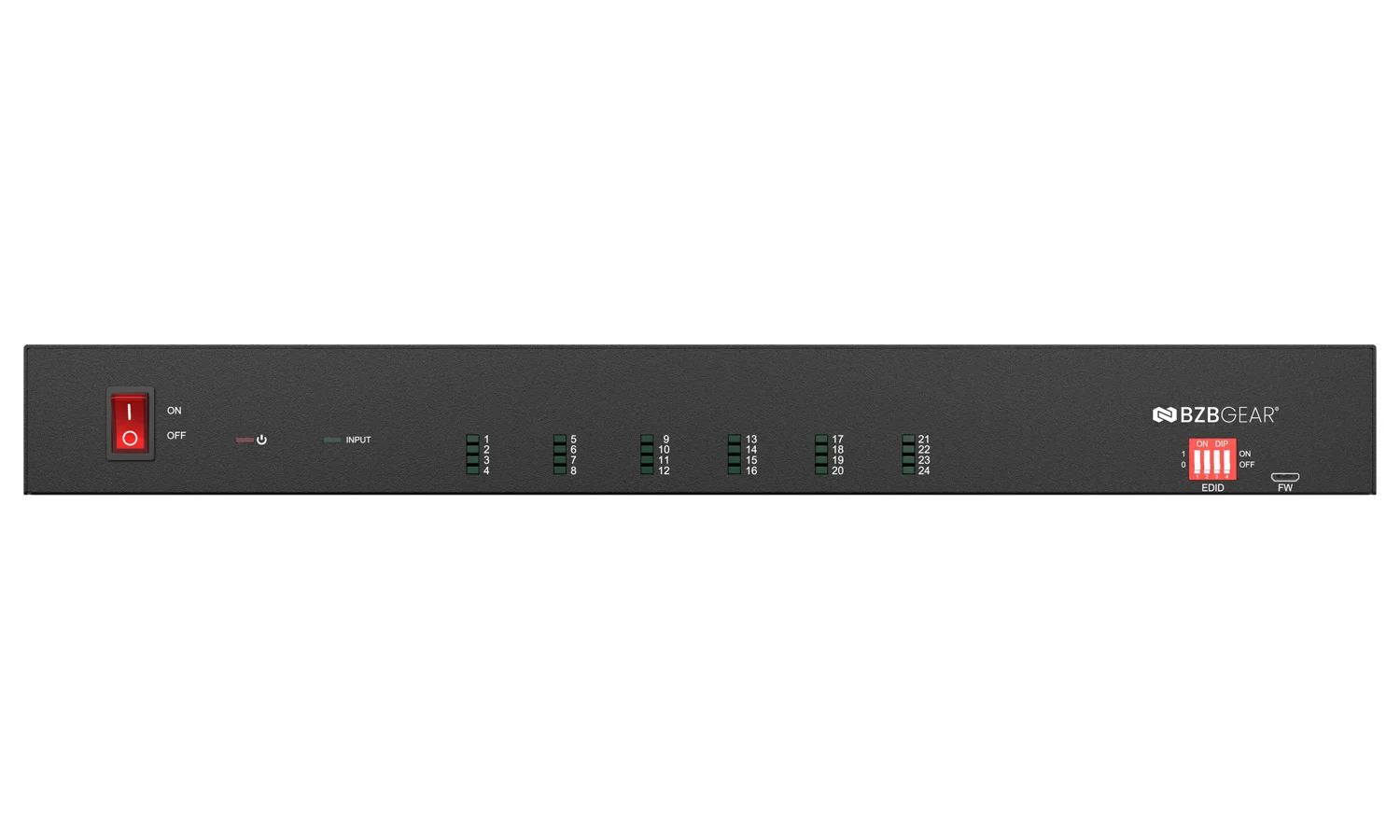

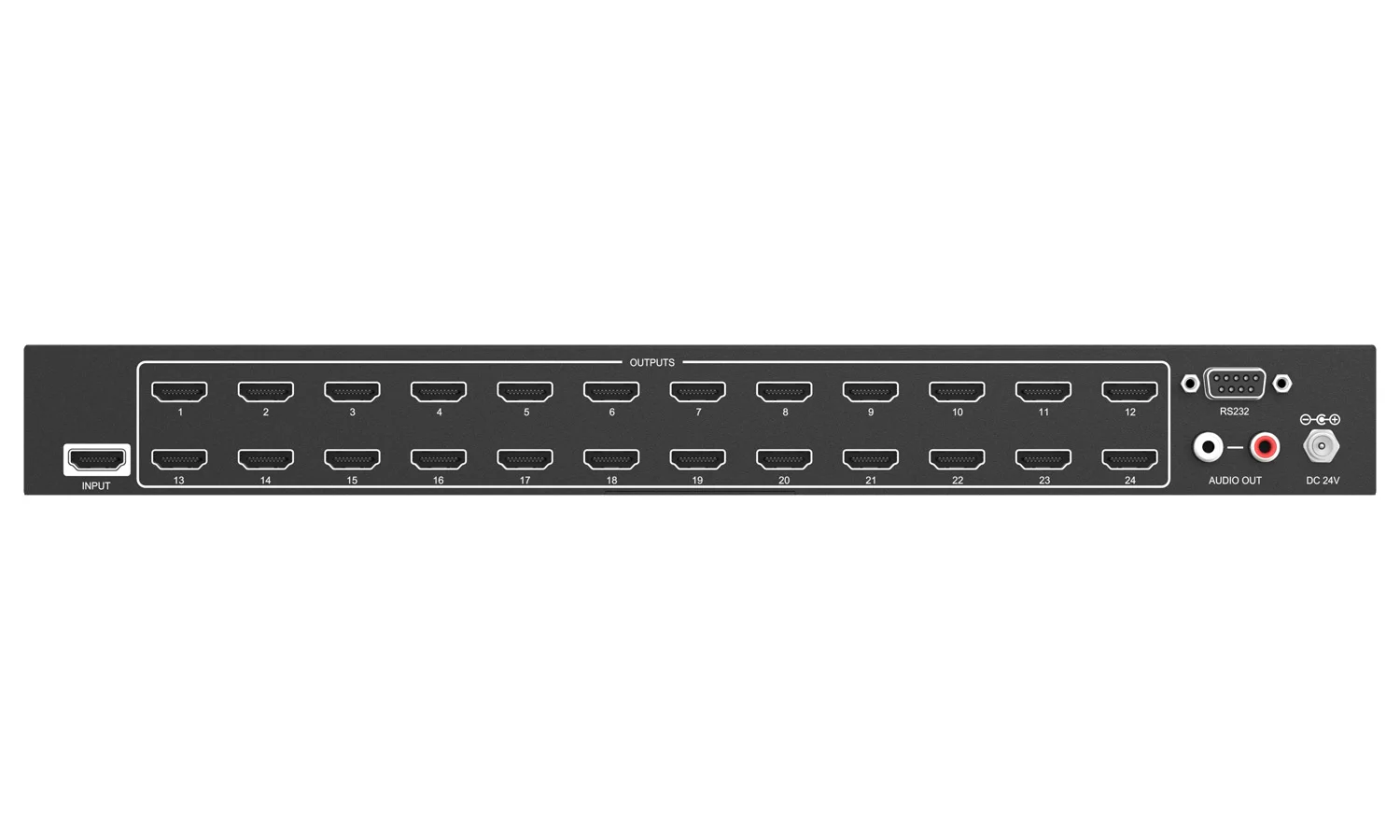

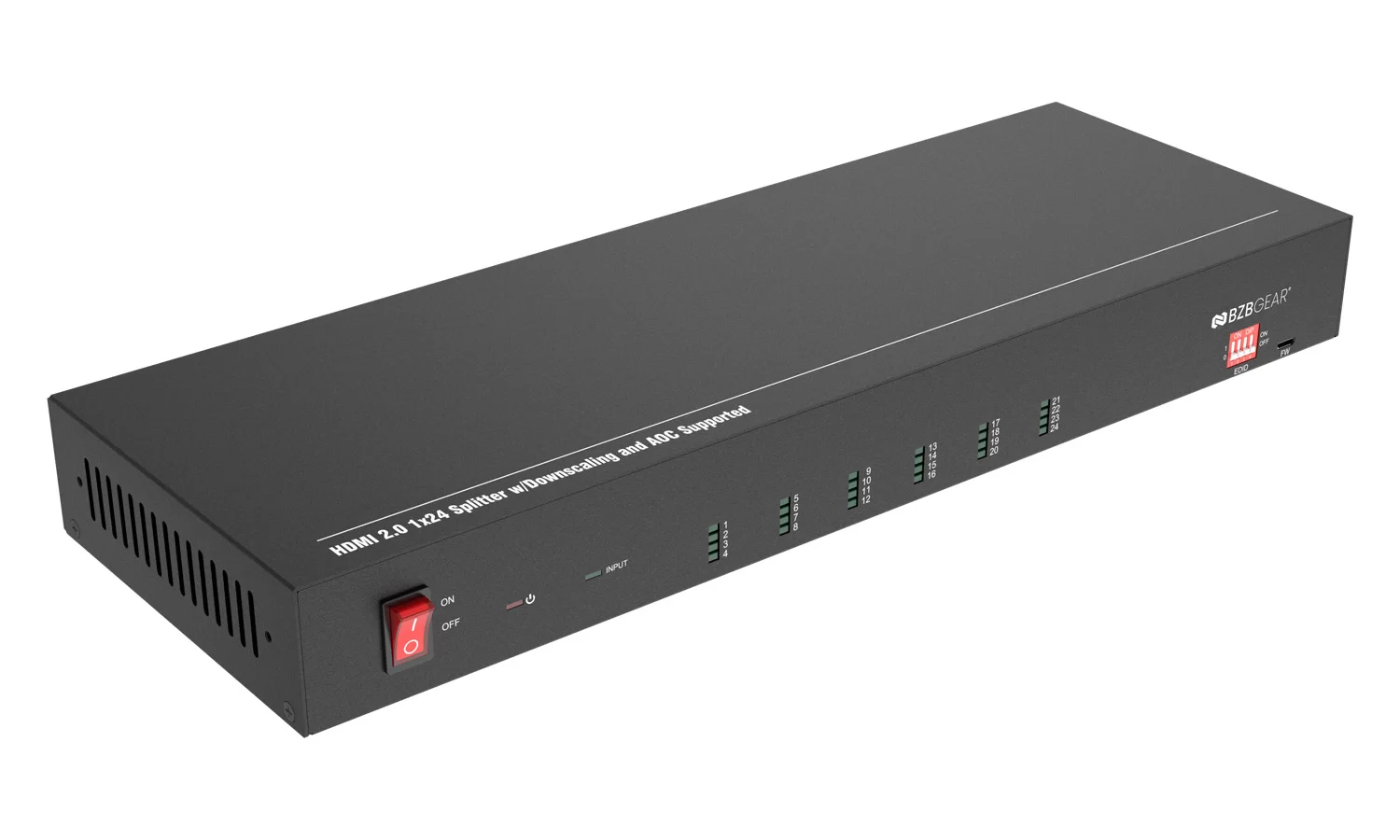

BZBGear BG-UHD-DA1X24 1x24 4K HDMI Splitter

The BG-UHD-DA1X24 drives twenty-four displays from a single HDMI source at up to 4K60 4:4:4 8-bit, with HDR10 and Dolby Vision carried and HDCP 2.2 compliance. It is aimed squarely at the large bar, the retail floor or the stadium concourse where one feed has to reach every screen.

Every output supplies 5V at 100 mA for active optical HDMI cables, so runs of about 165 ft can leave the unit without extenders in between. Auto-downscaling keeps older 1080p screens working alongside 4K ones, and an RCA stereo output takes audio off for a house system, flat within 1 dB from 20 Hz to 20 kHz.
