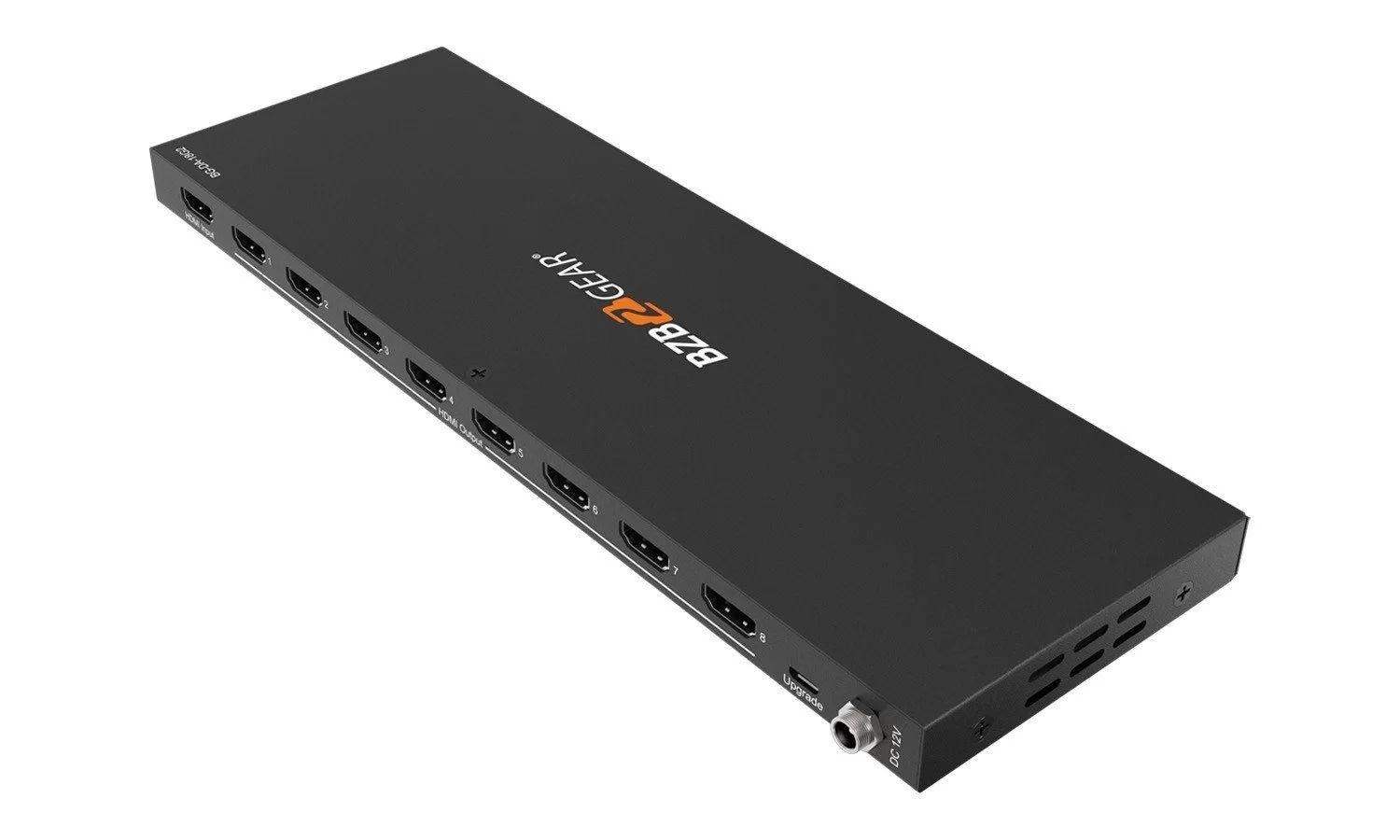

BZBGear BG-DA-18G2 1x8 4K HDMI Splitter with EDID Management

The BG-DA-18G2 distributes one HDMI signal to eight displays at up to 4K60 4:4:4 with HDR, on an 18 Gbps HDMI 2.0 link with HDCP 2.2. All the common lower resolutions and full 3D pass through as well.

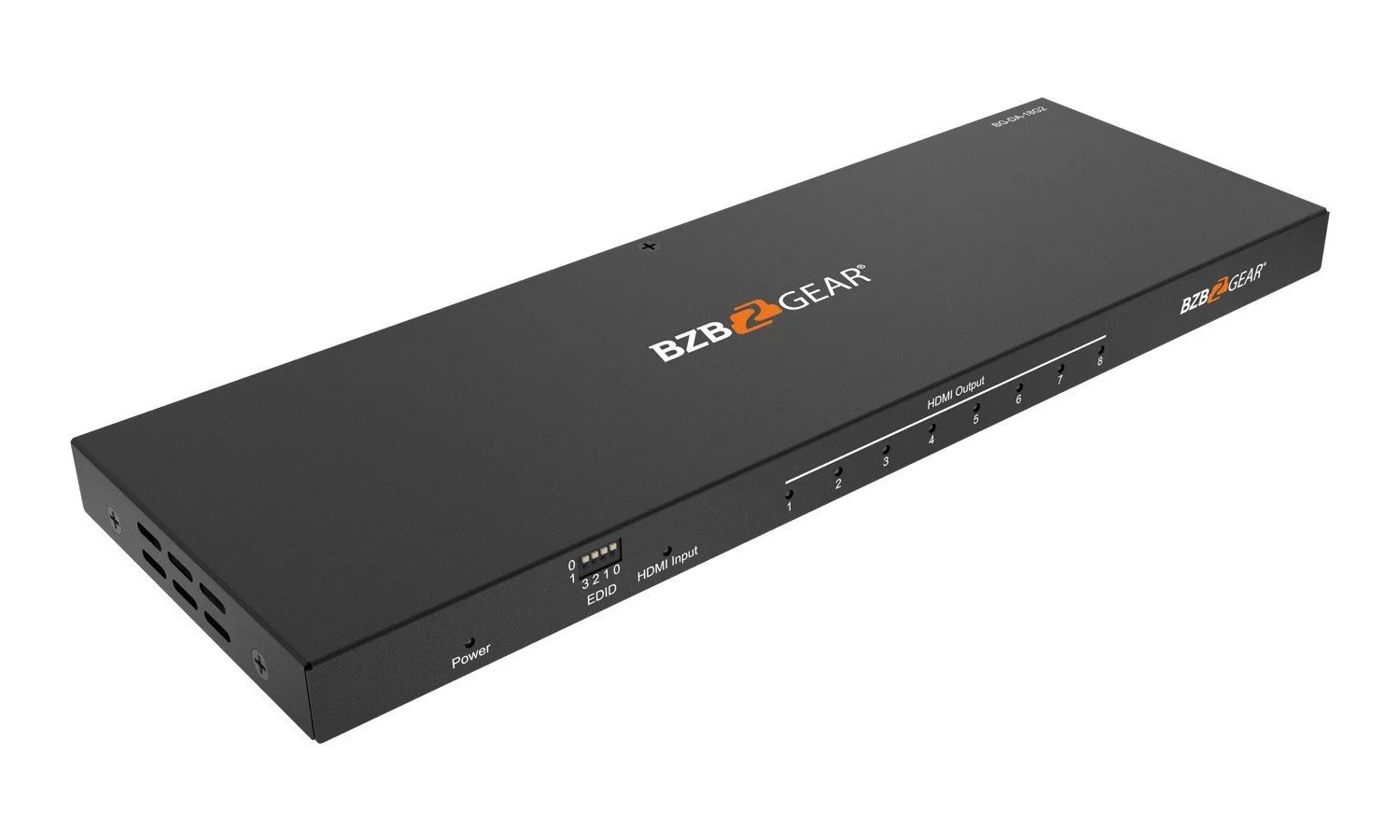

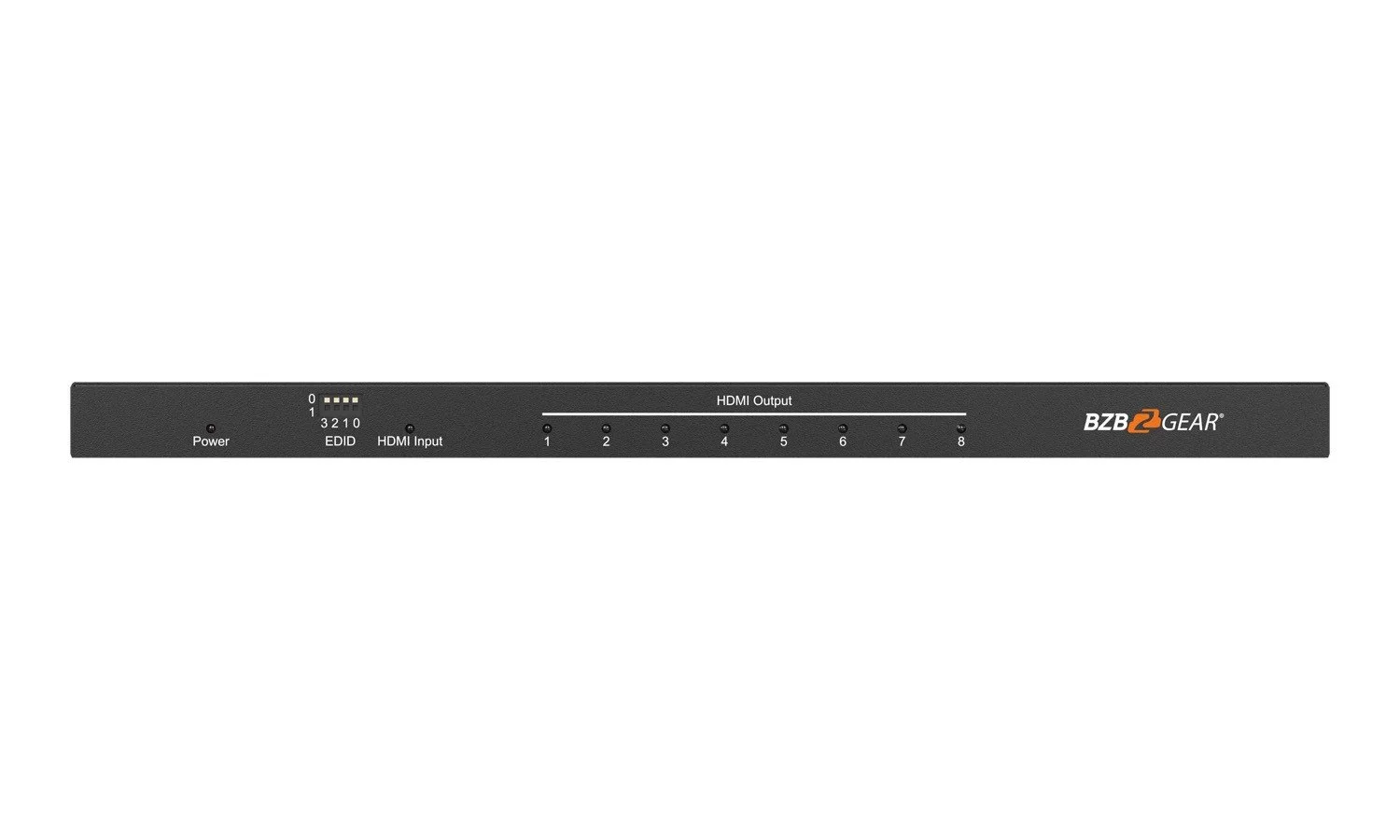

EDID is set with dip switches on the unit rather than software, which is the quicker answer when eight displays of different ages are on the same source and one of them keeps dropping out. The chassis is aluminium, 273 mm wide and 13 mm tall, and it runs on a 12V 2A supply. All HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio pass through.

Video Bandwidth	300MHz/6Gbps per Color
Resolutions	Up to 4K@50/60Hz 4:4:4, Full 3D Pass-through

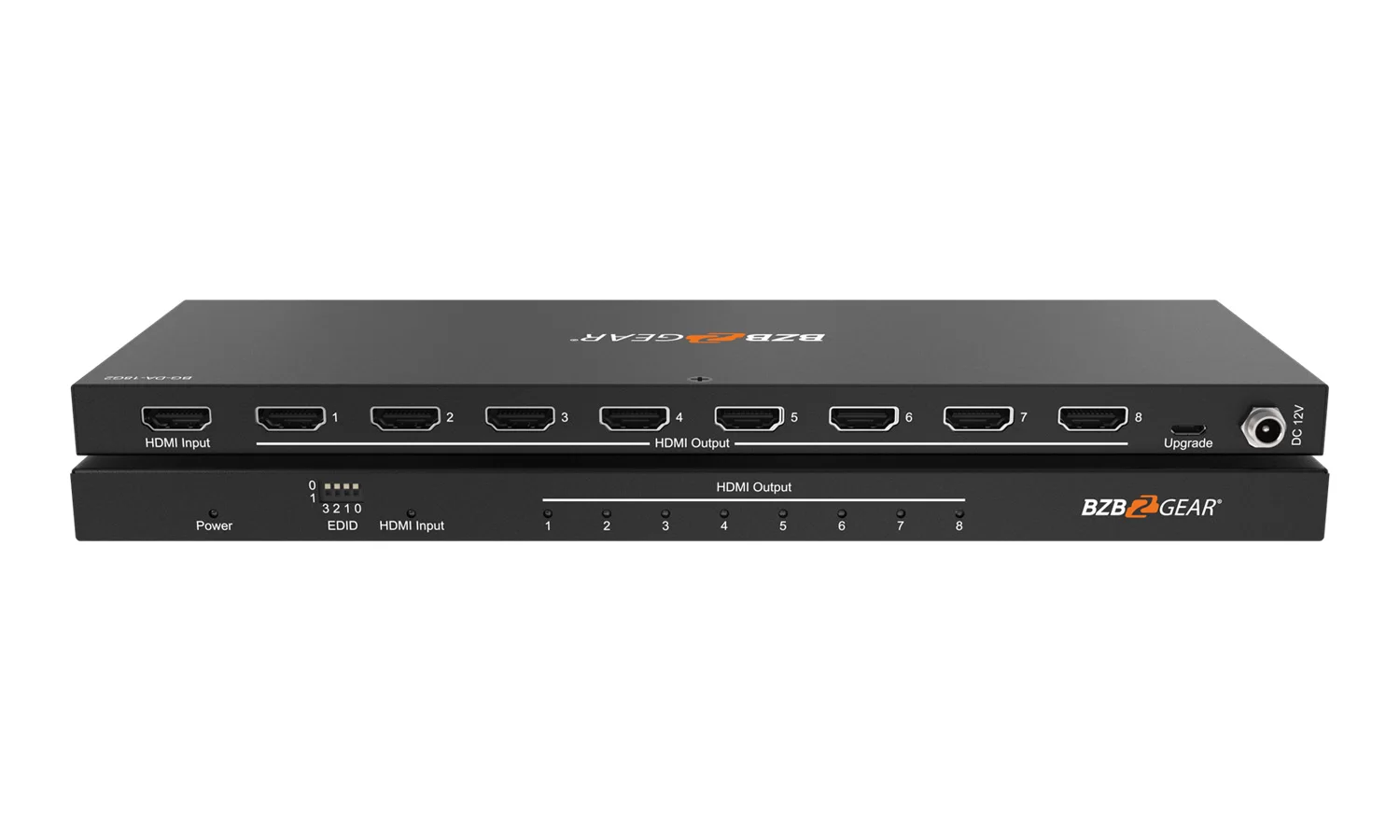

Input Ports	1x HDMI Type A, 19-pin, female 1x Mini USB (Firmware upgrade)

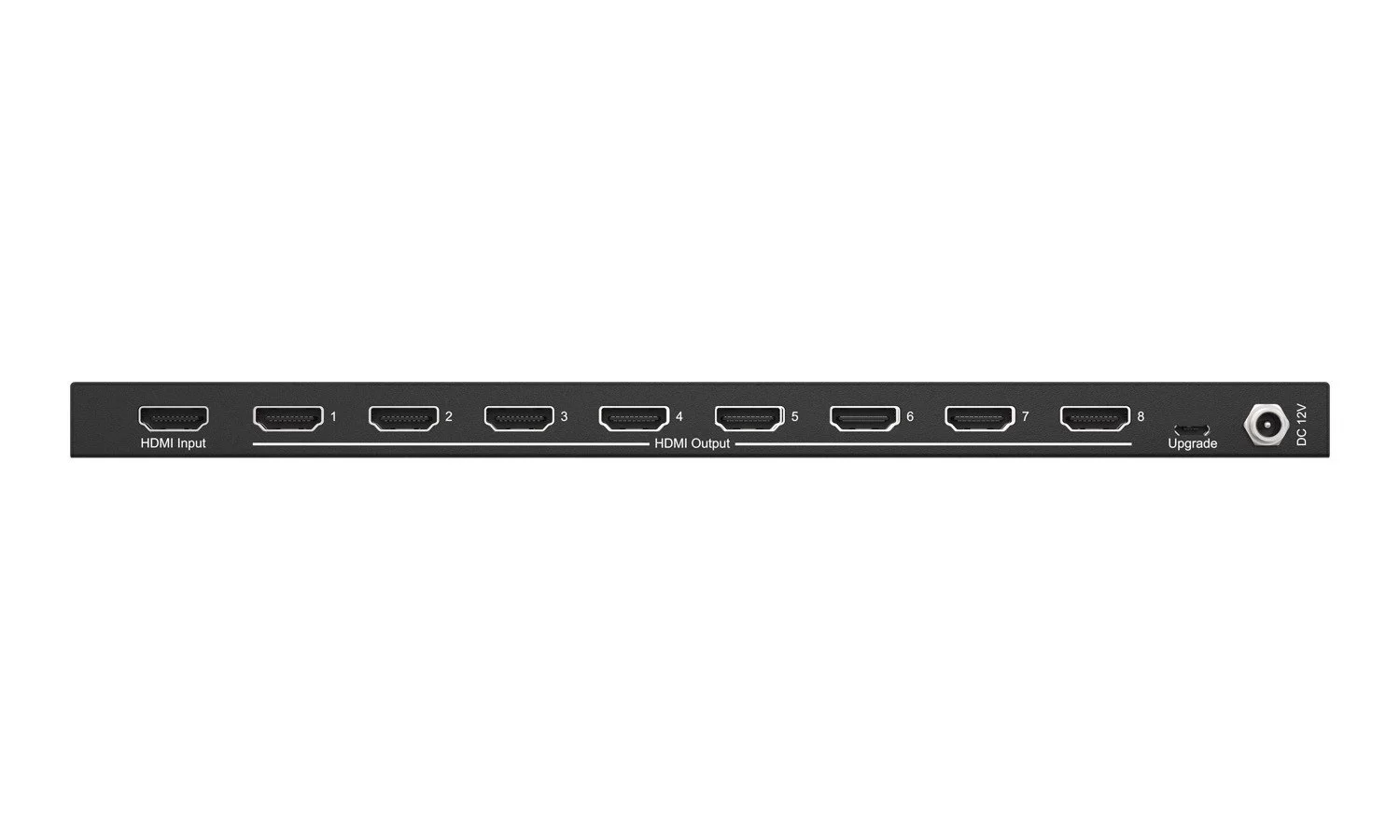

Output Ports	8x HDMI Type A, 19-pin, female
HDMI Cable Distance	5m for 1080p@60Hz, 3m for 4K@60Hz 4:4:4
Power Supply	12V/2A DC
Dimensions	11"(W) x 4.3"(D) x 0.51"(H) [273mm(W) x 109mm(D) x 13mm(H)]
Weight	1.6lbs [705g]
