BZBGear BG-SDITPG-G2 12G-SDI Test Pattern Generator

The BG-SDITPG-G2 puts a known-good SDI signal on a cable so a display, a router or a whole plant can be checked against something trustworthy. It covers 12G, 6G, 3G, HD and SD-SDI with automatic rate detection, meeting SMPTE 259M, 292M, 424M, ST-2081 and ST-2082.

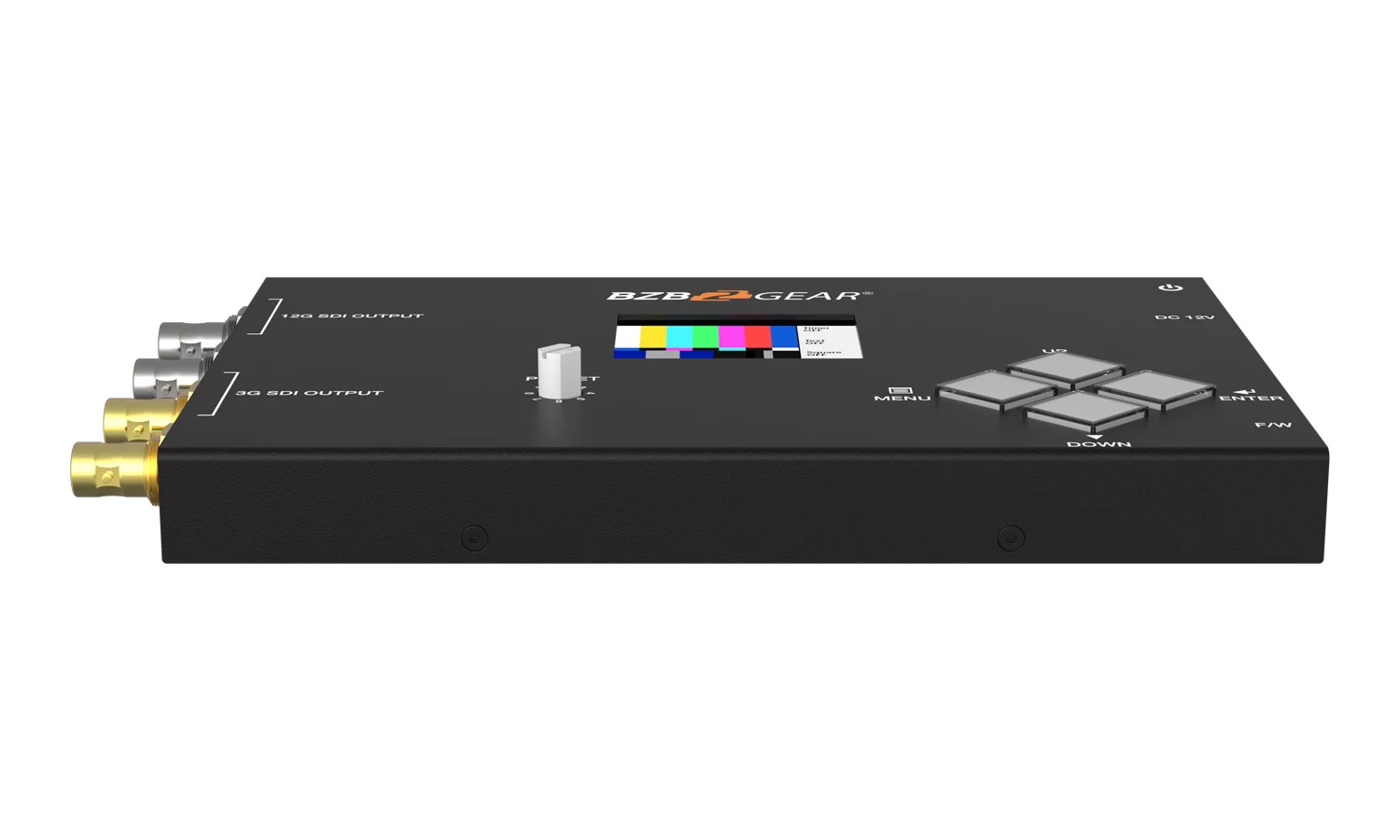

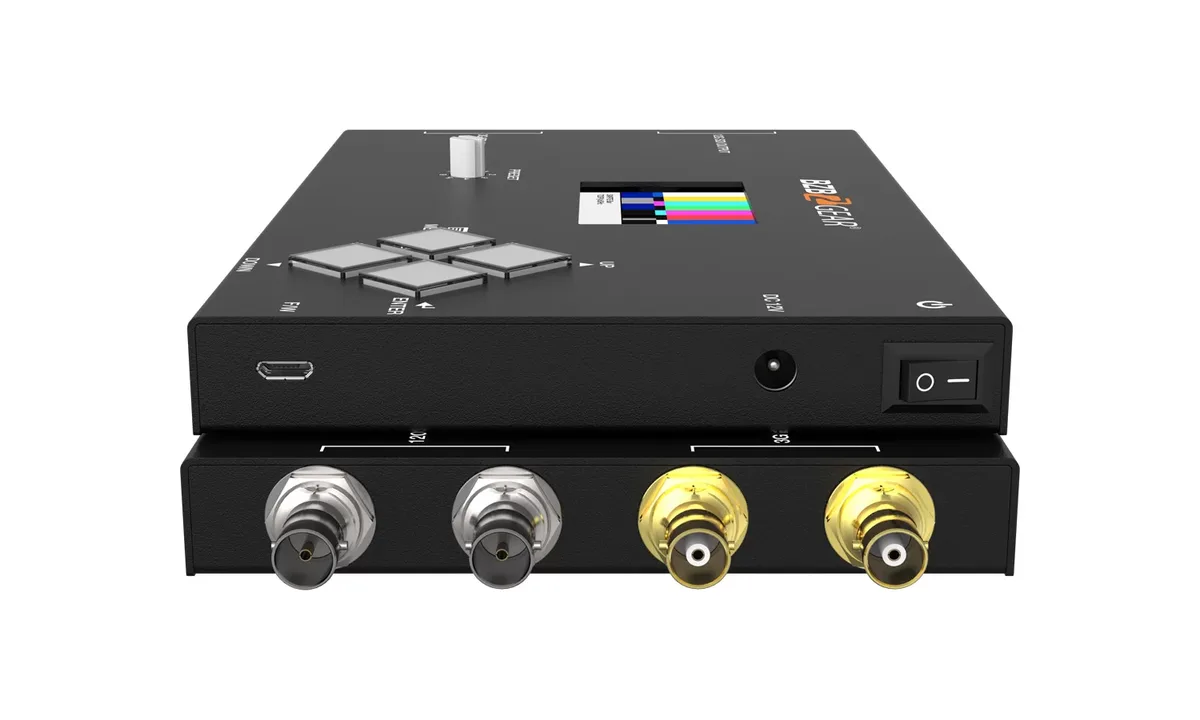

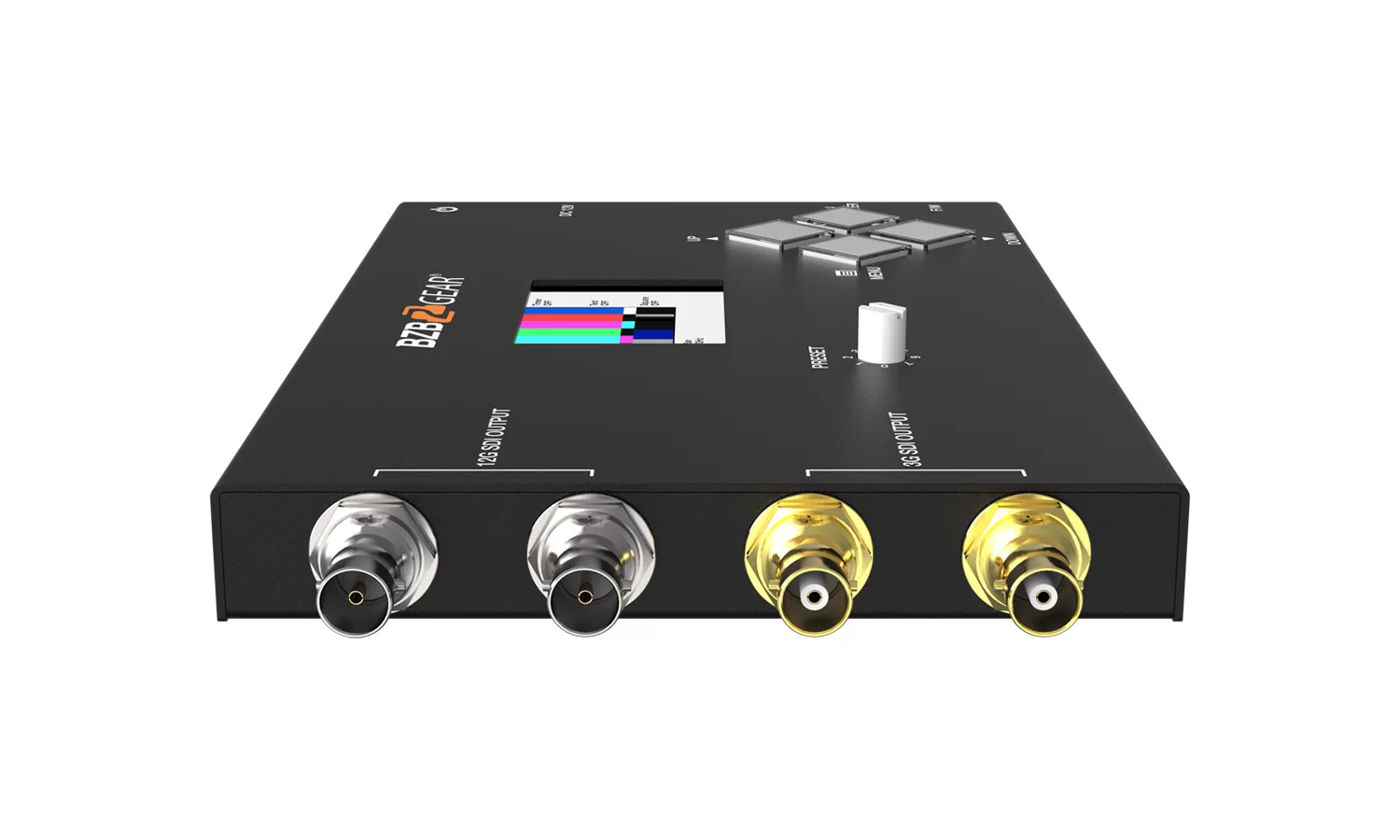

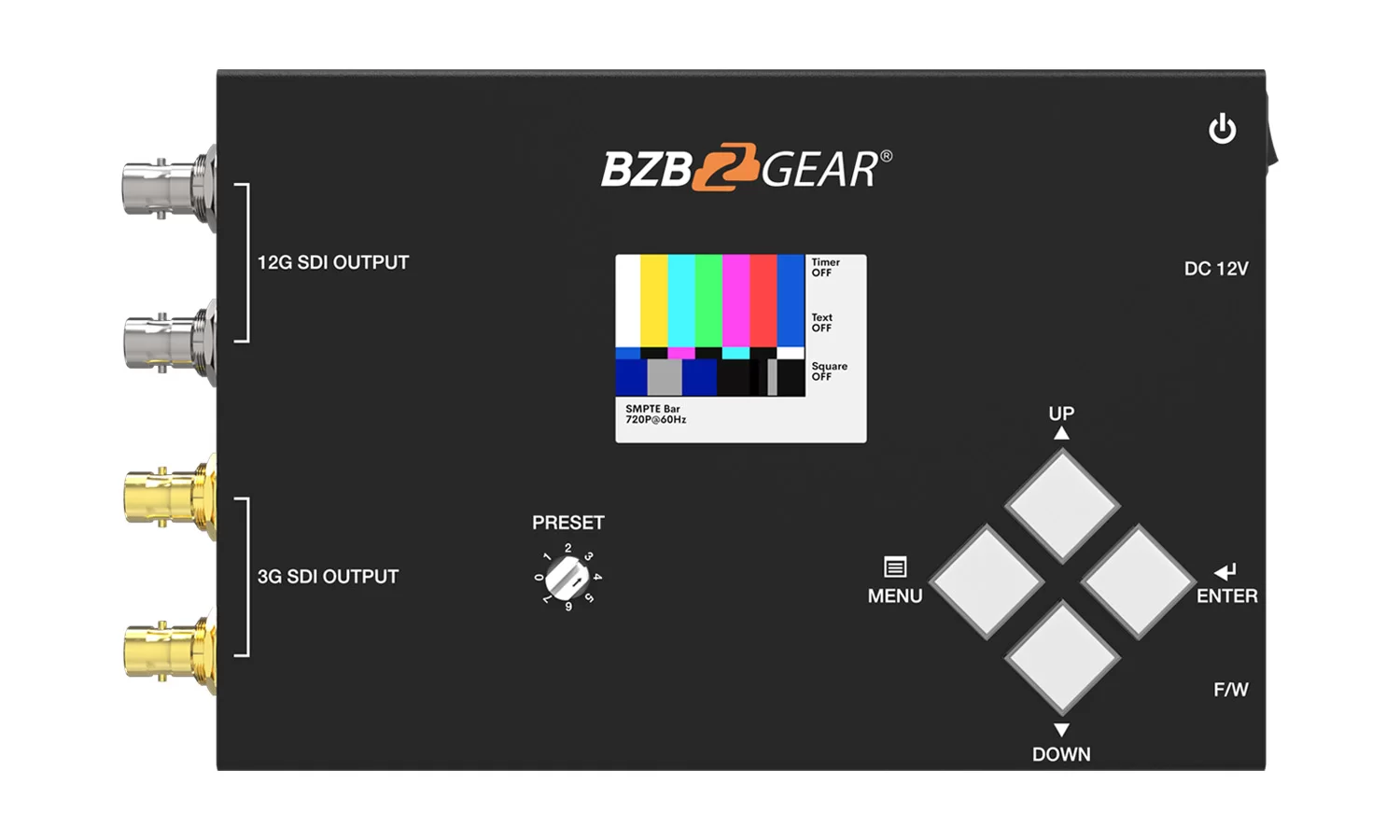

It generates still and moving test patterns and up to eight channels of AES-compliant audio at 48 kHz per SMPTE-291M. Four BNC outputs at 75 ohms drive several destinations at once, with cable equalization figures quoted at 50 m for 12G and 100 m for 6G on Belden 1694A. Four buttons, a rotary switch and an LCD run it.
