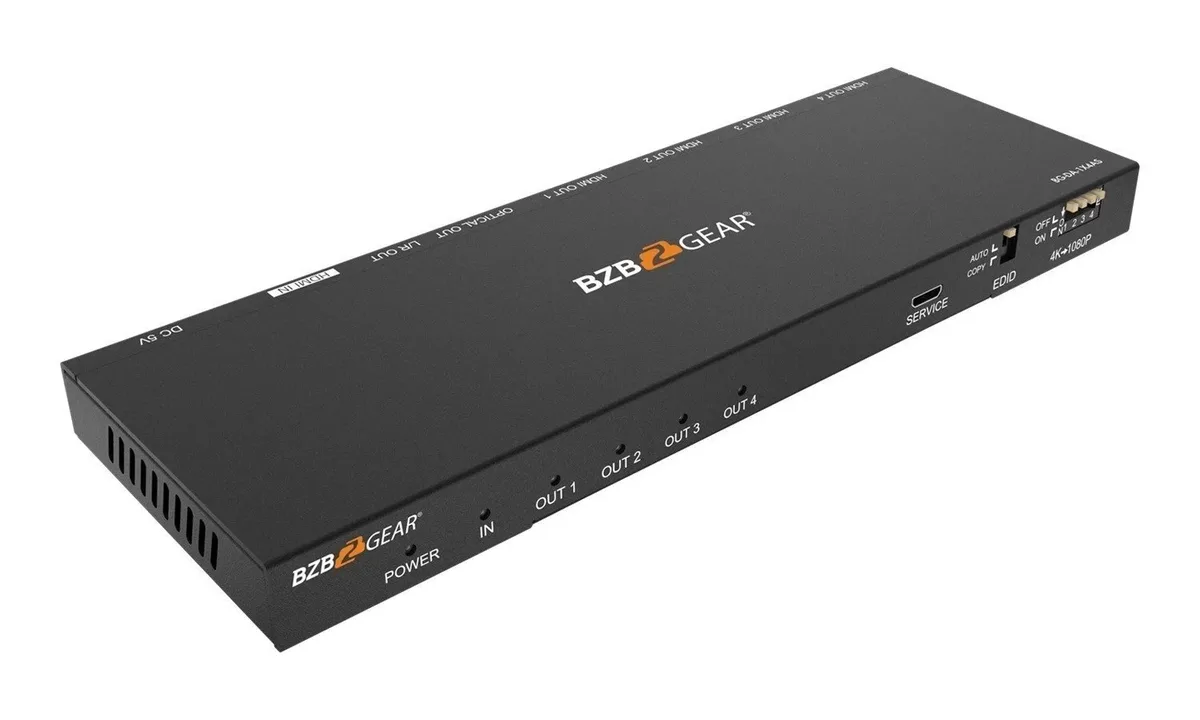

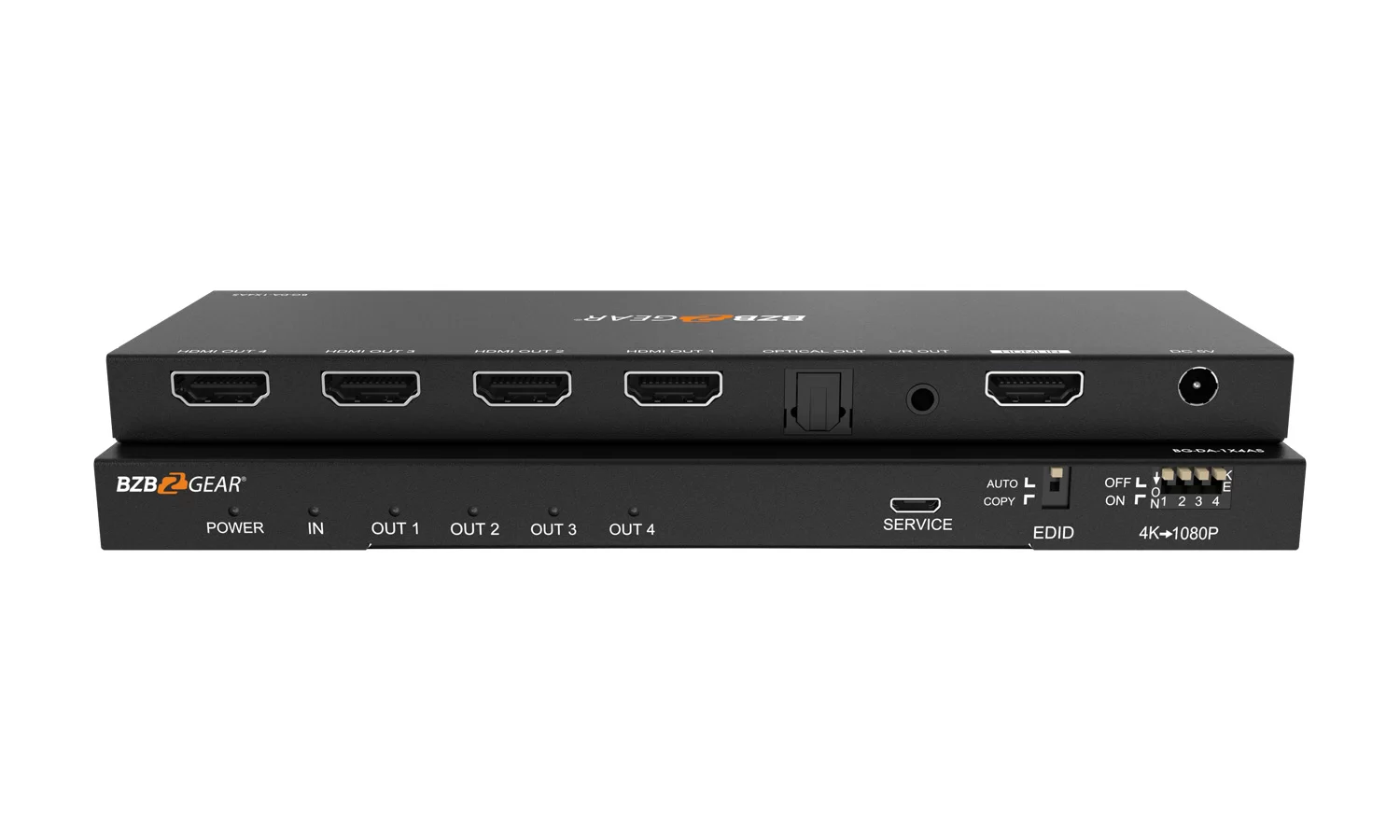

BZBGear BG-DA-1X4AS 1x4 4K HDMI Splitter with Downscaler and Audio Output

The BG-DA-1X4AS splits one 4K60 4:4:4 source to four displays at 18 Gbps, HDMI 2.0b, with HDCP 2.2 and 1.4. Each of the four outputs can be switched to downscale to 1080p independently, which keeps a mixed set of screens all showing a picture.

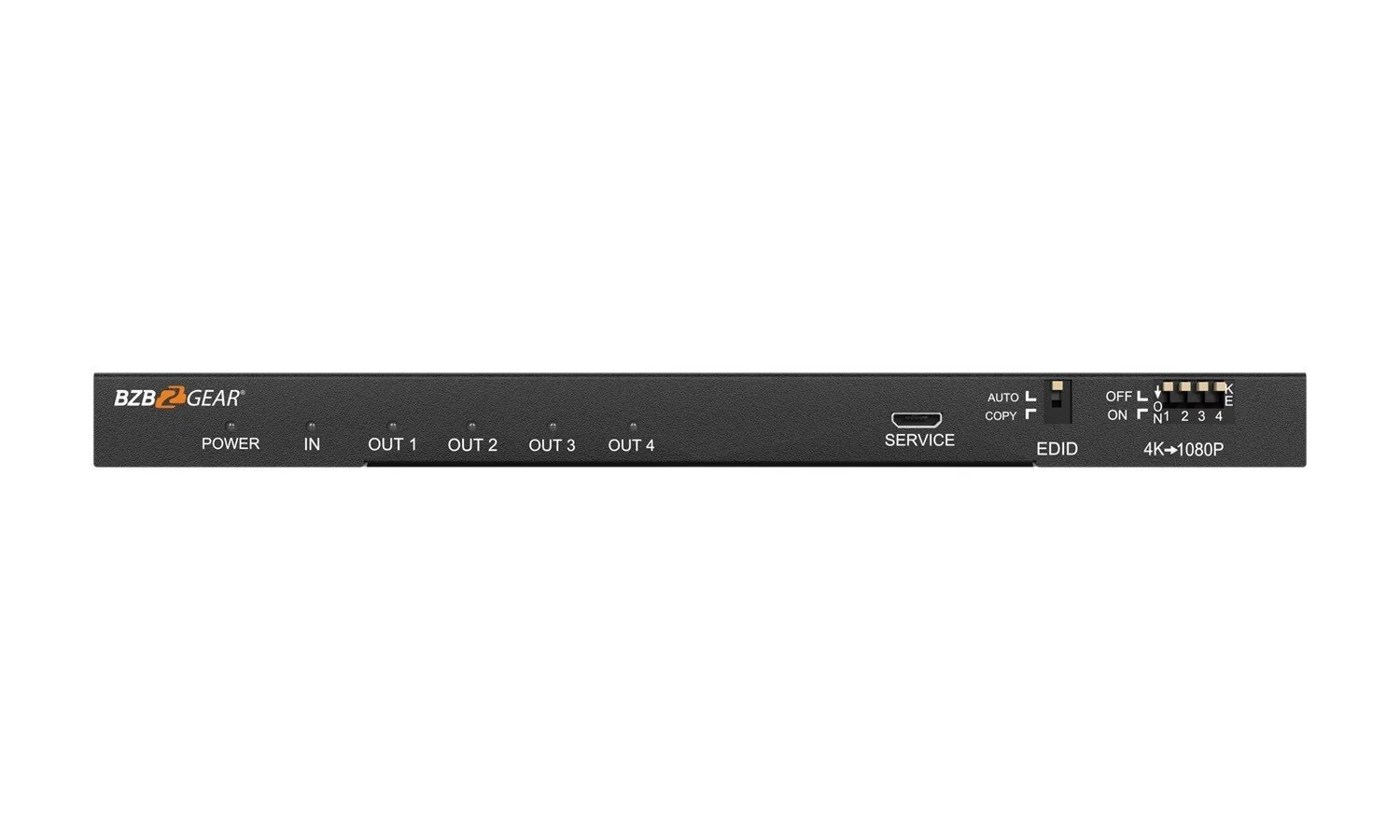

EDID has copy and auto modes for settling stubborn handshakes, and audio is broken out to optical S/PDIF and analog stereo for a separate sound system. The optical output carries LPCM, Dolby 5.1, Dolby TrueHD and DTS. The enclosure is metal.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18Gbps
Video Resolutions	720P@50/60Hz, 1080P@50/60Hz, 4K2K@24Hz, 4K2K@30Hz, 4K2K@50/60Hz (4:4:4)
Input ports	1xHDMI Type A [19-pin female]

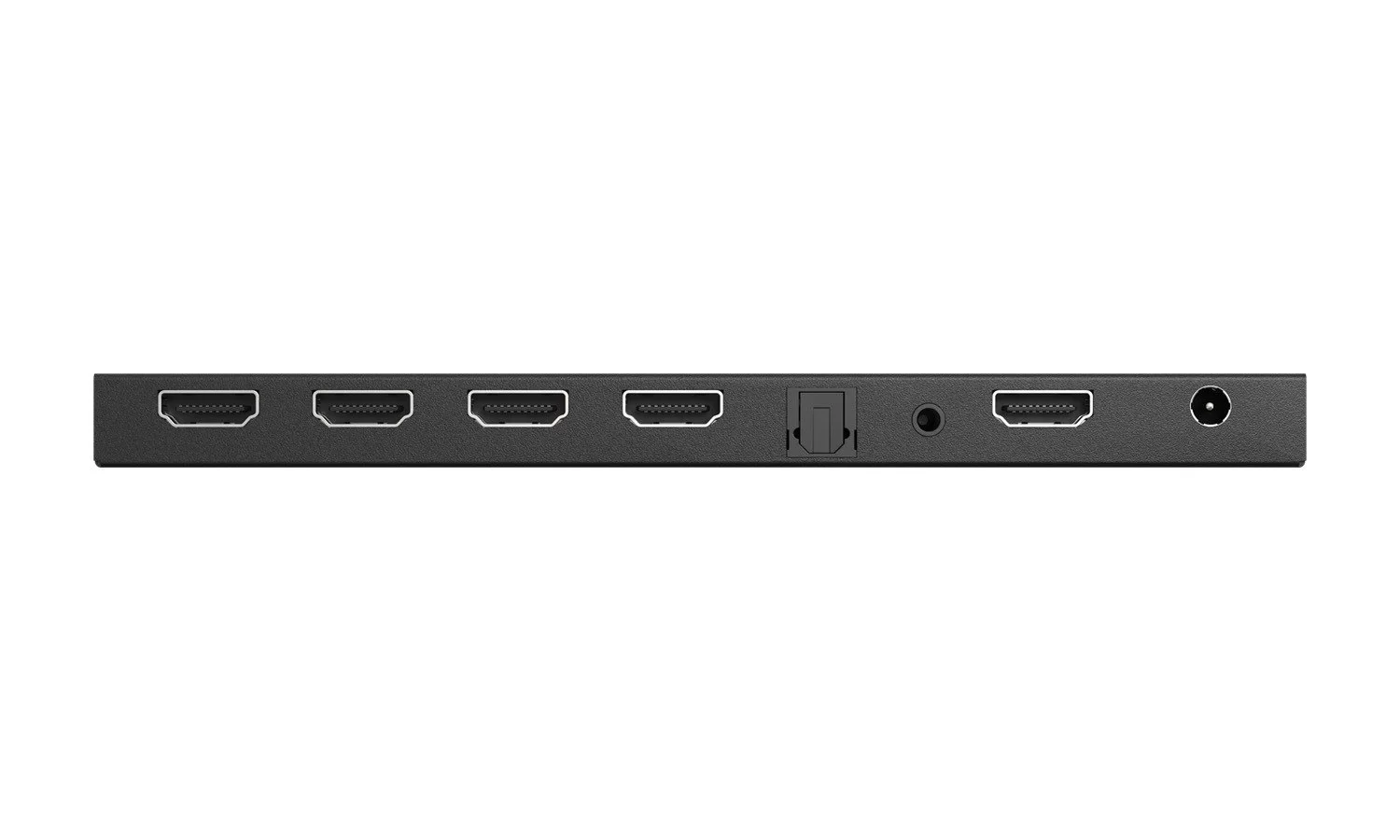

Output ports	4xHDMI Type A [19-pin female] 1xL/R Audio out [3.5mm Stereo Mini-jack] 1xOptical out [S/PDIF]
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
L/R Audio Formats	PCM 2.0
