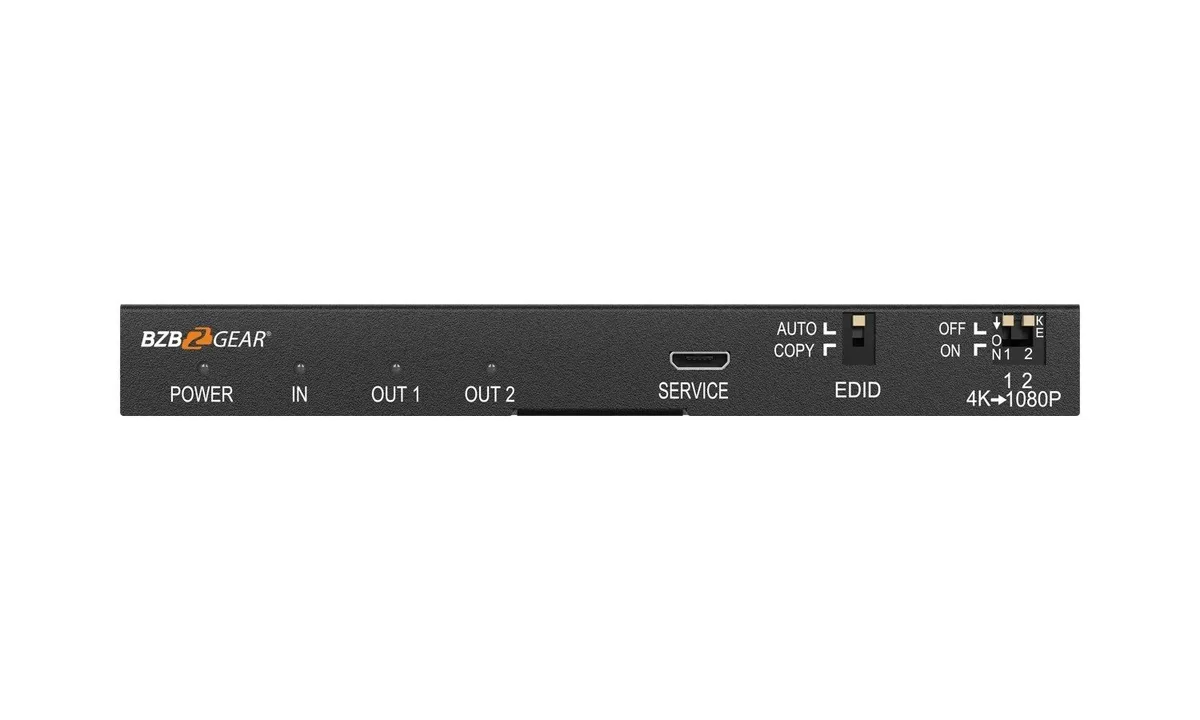

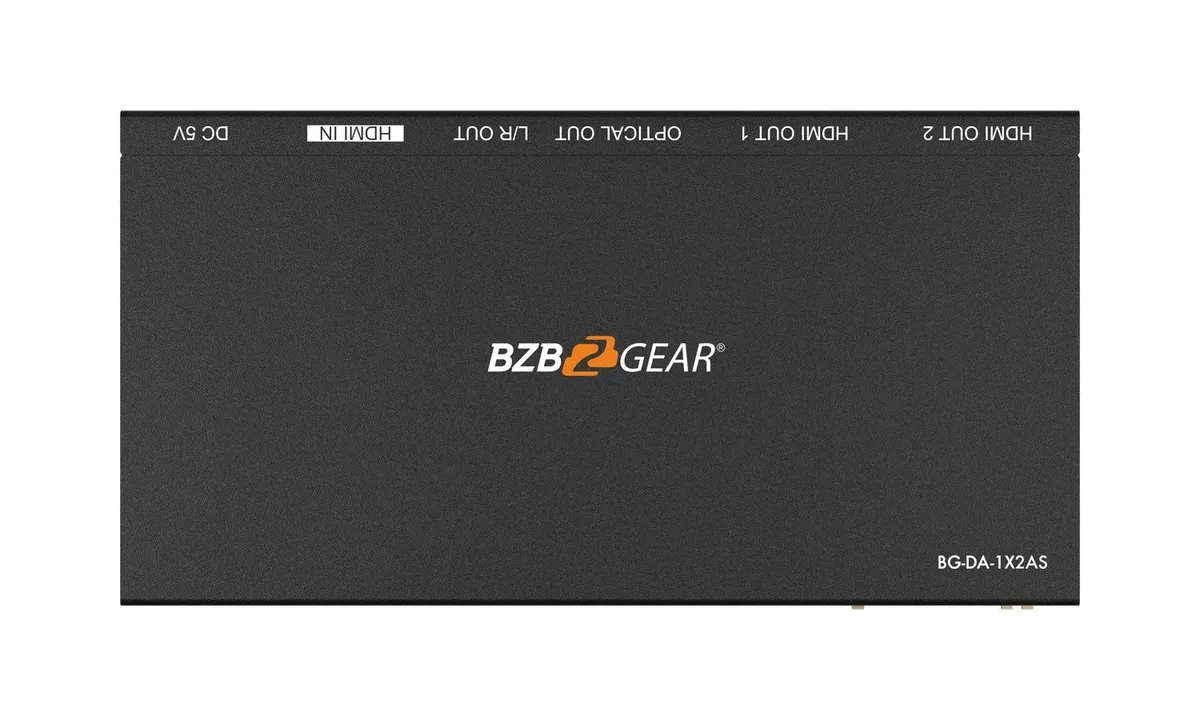

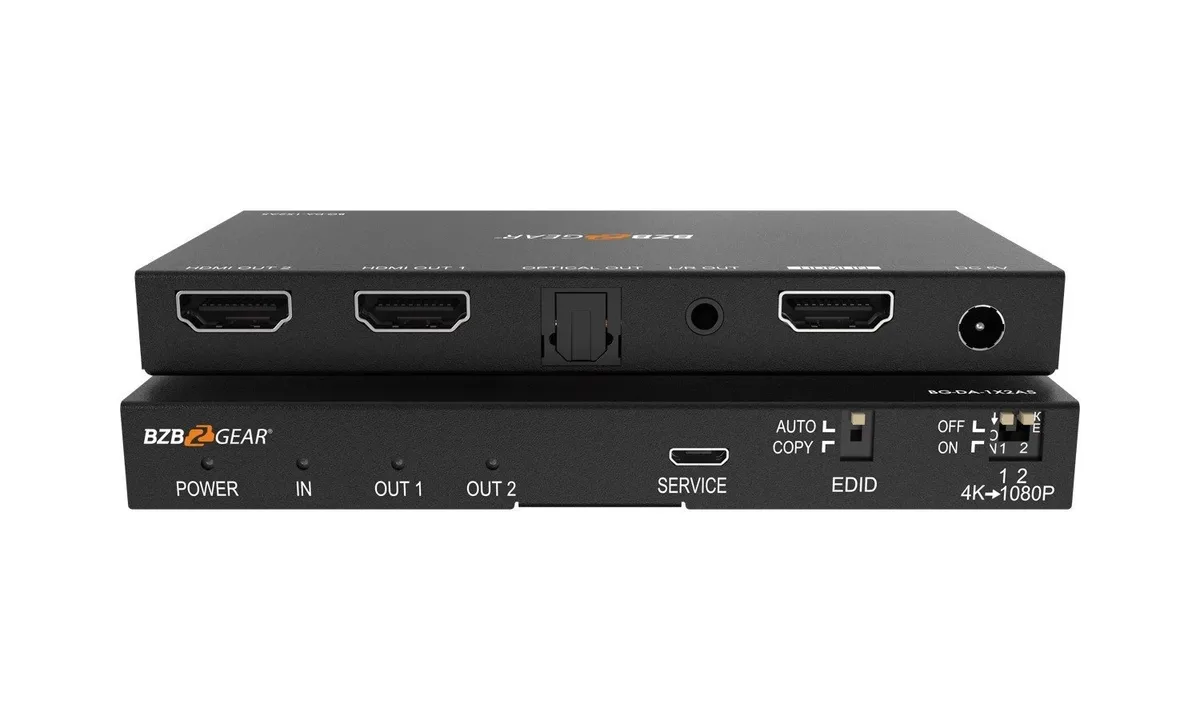

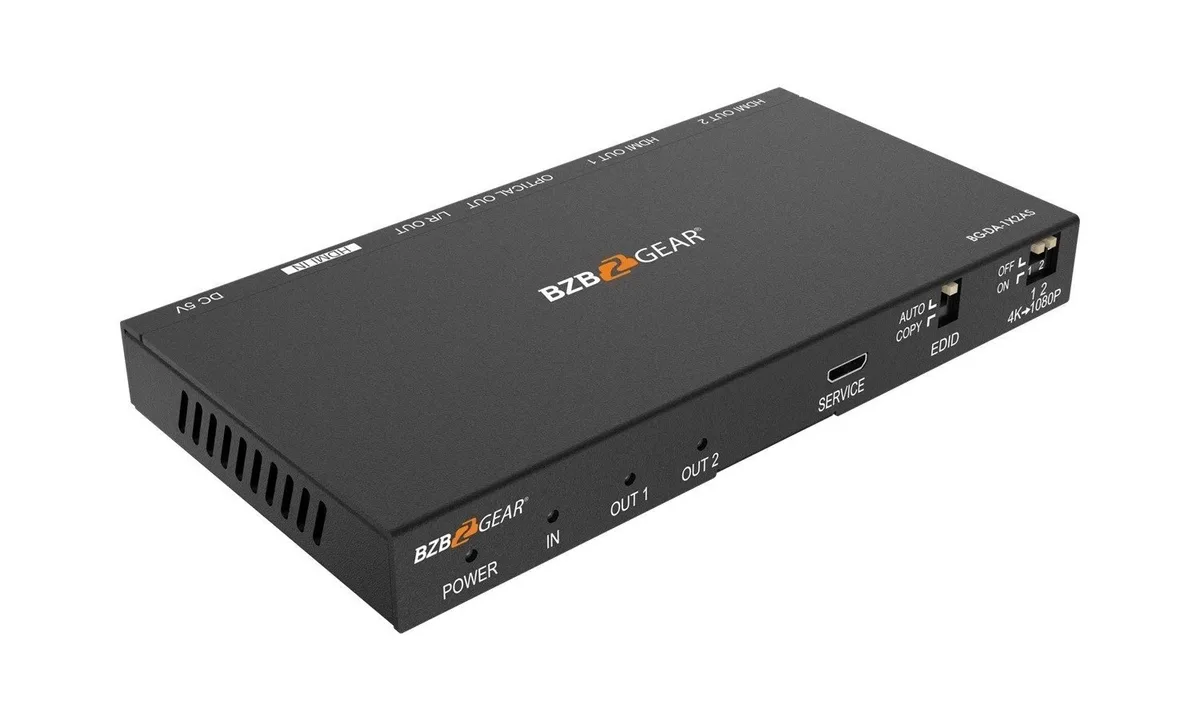

BZBGear BG-DA-1X2AS 1x2 4K HDMI Splitter with Downscaler and Audio Output

The BG-DA-1X2AS copies one 4K60 4:4:4 input to two outputs on an 18 Gbps HDMI 2.0b link with HDCP 2.2 and 1.4. Each output has its own selectable 4K to 1080p downscaler, so a legacy display can share a source with a current one without dragging both down.

EDID can be set to copy a connected display or run in auto mode, which is usually what settles an unstable handshake. Audio is available separately on optical S/PDIF and a 3.5 mm analog stereo output, carrying LPCM, Dolby Digital and DTS on the optical side.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18Gbps
Video Resolutions	720P@50/60Hz, 1080P@50/60Hz, 4K2K@24Hz, 4K2K@30Hz, 4K2K@50/60Hz (4:4:4)
Input ports	1x HDMI Type A [19-pin female]

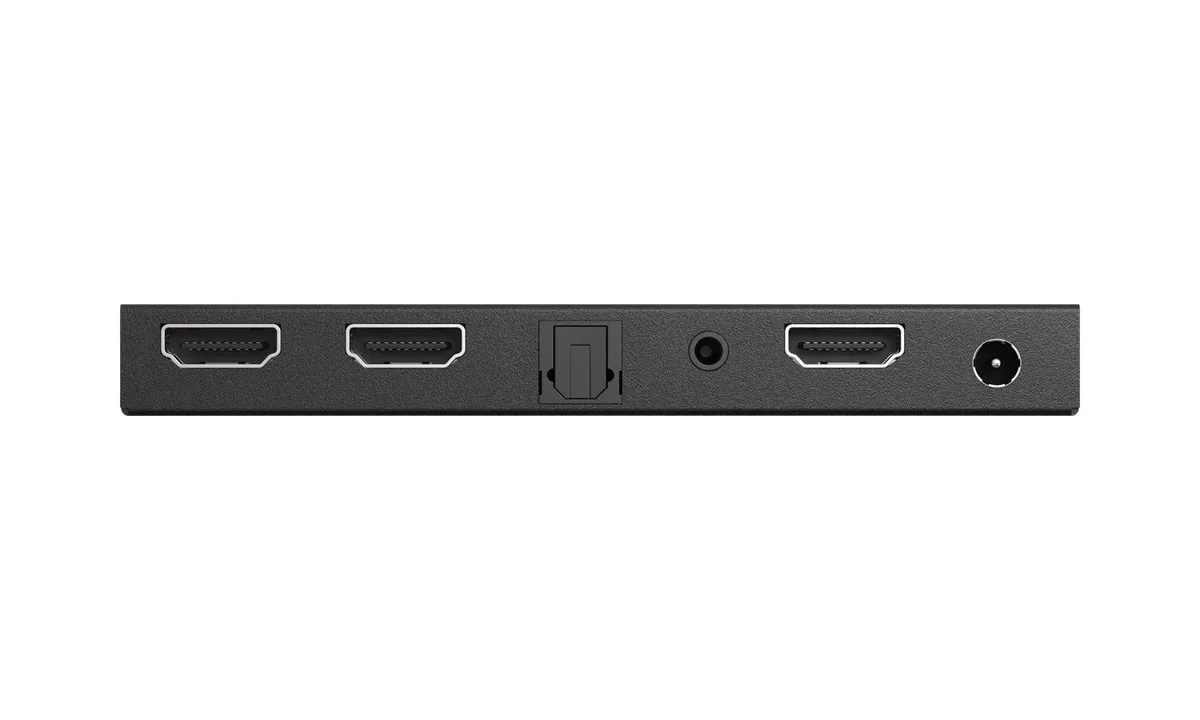

Output ports	2x HDMI Type A [19-pin female] 1x L/R Audio out [3.5mm Stereo Mini-jack] 1x Optical out [S/PDIF]
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
L/R Audio Formats	PCM 2.0
