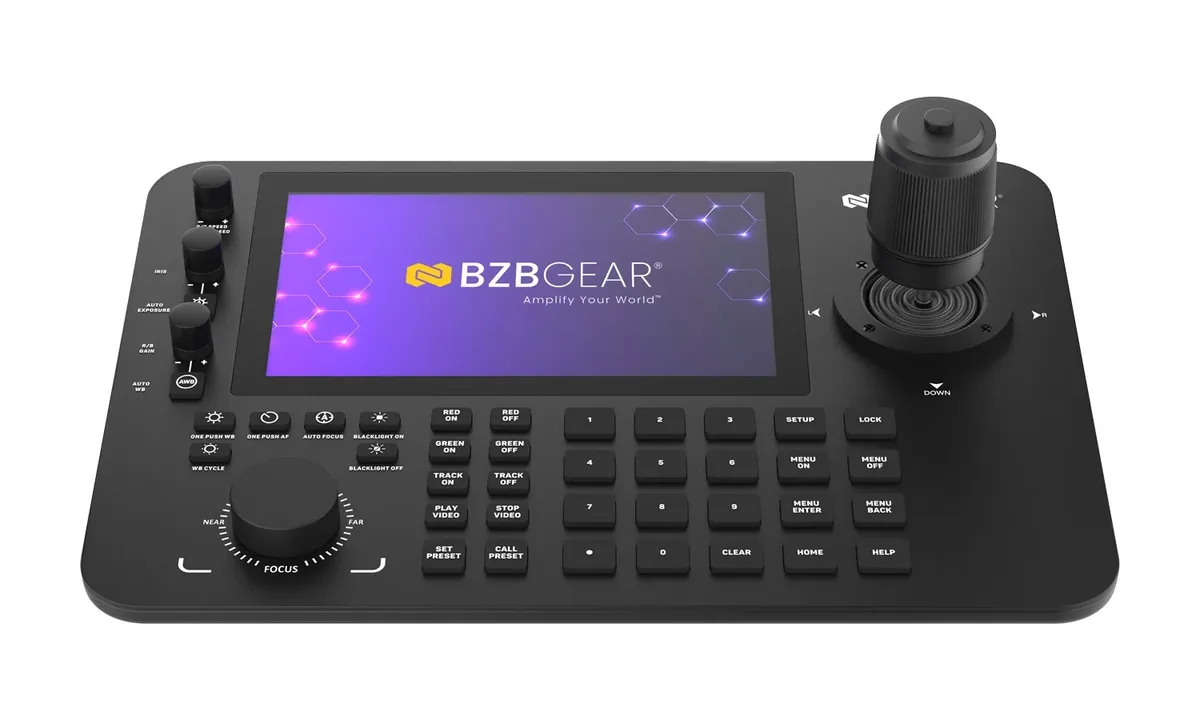

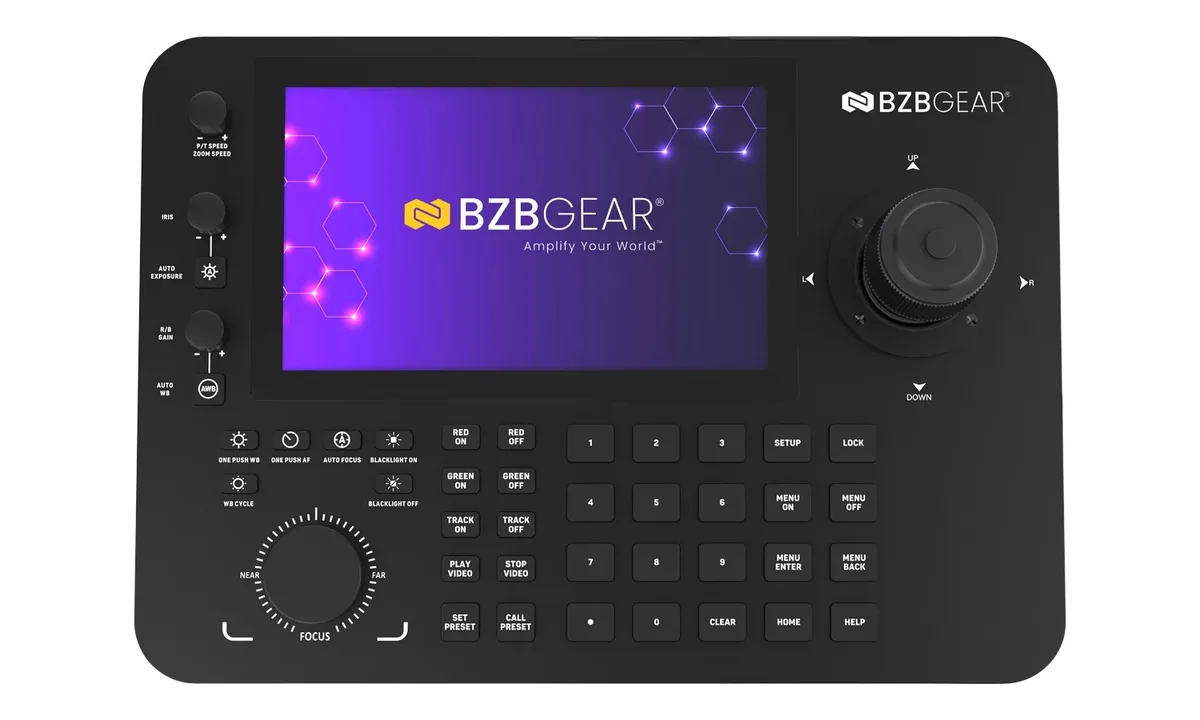

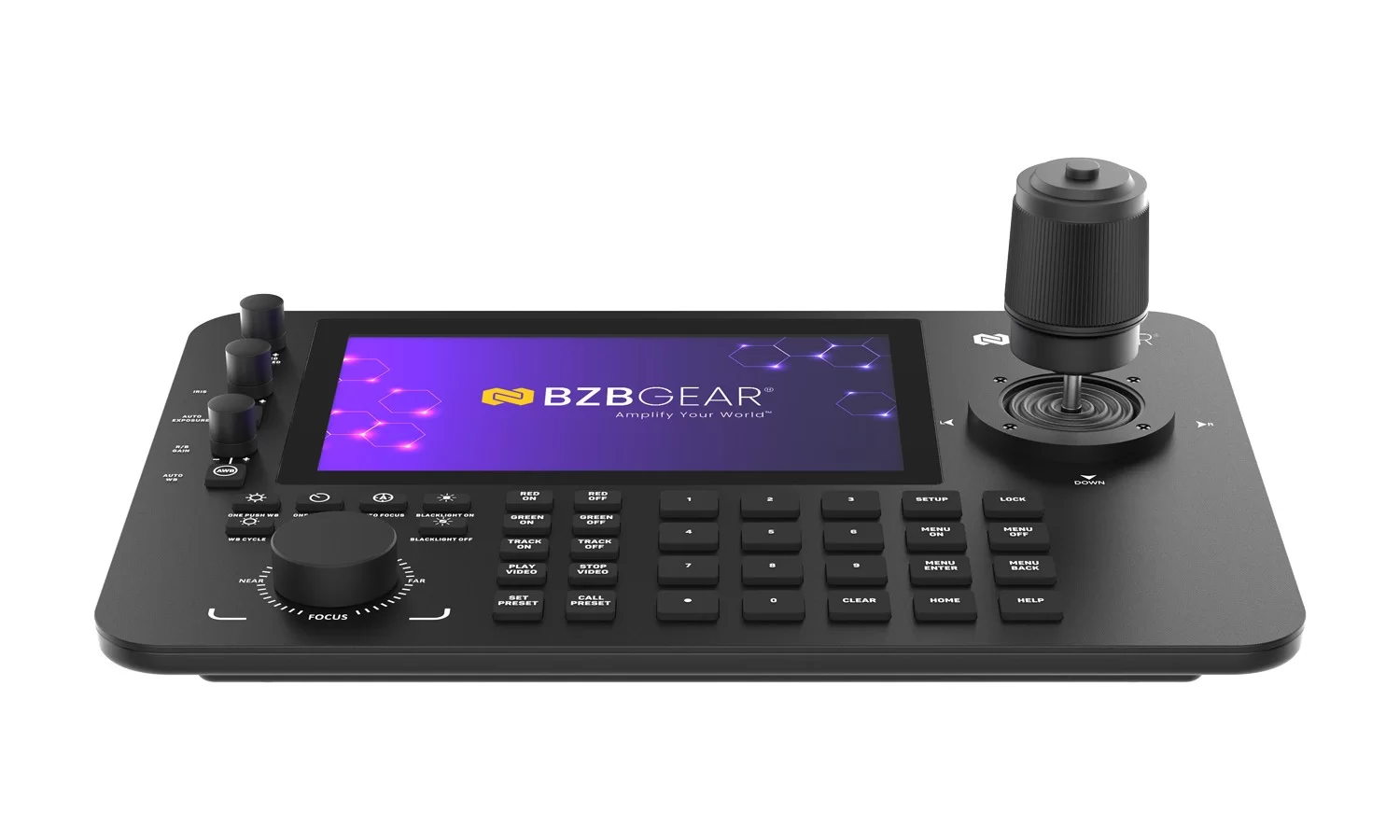

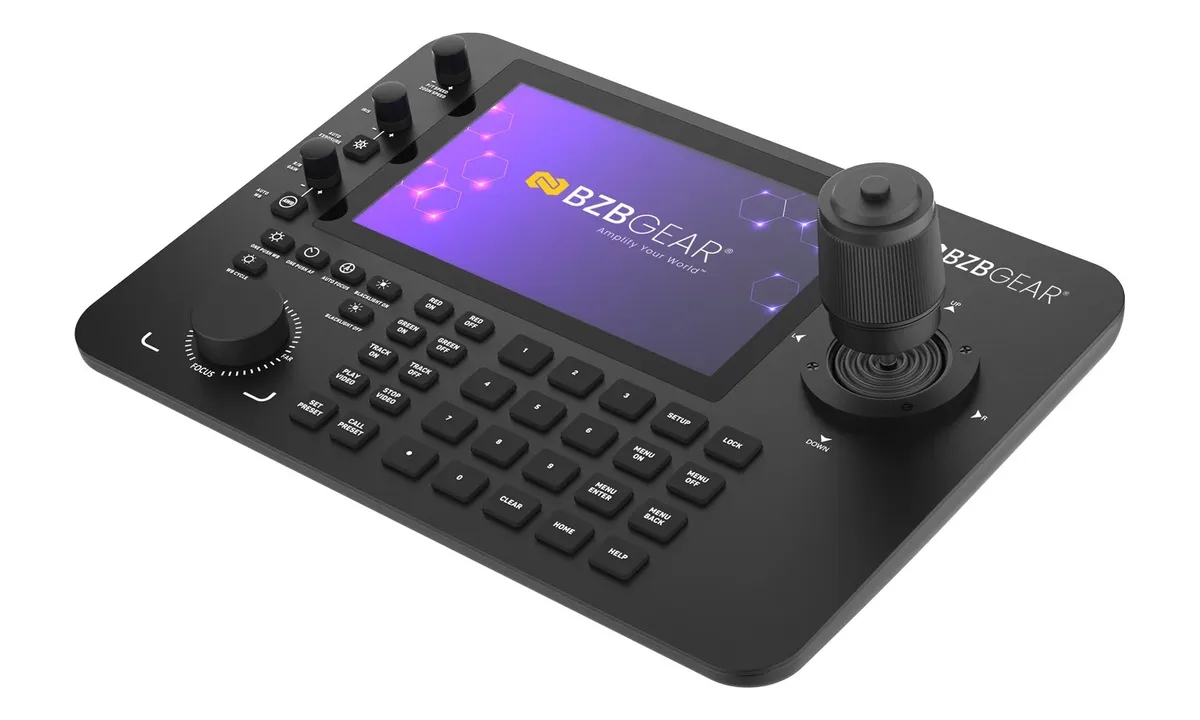

BZBGear BG-Commander-Pro PTZ Joystick Controller

The Commander Pro is the panel to specify when the operator needs to see the cameras, not just drive them. It runs Android behind a 7 inch 1024x600 capacitive touchscreen and decodes network streams itself - up to sixteen 720p H.264 sources, or one 4K60 H.265 - then puts a monitoring picture out over HDMI at 4K30.

Camera control is IP VISCA, ONVIF, NDI, VISCA, Pelco-P and Pelco-D, with RS-232 and RS-422/485 broken out on RJ45 for serial heads. A USB 3.0 port and a Micro-SD slot are on the back for recording and file transfer.

Operating system	Android
Display	7" capacitive touchscreen / resolution 1024x600
Video output	HDMI 4K@30Hz
Video output connector	1x HDMI Type A, 19-pin, female
Stream decoding	1. Supports H264/H265 2. Max supported H264 4x1080p@30fps 3. Max supported H264 16x720p@30fps 4. Max supported H265 1x4K@60fps
Control protocols	IP VISCA, ONVIF, NDI, VISCA, Pelco-P, Pelco-D

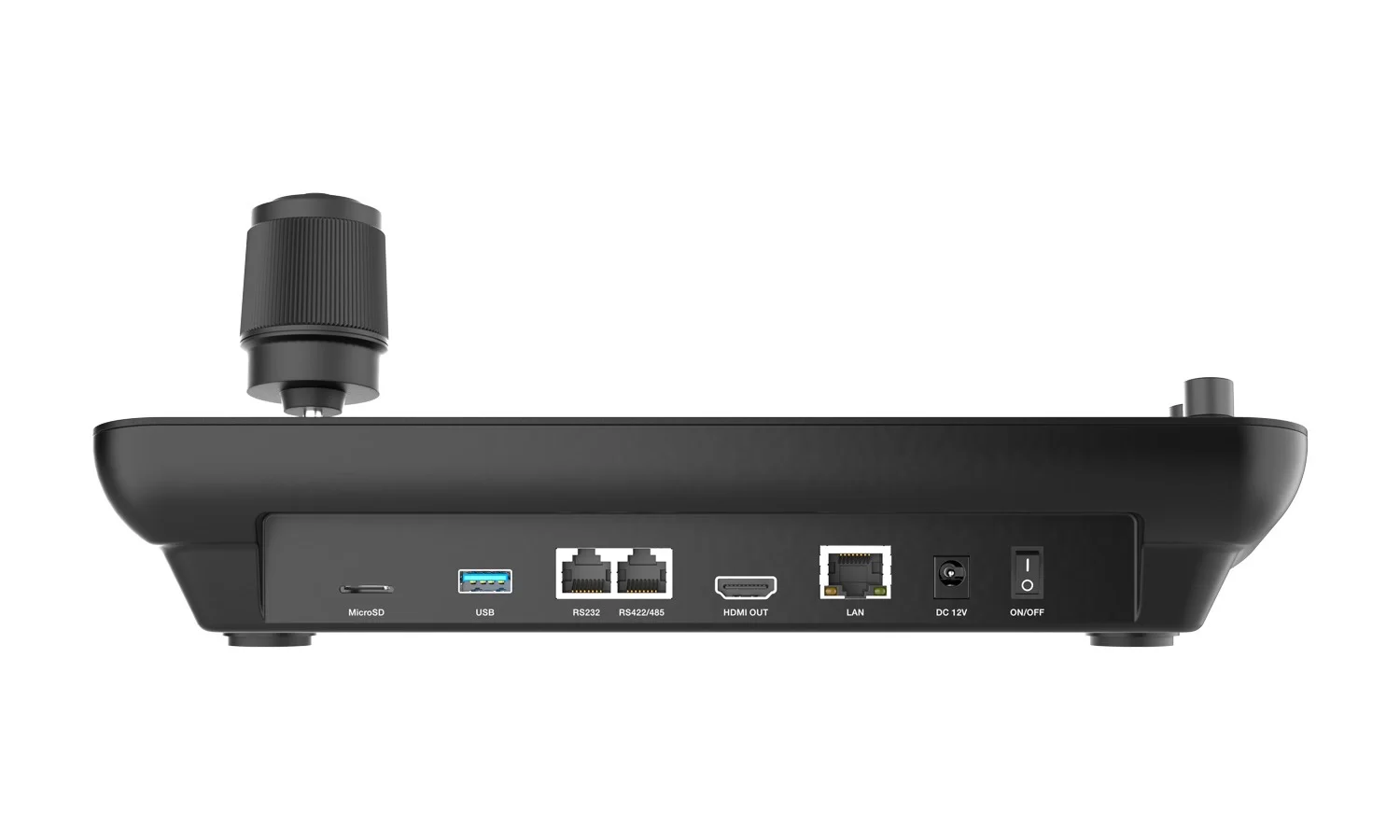

Ports	1x RJ45 (Network) 1x RS232 (RJ45) 1x RS422/485 (RJ45) 1x HDMI output 1x USB 3.0 1x Micro-SD card slot
Power	Standard 5.5/2.1 power interface, DC 12V2A+/-10%
Packed dimensions	14 x 9.6 x 6.1in [365 x 245 x 155mm]
Weight	3.75 Lbs [1.7kg]
