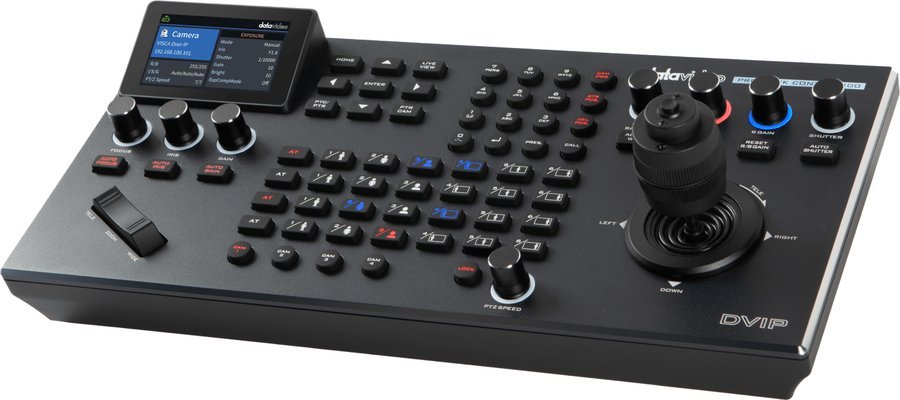

Datavideo ProTrack Control 100 PTZ Camera Controller
The ProTrack Control 100 is a four-camera PTZ controller aimed at rooms where the cameras were not all bought at the same time. It speaks DVIP, VISCA, VISCA over IP, Pelco-D, Pelco-P, ONVIF and NDI, and stores up to 999 camera profiles with 255 presets each, so a house panel can be moved between venues without reprogramming from scratch.
Cameras connect on four RS-422/RS-232 ports plus a single Ethernet port for DVIP. A 3 inch 640 x 360 panel on the surface shows status without a separate monitor, and an HDMI output up to 4K30 feeds a confidence display. There is a tally input for integration with a switcher, and firmware updates run from the web UI or over USB. The panel measures 354 x 165 x 120 mm.
| Maximum Camera Control | 4 |
|---|---|
| Camera Profiles | Up to 999 |
| Presets | 255 per camera |
| Control Protocols | VISCA, VISCA over IP, Pelco-D, Pelco-P, DVIP, ONVIF, NDI |

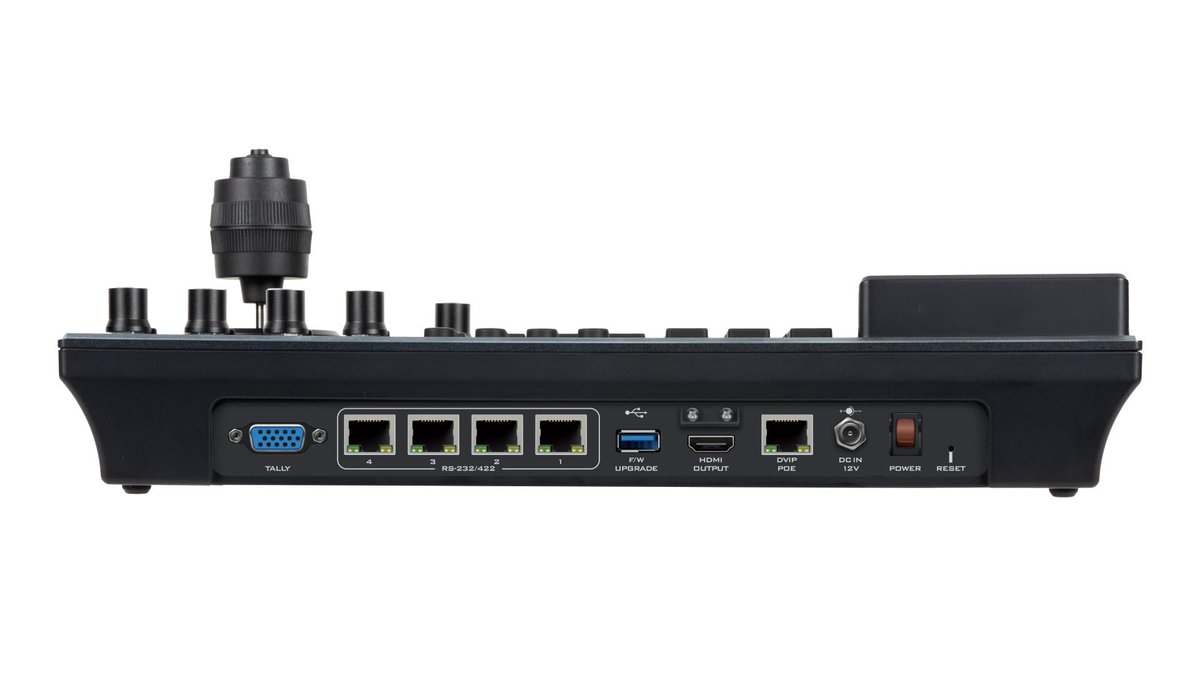

| Camera Connections | 4 x RS-422 / RS-232, 1 x Ethernet (DVIP) |
| Input / Output | 1 x tally input, 1 x HDMI output up to 4K30 |

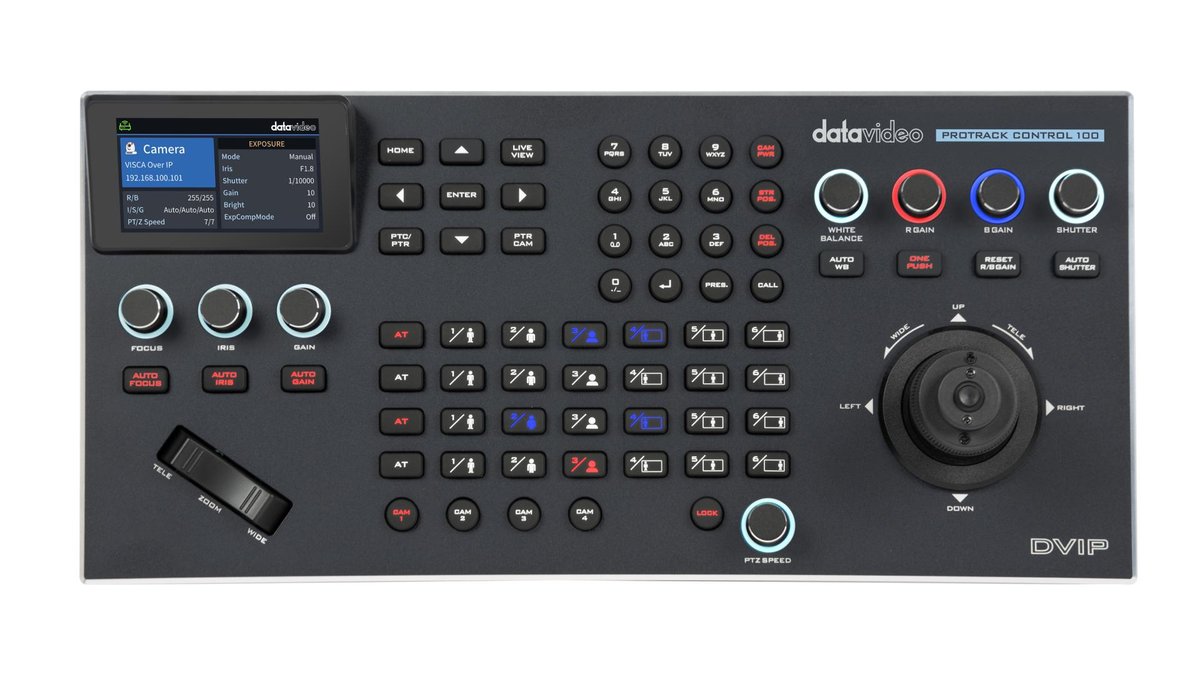

| Built-in Panel | 3 inch, 640 x 360 |
| Firmware Upgrade | Web UI, or OSD plus USB |
| Dimensions | 354 x 165 x 120 mm |
