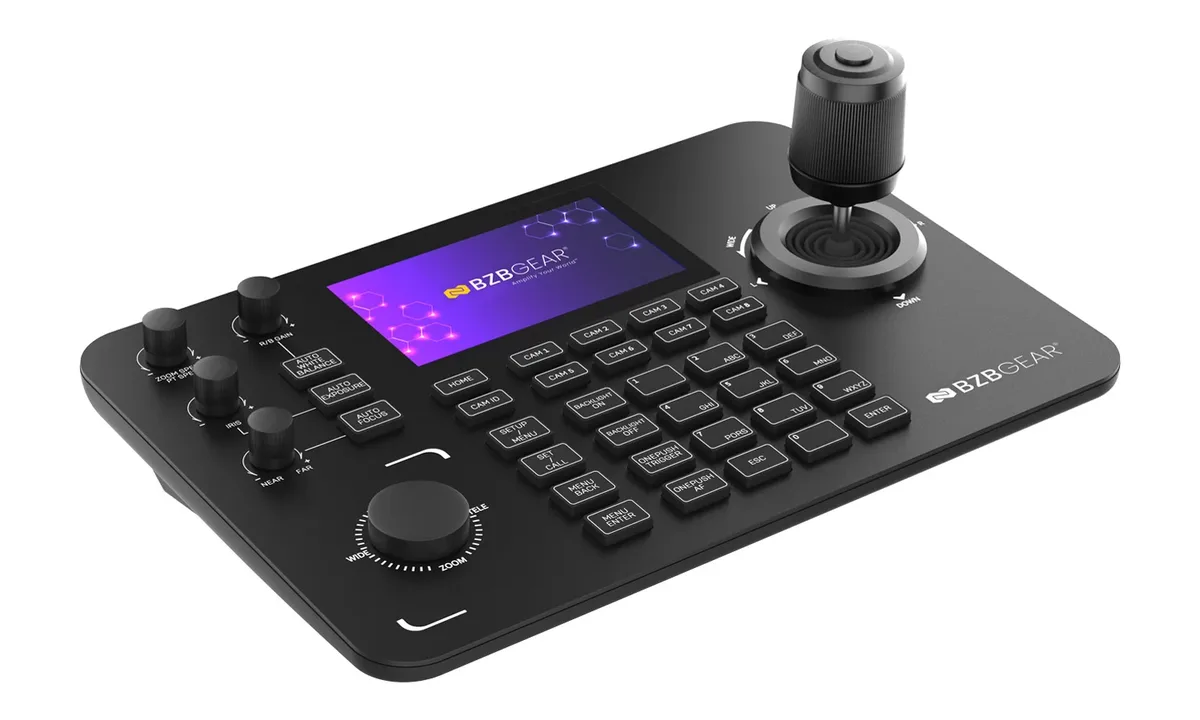

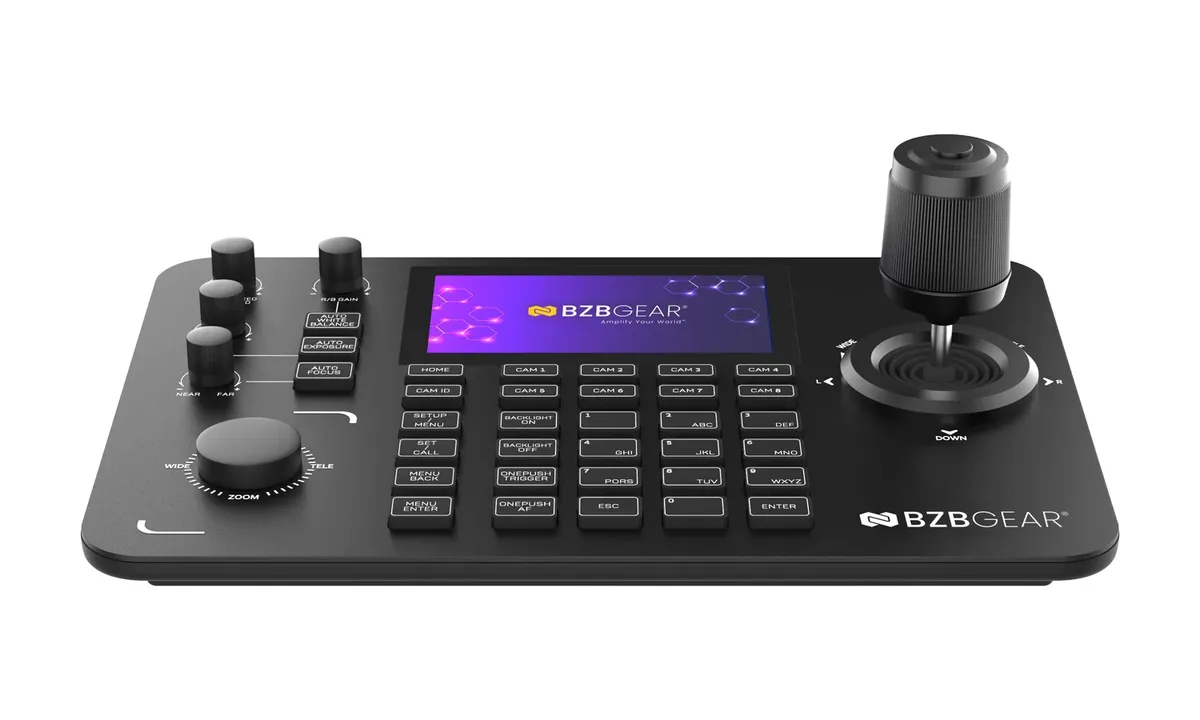

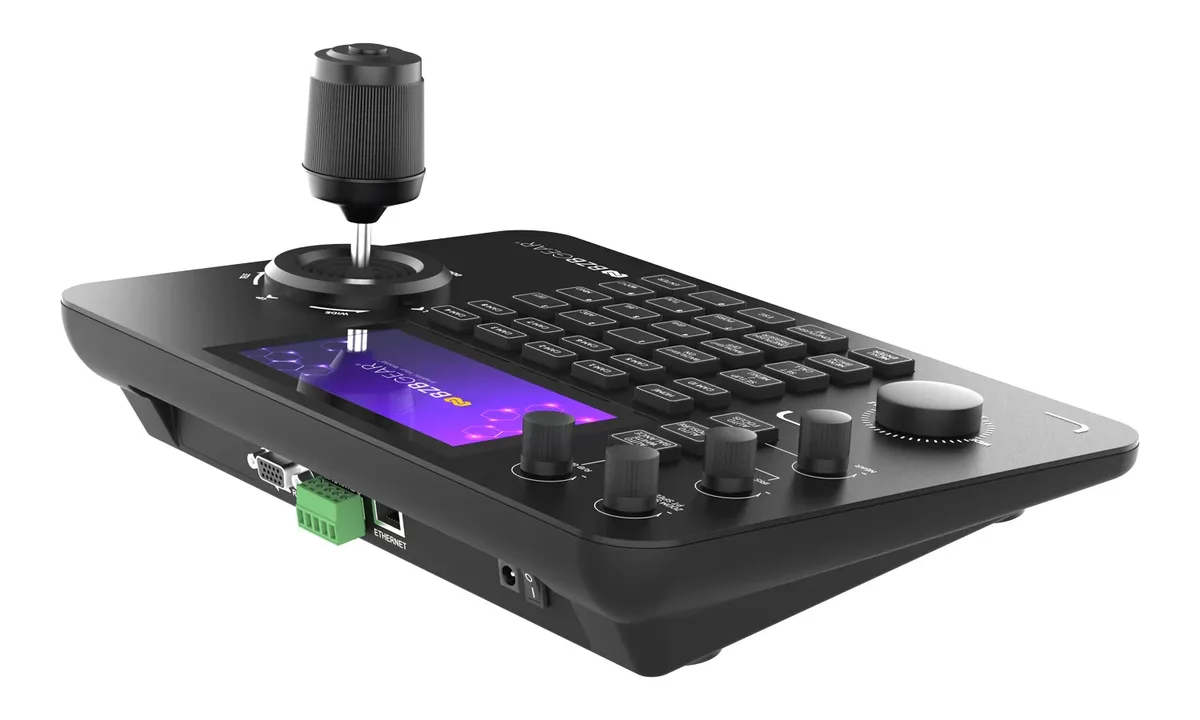

BZBGear BG-Commander-G2 PTZ Joystick Controller

The Commander G2 adds a 720x1280 touchscreen to the joystick panel, which is what turns camera selection from counting channel buttons into tapping a named camera. It searches the network with ONVIF and NDI and populates itself, so commissioning a multi-camera room does not mean typing IP addresses.

Control goes out over IP - VISCA over IP on UDP or TCP, ONVIF, NDI - or over RS-422 and RS-232 for older heads, with Pelco-P and Pelco-D also supported. Power is PoE to 802.3af, at or bt, or the 12 V supply. The panel carries a 4D joystick, a self-resetting knob, a stepless knob and backlit silicone buttons.

Operating system	Linux
Control protocols	VISCA over IP (UDP/TCP), ONVIF, NDI, VISCA, PELCO-P, PELCO-D
Camera discovery	ONVIF, NDI

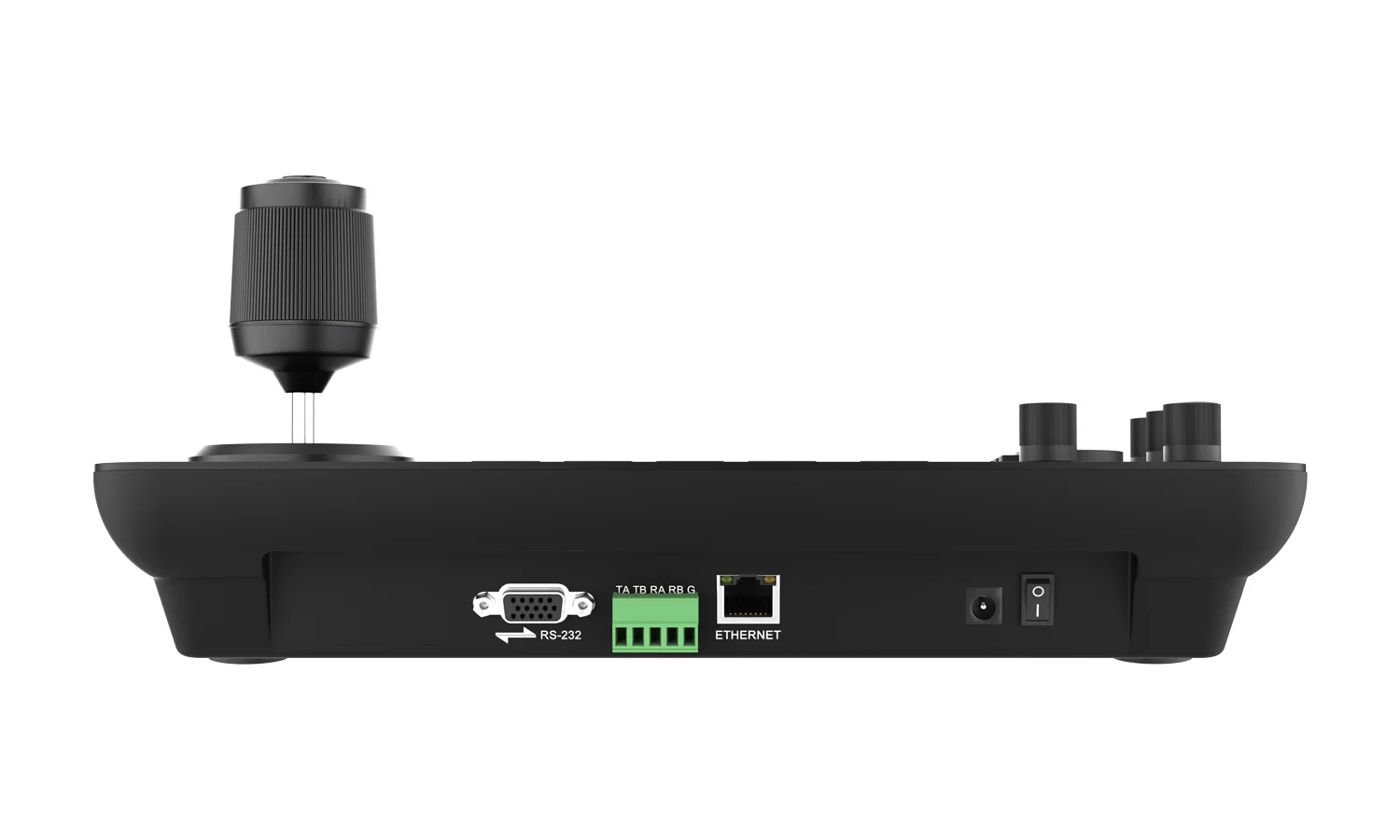

Communication interfaces	RS-422, RS-232, RJ45
Display	HD touchscreen (720x1280)

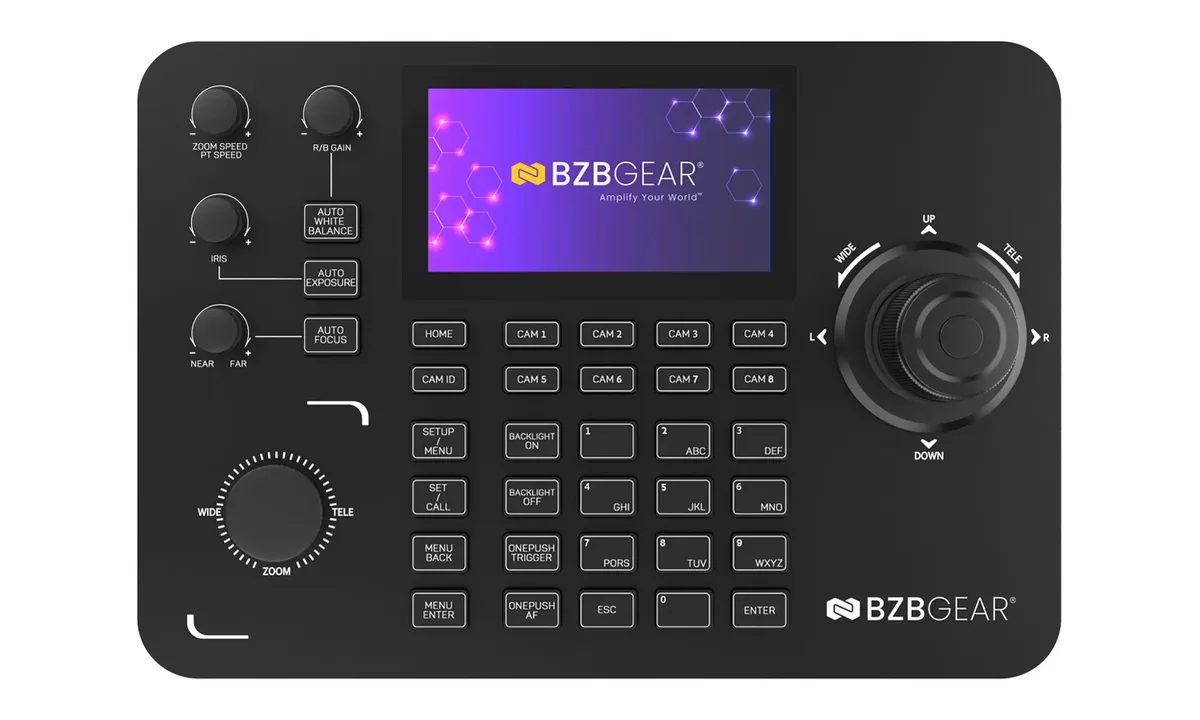

Controls	Self-resetting knob, stepless knob, backlit silicone buttons, 4D joystick
PoE standards	PoE 802.3af/802.3at/802.3bt standards
Power supply	DC12V-2A (Center Positive, Outer Negative)
Power consumption	<=5W
Operating temperature	14 degreesF to 131 degreesF / -10 degreesC to 55 degreesC
