Blackmagic UltraStudio Monitor 3G
UltraStudio Monitor 3G is a compact Thunderbolt 3 playback device that adds true SDI and HDMI video output to a laptop or desktop. It is built for monitoring an edit, color grade, or playout on a broadcast display rather than a computer screen, so what you see on the reference monitor matches what will air. The small metal enclosure travels easily and installs with a single Thunderbolt cable.

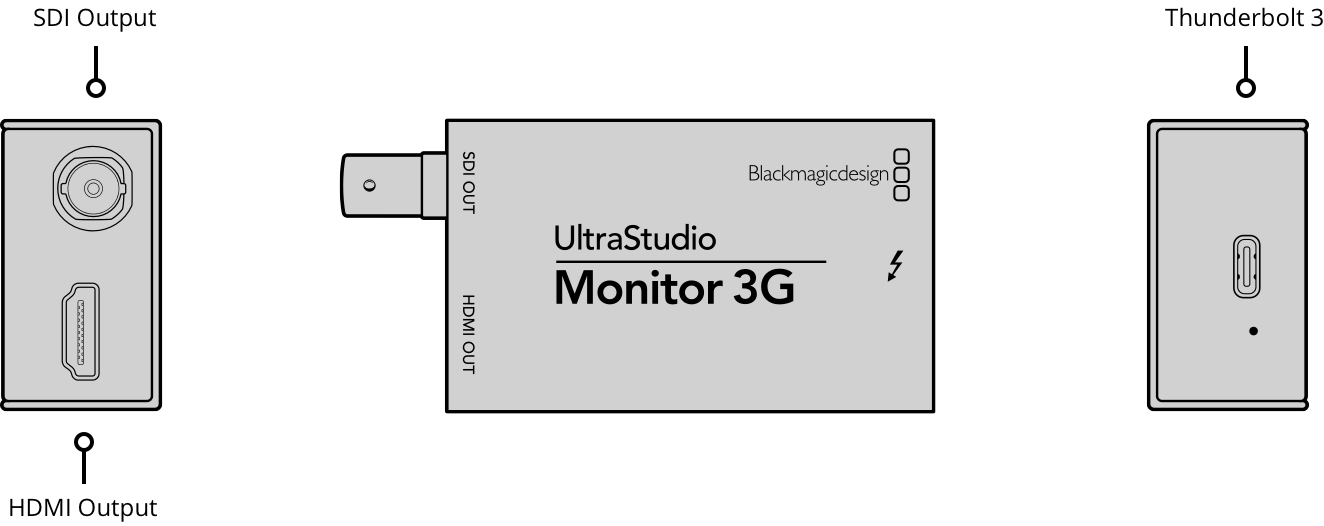

Playback is output only, with one 10-bit SD/HD switchable SDI output and one HDMI 2.0 output at SDI rates of 270Mb, 1.5G, and 3G. It connects to Mac OS, Windows, and Linux hosts over Thunderbolt 3 and ships with a power supply. Blackmagic part number BMD-BDLKULSDMBREC3G.
| Computer Interface | Thunderbolt 3 (Mac OS, Windows, Linux) |
|---|---|
| Direction | Playback (output only) |
| SDI Output | 1 x 10-bit SD/HD switchable |
| HDMI Output | 1 x HDMI 2.0 type A |
| SDI Rates | 270Mb, 1.5G, 3G |
| Included | Power supply |
| Part Number | BMD-BDLKULSDMBREC3G |
