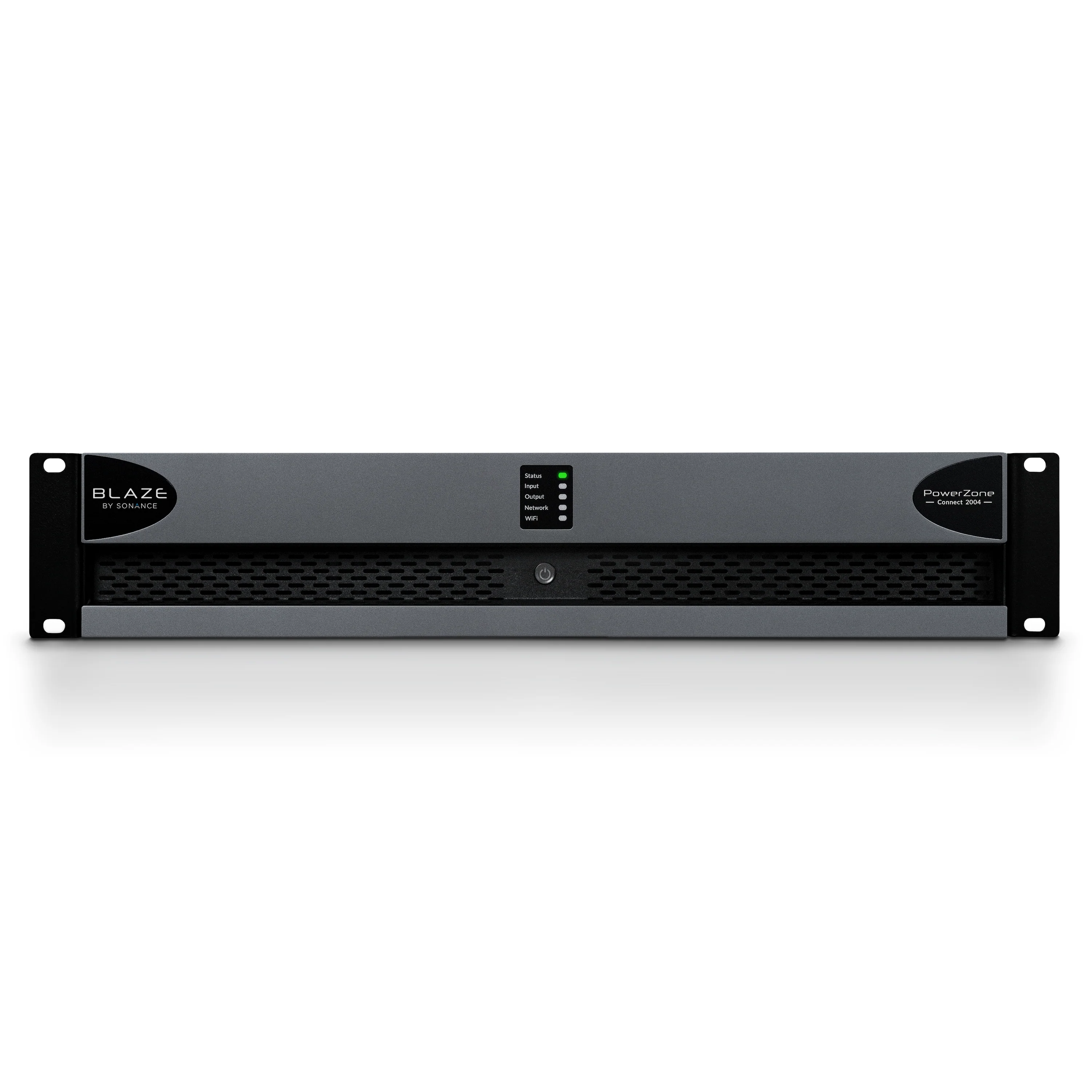

Blaze Audio PowerZone Connect 2004 2000 W 4-Channel Install Amplifier

The PowerZone Connect 2004 moves the Blaze install platform up to a full-rack 2U chassis with 2000 watts of total system power. Single-ended it delivers 4 x 500 W into 2 or 4 ohms and 4 x 250 W into 8 ohms; bridged it delivers 2 x 1000 W into 4 or 8 ohms and the same 2 x 1000 W onto a 70V or 100V line. That is enough for main loudspeakers in a bar, gym, or mid-size worship room rather than background zones.

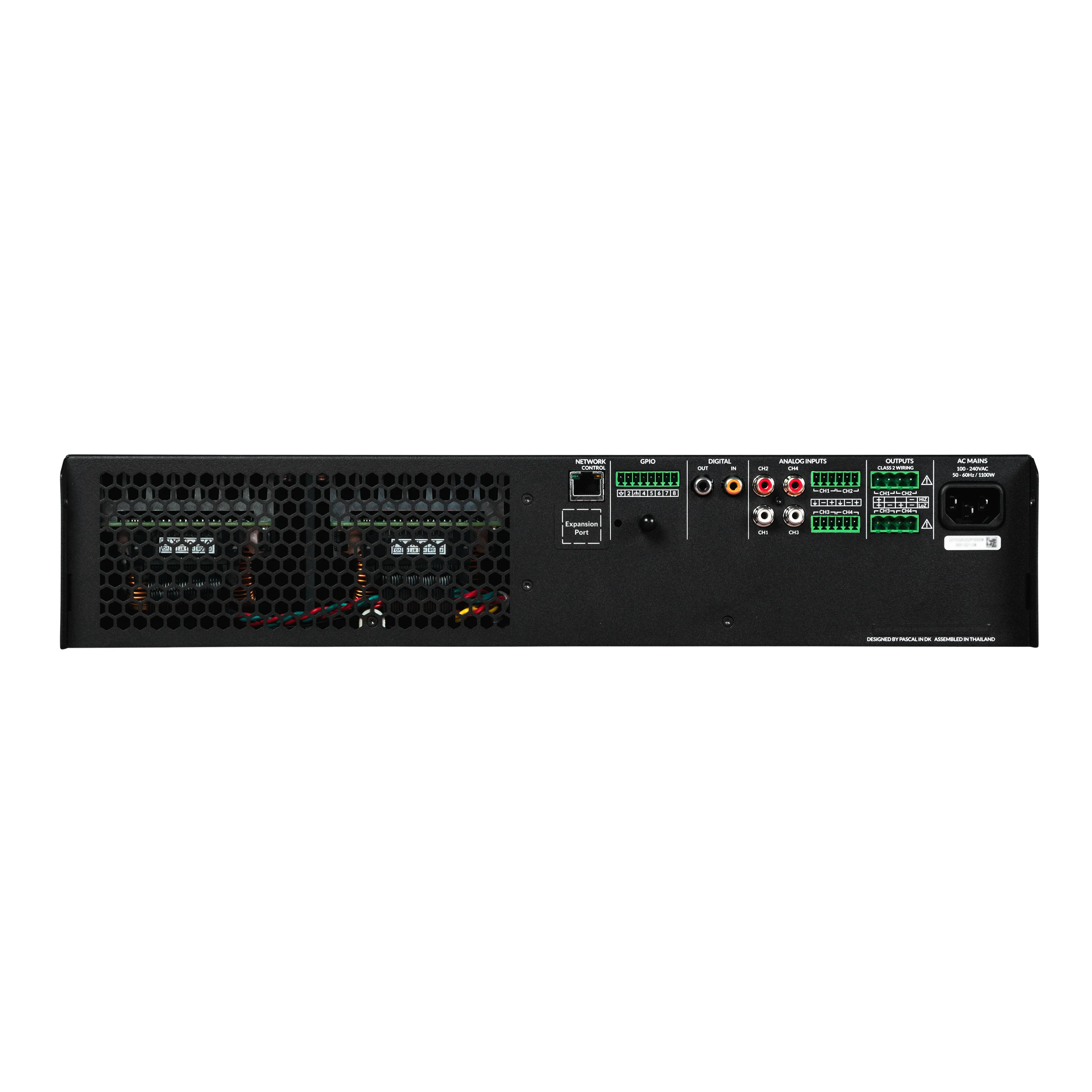

Configuration is done in the PowerZone Control web application built into the amplifier, giving a full input-to-output matrix with no separate DSP hardware. The amplifier uses Pascal UMAC Class-D output stages and a universal UREC power supply with power factor correction, has S/PDIF input and output and configurable GPIO for integration with third-party control, and is ErP and Energy Star compliant plus UL listed. The 2004D variant adds Dante.

Total System Power	2000 W
Channel Configuration	Lo-Z 4 x 500 W at 2/4 ohms; Hi-Z 2 x 1000 W at 70V/100V
Output Power at 2 ohms	4 x 500 W single-ended
Output Power at 4 ohms	4 x 500 W single-ended, 2 x 1000 W bridged
Output Power at 8 ohms	4 x 250 W single-ended, 2 x 1000 W bridged
Output Power at 70V / 100V	2 x 1000 W bridged
Form Factor	Full rack 2U, 17.3 x 3.5 x 12.6 in (439.42 x 88.9 x 320.04 mm)
Weight	16.31 lb (7.4 kg)
