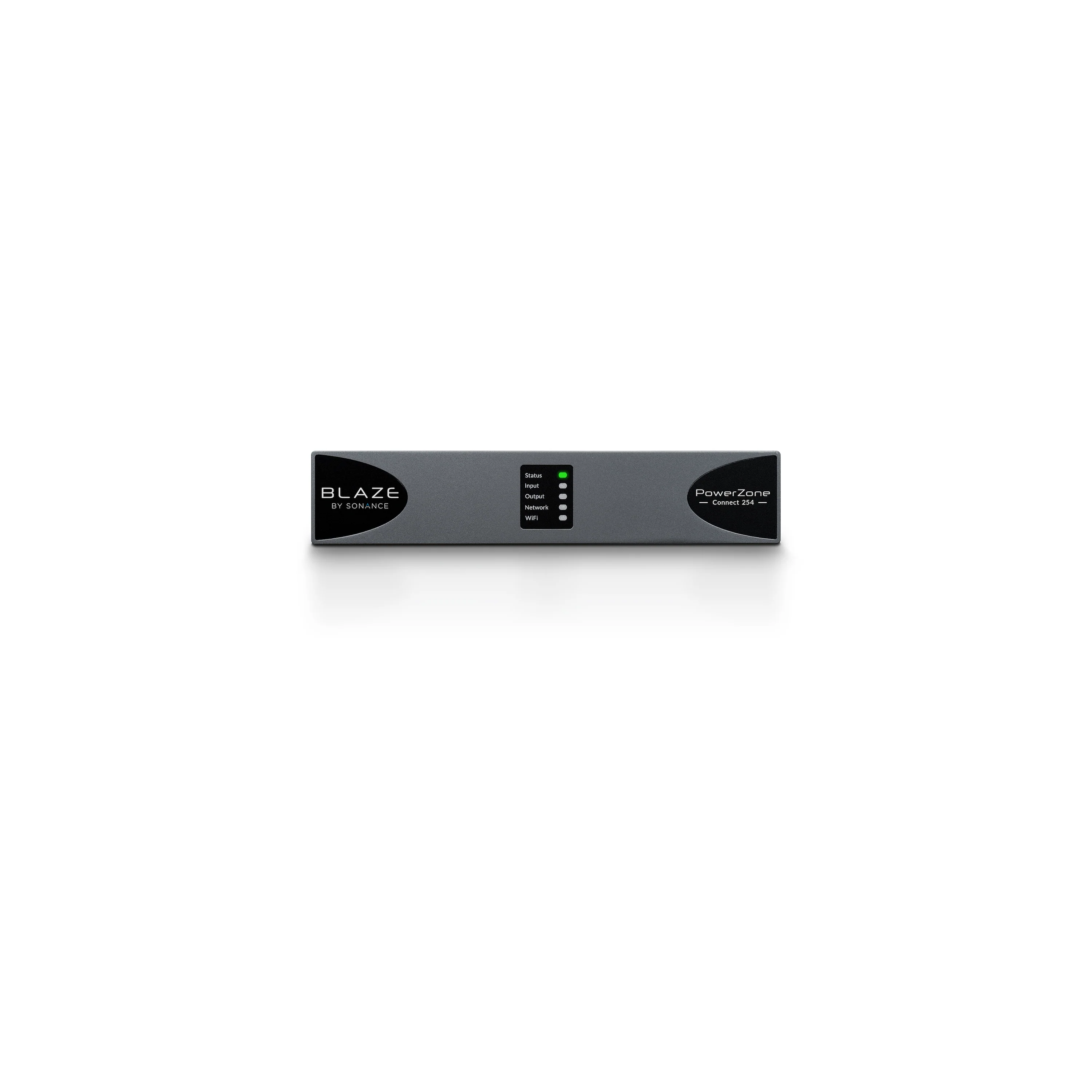

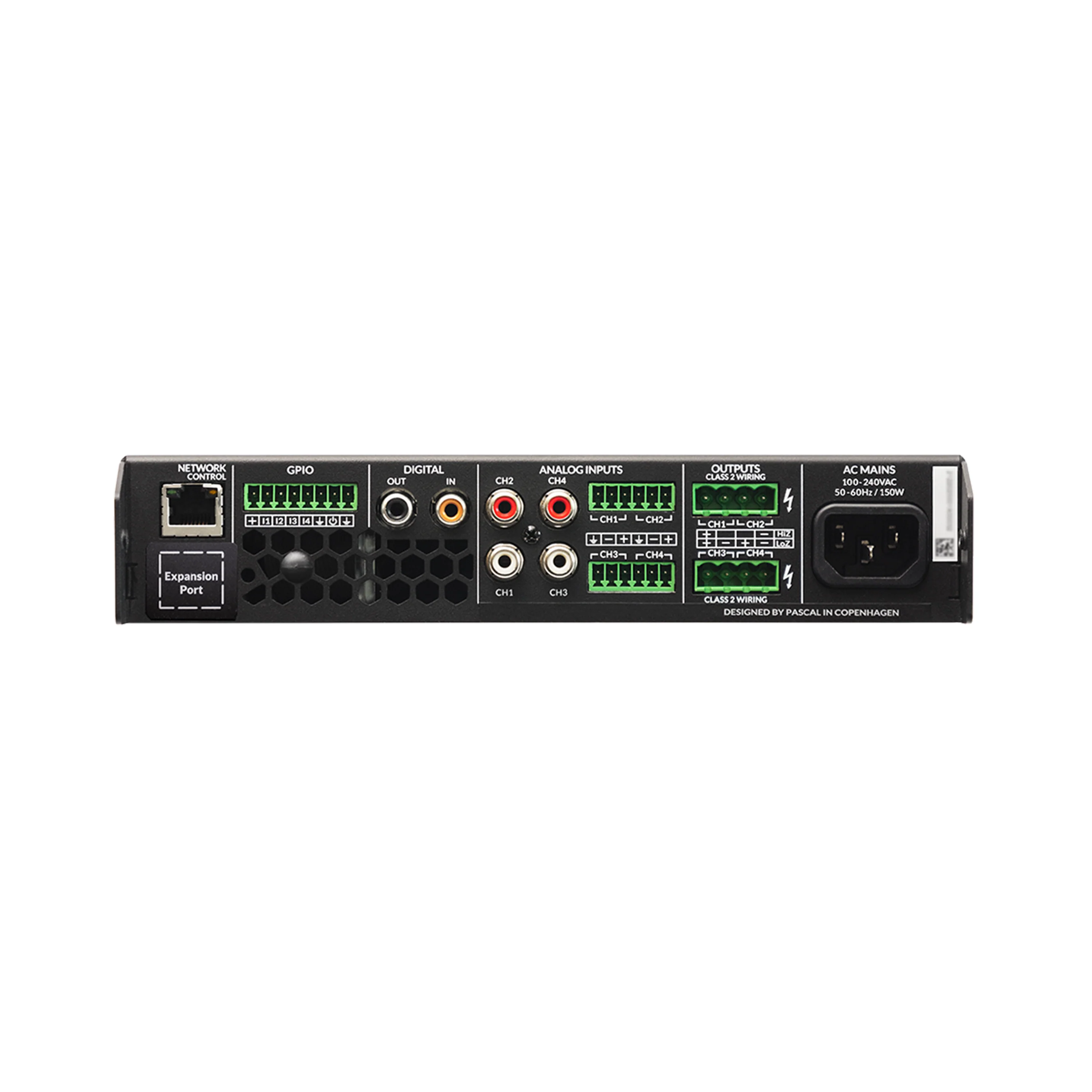

Blaze Audio PowerZone Connect 254 250 W 4-Channel Install Amplifier

The PowerZone Connect 254 scales the Connect platform down to four channels of 60 W each for smaller commercial zones, restrooms, hallways, and back-of-house paging where full 125 W channels are more than needed. In low impedance it produces 4 x 60 W into 4 or 8 ohms; in constant voltage it produces 2 x 125 W at 70V or 100V, with power sharing up to 2 x 125 W across outputs. It weighs 6.17 pounds in a half-rack chassis.

Built-in PowerZone Control DSP handles full-matrix routing and processing from a web browser, with no separate software to install. Power consumption is rated at 75 W, and this model does not include Dante networking.

Total System Power	250 W
Channel Configuration	Lo-Z 4 x 60 W at 4/8 ohms; Hi-Z 2 x 125 W at 70V/100V, power sharing
Output Power at 4 / 8 ohms	4 x 60 W
Output Power at 70V / 100V	2 x 125 W
Powersharing	Up to 2 x 125 W
Power Consumption	75 W
Dante Compatibility	No
Form Factor / Weight	1U half rack, 8.7 x 1.7 x 12.6 in (221 x 43 x 320 mm) / 6.17 lb (2.8 kg)
