Biamp Impera Tango Touch Panel Controller
The Impera Tango is Biamp's central control processor for presentation rooms, classrooms and conference spaces. It runs up to five Apprimo touch panels from one unit, and its interface is laid out in Biamp's Project Designer software, so each room gets controls that match how it is actually used.

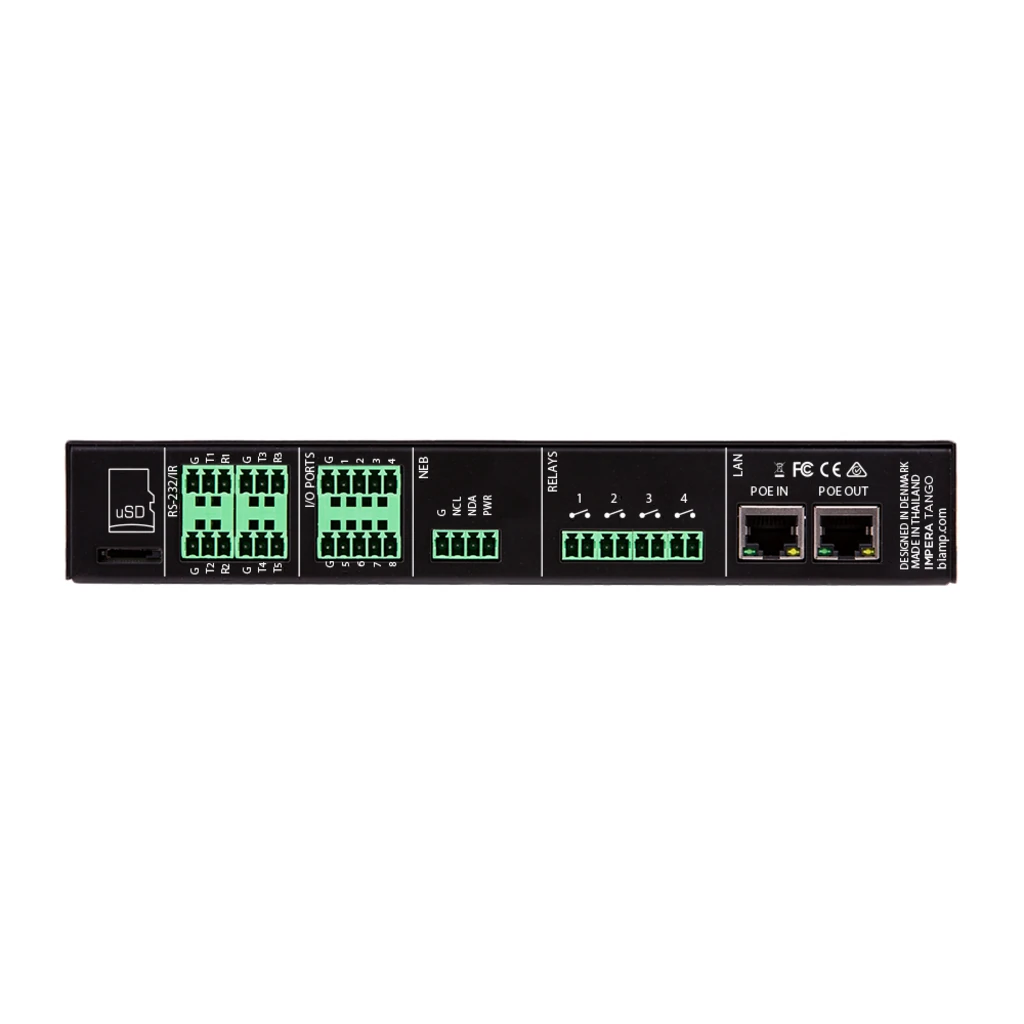

For third-party gear it offers three bidirectional RS-232 or six IR ports, plus two unidirectional RS-232 or four more IR ports, four relays and eight GPIO for screens, lifts, sensors and switches. It is powered over Ethernet (802.3af Class 3), measures 1.4 x 8.7 x 2.8 in., and carries a 5-year warranty.
- Dimensions (H x W x D)1.4 x 8.7 x 2.8 in.
- PowerPoE, IEEE 802.3af Class 3, 15 W; 12 W max output
- Weight1.1 lbs
- Touch Panels SupportedUp to 5 Apprimo touch panels
- RS-232 / IR3 bidirectional RS-232 or 6 IR
| Part Number | 910-01880 |
|---|---|
| Touch Panels Supported | Up to 5 Apprimo touch panels |
| RS-232 / IR | 3 bidirectional RS-232 or 6 IR; 2 unidirectional RS-232 or 4 IR; 1200-115200 bit/s; IR 400 Hz to 500 kHz |
| Relays | 4, 2-pin 0.3 in. Euroblock, 30 VDC / 0.5 A |
| GPIO | 8, 5-pin 0.3 in. Euroblock, open drain, max 24 VDC / 0.5 A |
| Network | RJ-45, 10/100 Mbps, CAT5e or better |
| Power | , IEEE 802.3af Class 3, 15 W; 12 W max output |
| Dimensions (H x W x D) | 1.4 x 8.7 x 2.8 in. (35 x 220 x 70 mm) |
| Weight | 1.1 lbs (0.5 kg) |
| Operating Temperature | 32-86 F (0-30 C) |
| Certifications | FCC Part 15B, UL listed, CE marked, RoHS |
| Warranty | 5 years |

- 11 x terminal connector
- 2 x wall-mount screw and 2 x drywall anchor (4 x 60 mm)
- 2 x rack-shelf mounting screw (M4 x 35 mm)
- 4 x adhesive foot
