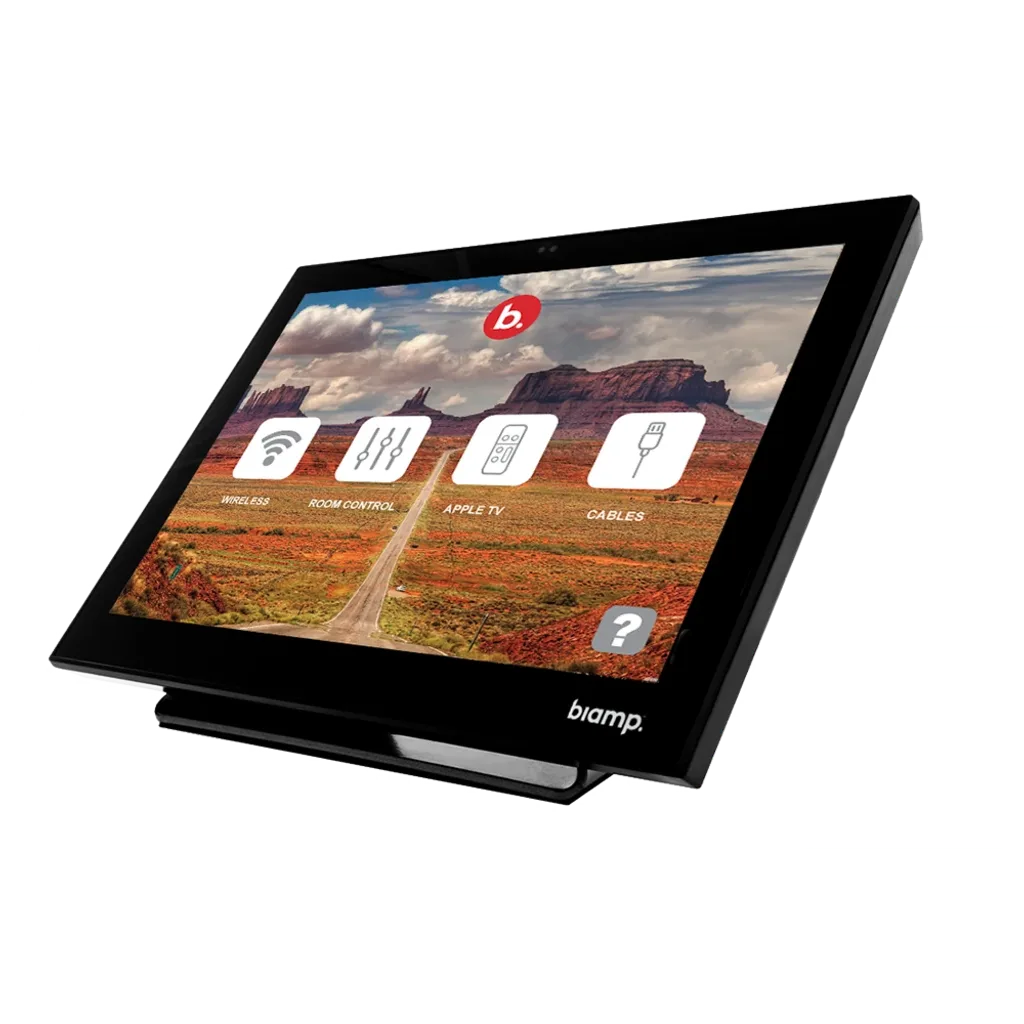

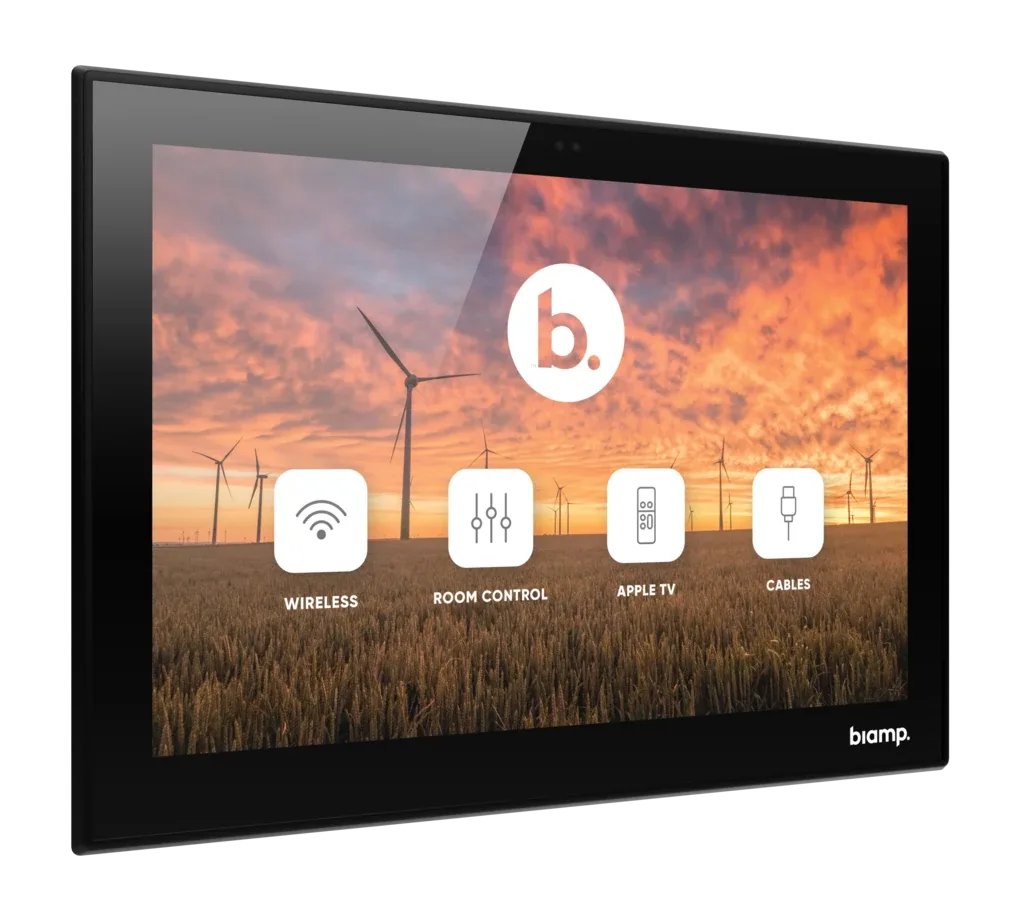

Biamp Apprimo Touch 10 Touch Control Panel (Black)

The Biamp Apprimo Touch 10 Touch Control Panel (Black) is a 10 in touch panel built for system control and user interfaces in meeting rooms, classrooms and control spaces. The capacitive LCD runs at 1280 x 800 and up to 350 nits behind scratch-resistant glass. Layouts come from Project Designer software, which offers pre-built templates and themes or a fully custom, branded interface, and the panel supports Biamp Workplace Control.

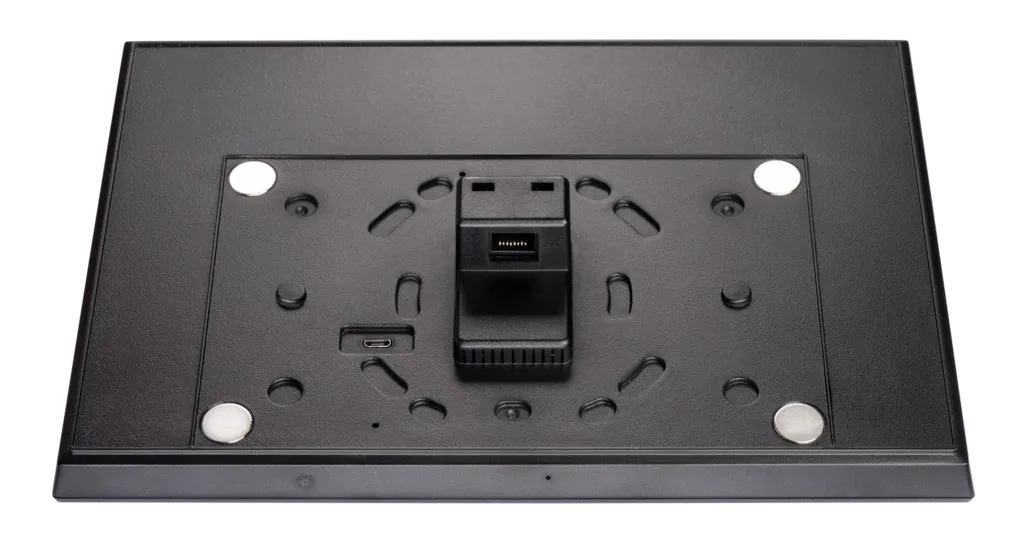

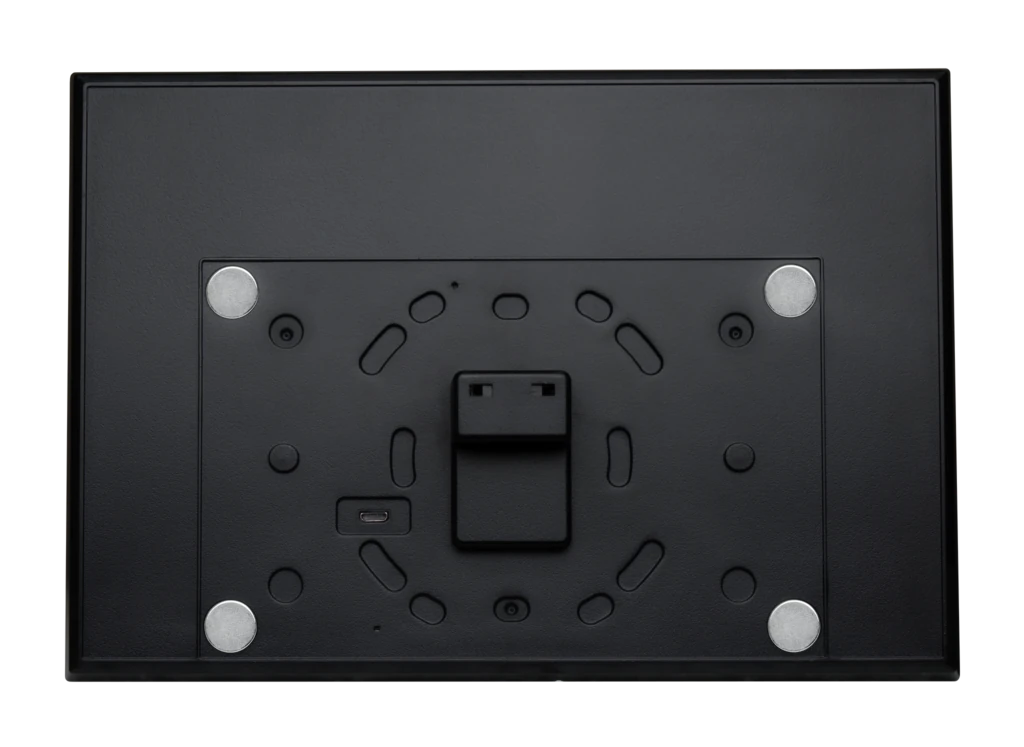

Power handling is rated at PoE (IEEE 802.3at Class 3, 15W), so one CAT5e or CAT6 cable carries power and data. It works with the Impera Alfa II, Lima, Tango and Sierra II controllers. A proximity sensor wakes the screen as someone walks up and an ambient light sensor sets brightness. It mounts in landscape on a magnetic wall plate that fits US, EU and DK single-gang back boxes, or on a table with the optional stand, and firmware loads through a mini USB port. In the box: mounting bracket and screws, ejector pin, USB-OTG adapter and polishing cloth.

  • Dimensions (H x W x D)6.67 inches x 9.7 inches x 1.6 inches
  • Network Connection(s)RJ-45 with Ethernet cable (Cat 5e and above)
  • Ambient Operating Temperature Range32 - 104 deg F (0 - 40 deg C)
  • PowerPoE (IEEE 802.3at Class 3, 15W)
  • Weight1.2 lbs
Power (IEEE 802.3at Class 3, 15W)
Network Connection(s)RJ-45 with Ethernet cable (Cat 5e and above)
ControlImpera Alfa II; Impera Lima; Impera Tango; Impera Sierra II
Included AccessoriesMounting bracket and screws; Ejector Pin; USB-OTG adapter; Polishing cloth
Ambient Operating Temperature Range32 - 104 deg F (0 - 40 deg C)
Humidity10-90% relative humidity (non-condensing)
Dimensions (H x W x D)6.67 inches (169 mm) x 9.7 inches (246 mm) x 1.6 inches (41 mm)
Altitude0-6,600 ft (0-2000m) MSL
Display10 in (254 mm) capacitive touch LCD, 1280x800, 350 nits
Weight1.2 lbs (560 g)
Warranty5 years
Biamp Apprimo: Stylish Control for Extraordinary Experiences
4items in the box
  • Mounting bracket and screws
  • Ejector pin
  • USB-OTG adapter
  • Polishing cloth
