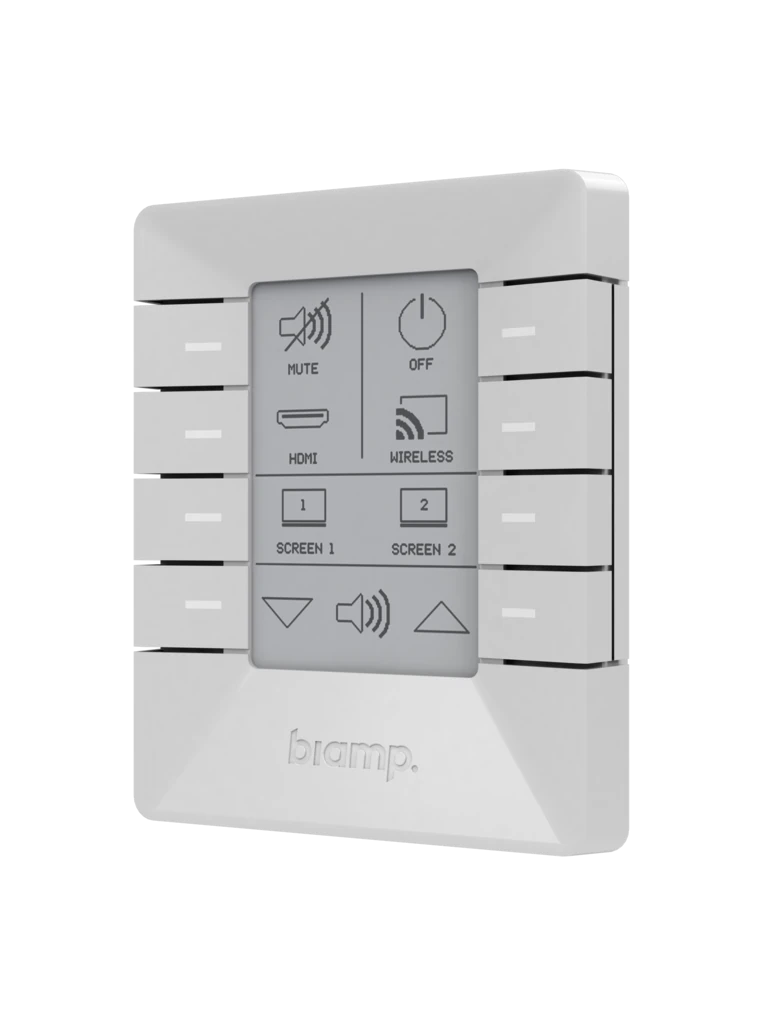

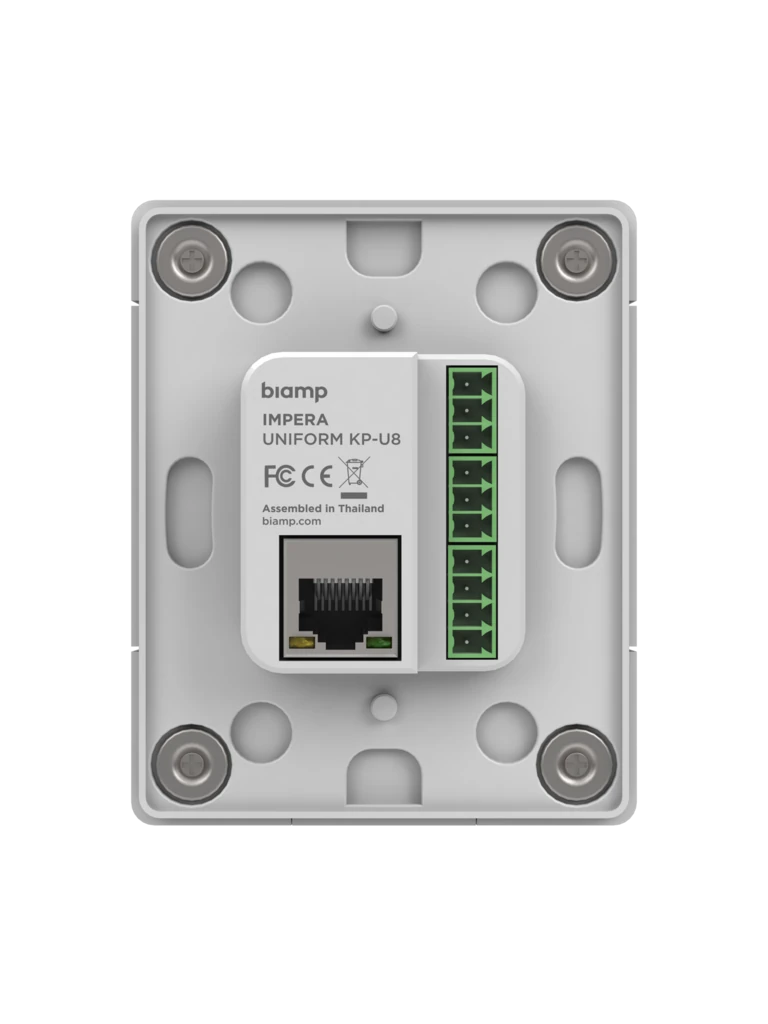

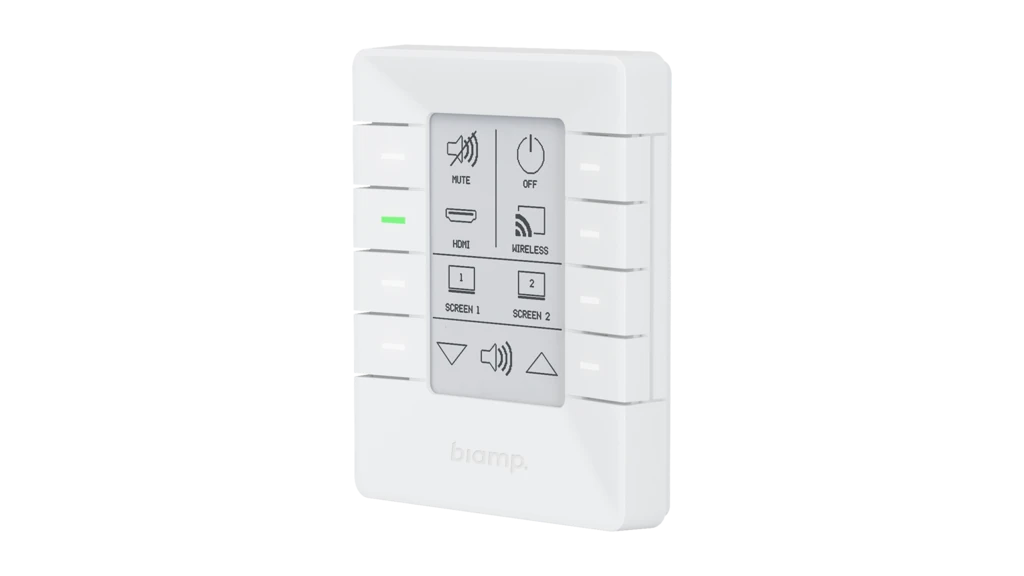

Biamp Impera Uniform 8U Keypad

The Biamp Impera Uniform 8U is a keypad built for system control and user interfaces. Power handling is rated at PoE (IEEE 802.3at Class 1, 4W).

Control connection is Button Quantity: 8; Button Type: Mechanical; LED Indicators: 7 colors; RS-232 / IR; Number of Ports: 1 (bidirectional); 2 (undirectional). Power consumption is < 4W Max. In the box: In-wall mounting bracket; Mounting screws and wall plugs.

Power	PoE (IEEE 802.3at Class 1, 4W)
Control	Control; Button Quantity: 8; Button Type: Mechanical; LED Indicators: 7 colors; RS-232 / IR; Number of Ports: 1 (bidirectional); 2 (undirectional)
Power Consumption	< 4W Max
Included Accessories	In-wall mounting bracket; Mounting screws and wall plugs
Ambient Operating Temperature Range	32 - 104 deg F (0 - 40 deg C)
Humidity	10-90% relative humidity (non-condensing)
Dimensions (H x W x D)	3.7 inches (94 mm) x 3 inches (76 mm) x 0.6 inches (15 mm)
Altitude	0-6,600 ft (0-2000m) MSL
