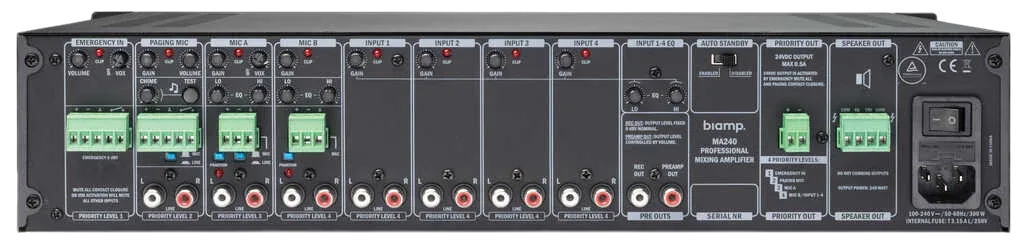

Biamp Commercial Audio MA240 Mixing Amplifier

The Biamp Commercial Audio MA240 is a mixing amplifier built for retail and hospitality installations. Maximum output is 1 Output Connectors: 4-pin, 0.3 inch (7.6 mm) Euroblock 70V/100V Mode: Yes Low Impedance Mode: Yes. Inputs are INPUTS; Number of Inputs; Emergency (line level with contact): 1; Paging Mic (mic level with contact): 1; Mic/Line (balanced): 2.

Nominal impedance is 5 k ohms. Control connection is Chime: Yes; Tone Control: Yes; Wall Panel Controls: Yes; VOX Mute: Yes; Music Level Control: Yes.

Impedance	5 k ohms
Maximum Output	Number of Output Channels: 1 Output Connectors: 4-pin, 0.3 inch (7.6 mm) Euroblock 70V/100V Mode: Yes Low Impedance Mode: Yes; Priority Output Contact: Yes
Input Type	INPUTS; Number of Inputs; Emergency (line level with contact): 1; Paging Mic (mic level with contact): 1; Mic/Line (balanced): 2; Stereo Line (unbalanced): 4
Control	Chime: Yes; Tone Control: Yes; Wall Panel Controls: Yes; VOX Mute: Yes; Music Level Control: Yes
Ambient Operating Temperature Range	32 - 95 deg F (0 - 35 deg C)
Humidity	0-95% relative humidity (non-condensing)
Dimensions (H x W x D)	3.5 inches (89 mm) x 19 inches (483 mm) x 11.8 inches (300 mm)
Altitude	0-6,600 ft (0-2000m) MSL
