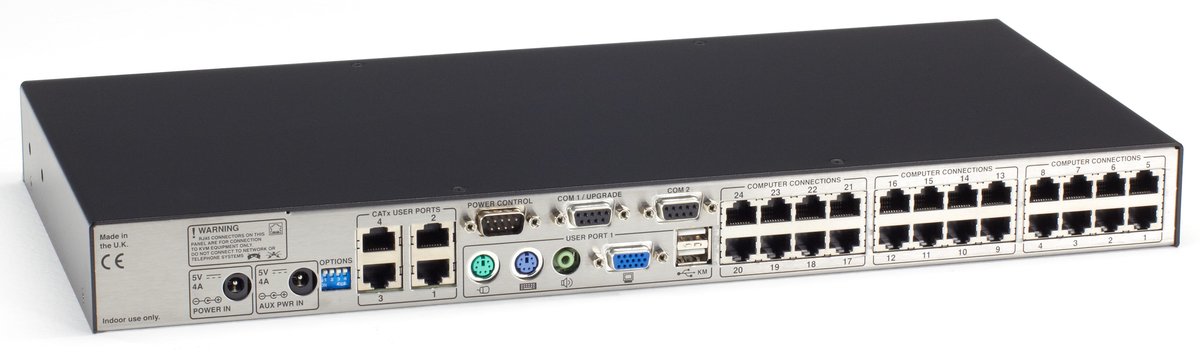

Black Box KV0424A-R2 ServSwitch CX 24-Port CATx KVM Switch, 4 Users

The 24-port CX runs four users - one shared local/extended and three extended - across twenty-four mixed-platform servers over CAT5, CAT5e or CAT6. Each server gets a Server Access Module appropriate to its interface, so PS/2 and USB machines can live on the same switch, and the console side accepts either PS/2 or USB keyboards and mice. DDC emulation is supported.

Users within 164 feet (50 m) get resolutions to 1900 x 1440; at 984 feet (300 m) the switch delivers 1024 x 1280. The power control port lets a remote user reset host power switches, and dual power connectors allow a redundant supply alongside the included adapter. Select servers by on-screen menu, hotkey or mouse. It is cascadable, flash upgradeable, and ships with 19-inch rackmount ears.

Server ports	24
Users	4 total - (1) shared local/extended plus (3) extended
Server connection	CAT5/5e/6 to Server Access Modules (sold separately), PS/2 and USB mixed
Resolution	Up to 1900 x 1440 within 164 ft (50 m); 1024 x 1280 to 984 ft (300 m)
EDID	DDC emulation supported
Power control	Remote host power reset port; dual power connectors for redundancy
Control	On-screen display, hotkeys, mouse; cascadable and flash upgradeable
Ships with	Switch, 5VDC 6A supply, DB9 M/F serial cable, (8) rubber feet, 19-inch rackmount ears and screws
