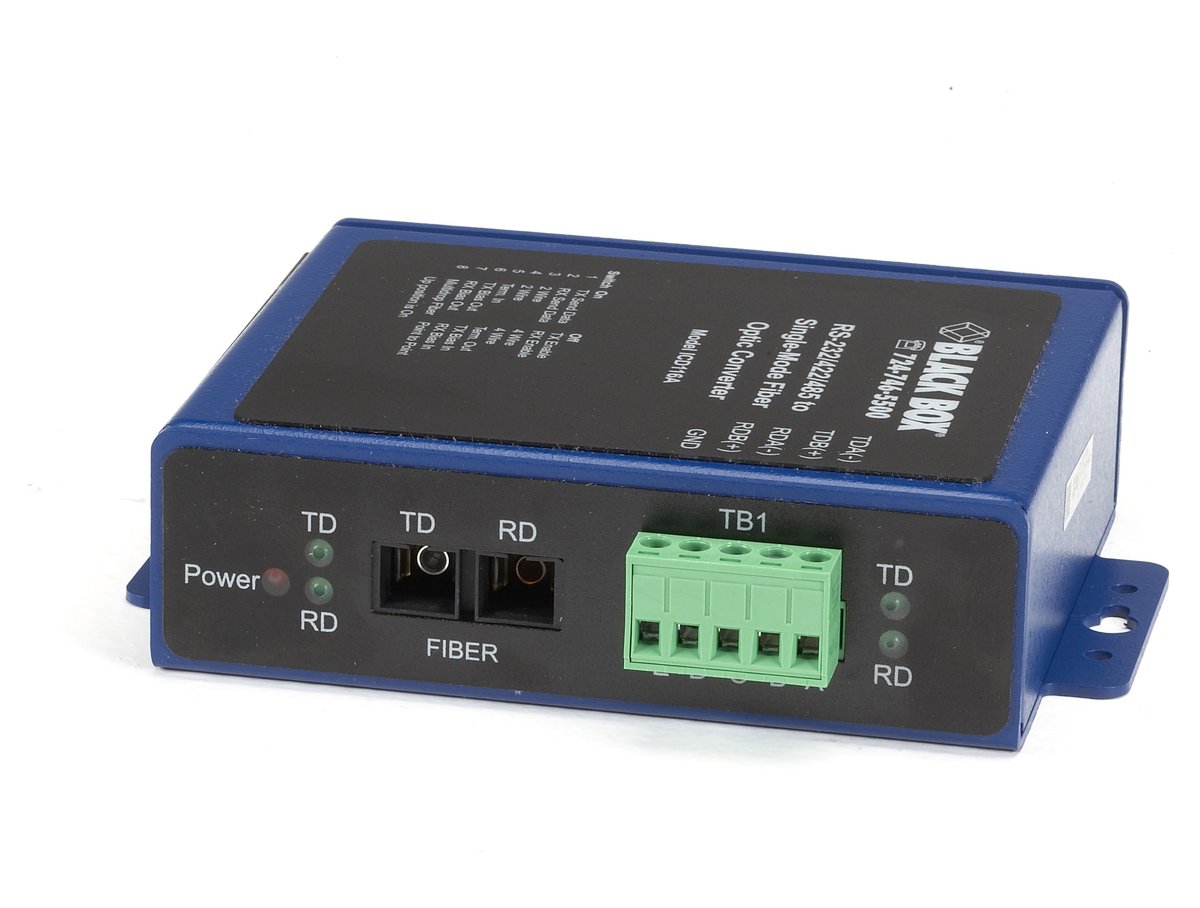

Black Box ICD116A Async RS232/422/485 Extender Over Fiber - Terminal Block to Singlemode SC

The ICD116A handles the serial side of an installation: Terminal Block to Singlemode SC. Distance (Maximum): 15 km (9.3 mi.). Connectors are RS-232/RS-422/RS-485: 5-Position Removable Terminal Block. Tolerates temperatures ranging from -30 to +185 F (-40 to +85 C). Designed to withstand both shock and vibration.

Power: From an external power supply (not included*). It measures 1.3-in. H x 3.7-in. W x 5.2-in. D (3.3 x 9.4 x 13.2-cm) and weighs 0.5-lb. (0.227-kg). Front-panel indication: LEDs: (1) Power, (1) TD (transmit data) on fiber, (1) RD (receive data) on fiber, (1) TD (transmit data) on copper, (1) RD (receive data) on copper.

Data Rate9.6-115.2 kbps
Distance (Maximum)15 km (9.3 mi.)
ConnectorsRS-232/RS-422/RS-485: 5-Position Removable Terminal Block; Fiber: (1) Pair of SC
IndicatorsLEDs: (1) Power, (1) TD (transmit data) on fiber, (1) RD (receive data) on fiber, (1) TD (transmit data) on copper, (1) RD (receive data) on copper
EnclosureIP30 rated metal, panelmount
PowerFrom an external power supply (not included*); Input: 10-48 VDC (56 VDC maximum) on 2-position, removable terminal block; Consumption: 0.9 W typical (2.6 W with termination)
Dimensions1.3-in. H x 3.7-in. W x 5.2-in. D (3.3 x 9.4 x 13.2-cm)
Weight0.5-lb. (0.227-kg)
